Idem 215003: KL3-SS-RR QC-M23 24V std release | Solenoid Locking Switches

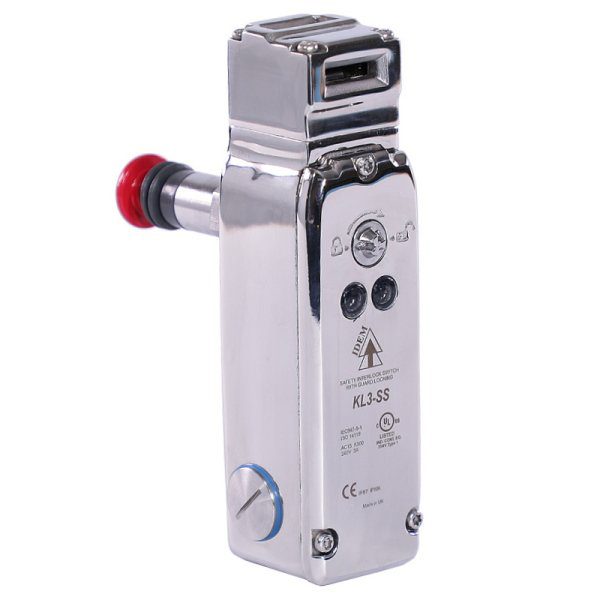

“High-strength 3000N Rear-release Guard Locking Electrical Safety Switch.”
| Attribute | Value |
|---|---|
| Technology: | Power to Unlock |
| Housing Material: | 316 Grade Stainless Steel |
| Approach Speed: | 200mm/m. to 1000mm/s. |
| UL Info: | Where the Risk Assessment for the applicationpermits, a non latching manual escape releaseversion (KL3-SS-RR) enables quick release of theswitch lock in case of emergency. The switch can bemounted such that access to the release button isavailable from inside the active guard area.Pressing and holding the release button will releasethe lock mechanism and open the lock monitoringcontacts, whilst the guard can be pushed open.Measures should be taken to reduce the risk ofimproper activation. |
| Certificates: | cULus |
| Enclosure: | Type 1 |
| Enclosure Protection: | IP67, IP69K |
| Operating Temperature: | -25 … +40 °C |
| Vibration: | IEC 68-2-6, 10-55Hz+1Hz,Excursion 0.35mm, 1 octave/min |
| Fixing: | 4 x M5 |
| Holding Force: | F1Max 3000N. Fzh 2307N. |
| Terminal Torque: | e 6 lb ins. (0.7Nm) |
| Rated Insulation Voltage: | 600VAC |
| Rated Impulse Withstand Volt: | 2500VAC |
| Conduit Entry: | M20 or 1/2 NPT |
| Travel for Positive Opening: | 10mm |
| Solenoid Voltage (by part number): | 24V ac/dc or 110V. ac or 230V. ac +/- 10% (12W.) |
| LED 2 Supply Voltage: | 24V dc +/- 10% |
| Safety Contacts 11/12 21/22: | Utilization Category AC15 A300 3A.Thermal Current (Ith) 5A |
| Auxiliary Contact 33/34 (selectable with LED2): | 24V.ac/dc 0.5A. maximum. |
| Auxiliary Contact 43/44: | 230V.ac/dc 0.5A. maximum. |
| Man. Actuation Frequency: | 2 cycle/sec |
| Actuator entry minimum radius: | 175mm Standard 100mm Flexible |
| Maximum temperature: | +40 °C |
| Overload Protection Fuse (fuse Externally: | 10A. (FF). |
| Product Number | Variant Description |
|---|---|
| 215406HFH | KL3-SS-RR QC-M23 110V lid release HFH actuator |
| 215403F | KL3-SS-RR QC-M23 24V lid release flat actuator |
| 215403HF | KL3-SS-RR QC-M23 24V lid release HF actuator |
| 215403HFH | KL3-SS-RR QC-M23 24V lid release HFH actuator |
| 215009 | KL3-SS-RR QC-M23 230V std release |
| 215009A | KL3-SS-RR QC-M23 230V std release std actuator |
| 215403A | KL3-SS-RR QC-M23 24V lid release std actuator |
| 215009HF | KL3-SS-RR QC-M23 230V std release HF actuator |
| 215409 | KL3-SS-RR QC-M23 230V lid release |
| 215009HFH | KL3-SS-RR QC-M23 230V std release HFH actuator |
| 215409HF | KL3-SS-RR QC-M23 230V lid release HF actuator |
| 215409F | KL3-SS-RR QC-M23 230V lid release flat actuator |
| 215409A | KL3-SS-RR QC-M23 230V lid release std actuator |
| 215406 | KL3-SS-RR QC-M23 110V lid release |
| 215406A | KL3-SS-RR QC-M23 110V lid release std actuator |
| 215406F | KL3-SS-RR QC-M23 110V lid release flat actuator |
| 215406HF | KL3-SS-RR QC-M23 110V lid release HF actuator |
| 215409HFH | KL3-SS-RR QC-M23 230V lid release HFH actuator |
| 215009F | KL3-SS-RR QC-M23 230V std release flat actuator |
| 215403 | KL3-SS-RR QC-M23 24V lid release |
| 215006 | KL3-SS-RR QC-M23 110V std release |
| 215003HF | KL3-SS-RR QC-M23 24V std release HF actuator |
| 215003HFH | KL3-SS-RR QC-M23 24V std release HFH actuator |
| 215003A | KL3-SS-RR QC-M23 24V std release std actuator |
| 215006HFH | KL3-SS-RR QC-M23 110V std release HFH actuator |
| 215006HF | KL3-SS-RR QC-M23 110V std release HF actuator |
| 215006F | KL3-SS-RR QC-M23 110V std release flat actuator |
| 215006A | KL3-SS-RR QC-M23 110V std release std actuator |
| 215003F | KL3-SS-RR QC-M23 24V std release flat actuator |
