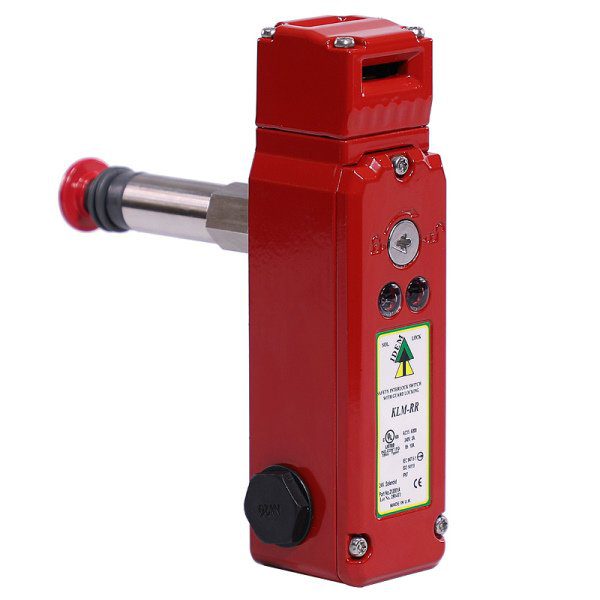

Idem 212002: KLM-RR 1/2″NPT 24V | Solenoid Locking Switches

A robust guard-locking safety switch with 3000N rear release function.

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Technology: Power to Unlock
    Housing Material: Red Painted Die-Cast
    Approach Speed: 200mm/m. to 1000mm/s.
    UL Info: Where the Risk Assessment for the application permits, a non latching manual escape release version (KL3-SS-RR) enables quick release of the switch lock in case of emergency. The switch can be mounted such that access to the release button is available from inside the active guard area. Pressing and holding the release button will release the lock mechanism and open the lock monitoring contacts, whilst the guard can be pushed open. Measures should be taken to reduce the risk of improper activation.
    Certificates: cULus
    Enclosure: Type 1
    Overload Protection Fuse (fuse Externally): 10A. (FF).
    Enclosure Protection: IP67
    Operating Temperature: -25 … +40 °C
    Vibration: IEC 68-2-6, 10-55Hz+1Hz, Excursion 0.35mm, 1 octave/min
    Fixing: 4 x M5
    Holding Force: F1Max 3000N. Fzh 2307N.
    Terminal Torque: e 6 lb ins. (0.7Nm)
    Rated Insulation Voltage: 600VAC
    Rated Impulse Withstand Volt: 2500VAC
    Conduit Entry: M20 or 1/2 NPT
    Travel for Positive Opening: 10mm
    Solenoid Voltage (by part number): 24V ac/dc or 110V. ac or 230V. ac +/- 10% (12W.)
    LED 2 Supply Voltage: 24V dc +/- 10%
    Safety Contacts 11/12 21/22: Utilization Category AC15 A300 3A. Thermal Current (Ith) 5A
    Auxiliary Contact 33/34 (selectable with LED2): 24V.ac/dc 0.5A. maximum
    Auxiliary Contact 43/44: 230V.ac/dc 0.5A. maximum
    Man. Actuation Frequency: 2 cycle/sec
    Actuator entry minimum radius: 175mm Standard 100mm Flexible
    Maximum temperature: +40 °C
    Product Number Variant Description
    212402HFH-SS KLM-RR 1/2″NPT 24V lid release SS head HFH actuator
    212408HFH-SS KLM-RR 1/2″NPT 230V lid release SS Head HFH actuator
    212408HFH KLM-RR 1/2″NPT 230V lid release HFH actuator
    212408HF KLM-RR 1/2″NPT 230V lid release HF actuator
    212002-SS KLM-RR 1/2″NPT 24V SS head
    212402-SS KLM-RR 1/2″NPT 24V lid release SS head
    212408F KLM-RR 1/2″NPT 230V lid release flat actuator
    212408A-SS KLM-RR 1/2″NPT 230V lid release SS Head std actuator
    212408A KLM-RR 1/2″NPT 230V lid release std actuator
    212408 KLM-RR 1/2″NPT 230V lid release
    212402 KLM-RR 1/2″NPT 24V lid release
    212402A KLM-RR 1/2″NPT 24V lid release std actuator
    212402A-SS KLM-RR 1/2″NPT 24V lid release SS head std actuator
    212408HF-SS KLM-RR 1/2″NPT 230V lid release SS Head HF actuator
    212402F KLM-RR 1/2″NPT 24V lid release flat actuator
    212405-SS KLM-RR 1/2″NPT 110V lid release SS Head
    212405HF-SS KLM-RR 1/2″NPT 110V lid release SS Head HF actuator
    212405HFH-SS KLM-RR 1/2″NPT 110V lid release SS Head HFH actuator
    212405HFH KLM-RR 1/2″NPT 110V lid release HFH actuator
    212405HF KLM-RR 1/2″NPT 110V lid release HF actuator
    212405F-SS KLM-RR 1/2″NPT 110V lid release SS Head flat actuator
    212405F KLM-RR 1/2″NPT 110V lid release flat actuator
    212405A-SS KLM-RR 1/2″NPT 110V lid release SS Head std actuator
    212405A KLM-RR 1/2″NPT 110V lid release std actuator
    212405 KLM-RR 1/2″NPT 110V lid release
    212402HF KLM-RR 1/2″NPT 24V lid release HF actuator
    212402HFH KLM-RR 1/2″NPT 24V lid release HFH actuator
    212402F-SS KLM-RR 1/2″NPT 24V lid release SS head flat actuator
    212408-SS KLM-RR 1/2″NPT 230V lid release SS Head
    212408F-SS KLM-RR 1/2″NPT 230V lid release SS Head flat actuator
    212008HFH-SS KLM-RR 1/2″NPT 230V SS Head HFH actuator
    212005-SS KLM-RR 1/2″NPT 110V SS Head
    212005HF-SS KLM-RR 1/2″NPT 110V SS Head HF actuator
    212005HFH-SS KLM-RR 1/2″NPT 110V SS Head HFH actuator
    212005HFH KLM-RR 1/2″NPT 110V HFH actuator
    212002A KLM-RR 1/2″NPT 24V std actuator
    212002A-SS KLM-RR 1/2″NPT 24V SS head std actuator
    212002F KLM-RR 1/2″NPT 24V flat actuator
    212002F-SS KLM-RR 1/2″NPT 24V SS head flat actuator
    212002HF KLM-RR 1/2″NPT 24V HF actuator
    212002HFH KLM-RR 1/2″NPT 24V HFH actuator
    212002HFH-SS KLM-RR 1/2″NPT 24V SS head HFH actuator
    212008HF-SS KLM-RR 1/2″NPT 230V SS Head HF actuator
    212005HF KLM-RR 1/2″NPT 110V HF actuator
    212005F-SS KLM-RR 1/2″NPT 110V SS Head flat actuator
    212002HF-SS KLM-RR 1/2″NPT 24V SS head HF actuator
    212005A-SS KLM-RR 1/2″NPT 110V SS Head std actuator
    212008HFH KLM-RR 1/2″NPT 230V HFH actuator
    212008HF KLM-RR 1/2″NPT 230V HF actuator
    212008F-SS KLM-RR 1/2″NPT 230V SS Head flat actuator
    212005F KLM-RR 1/2″NPT 110V flat actuator
    212008A-SS KLM-RR 1/2″NPT 230V SS Head std actuator
    212008A KLM-RR 1/2″NPT 230V std actuator
    212008-SS KLM-RR 1/2″NPT 230V SS Head
    212008F KLM-RR 1/2″NPT 230V flat actuator
    212005 KLM-RR 1/2″NPT 110V
    212005A KLM-RR 1/2″NPT 110V std actuator
    212008 KLM-RR 1/2″NPT 230V
    212402HF-SS KLM-RR 1/2″NPT 24V lid release SS head HF actuator
