Idem 212001: KLM-RR M20 24V | Safety Switch Accessories

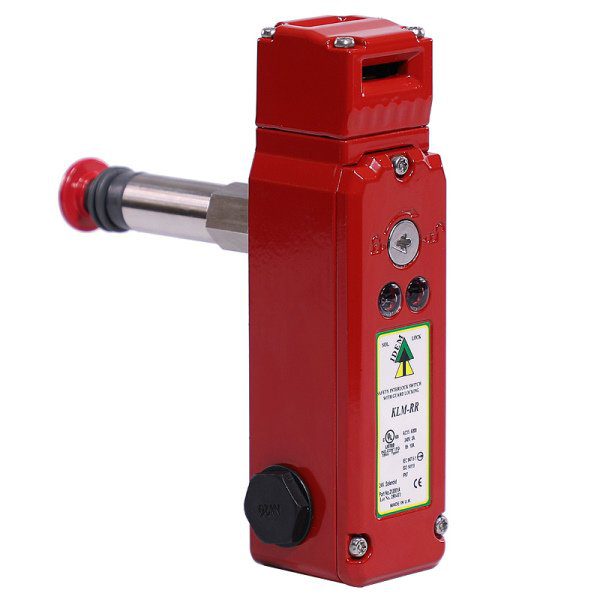

“Robust, secure guard locking safety switch, rear-release, 3000N capacity.”

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Technology: Power to Unlock
    Housing Material: Red Painted Die-Cast
    Approach Speed: 200mm/m. to 1000mm/s.
    UL Info: Where the Risk Assessment for the application permits, a non latching manual escape release version (KL3-SS-RR) enables quick release of the switch lock in case of emergency. The switch can be mounted such that access to the release button is available from inside the active guard area. Pressing and holding the release button will release the lock mechanism and open the lock monitoring contacts, whilst the guard can be pushed open. Measures should be taken to reduce the risk of improper activation.
    Certificates: cULus
    Enclosure: Type 1
    Overload Protection Fuse (fuse Externally): 10A. (FF).
    Enclosure Protection: IP67
    Operating Temperature: -25 … +40 °C
    Vibration: IEC 68-2-6, 10-55Hz+1Hz, Excursion 0.35mm, 1 octave/min
    Fixing: 4 x M5
    Holding Force: F1Max 3000N. Fzh 2307N.
    Terminal Torque: e 6 lb ins. (0.7Nm)
    Rated Insulation Voltage: 600VAC
    Rated Impulse Withstand Volt: 2500VAC
    Conduit Entry: M20 or 1/2 NPT
    Travel for Positive Opening: 10mm
    Solenoid Voltage (by part number): 24V ac/dc or 110V. ac or 230V. ac +/- 10% (12W.)
    LED 2 Supply Voltage: 24V dc +/- 10%
    Safety Contacts 11/12 21/22: Utilization Category AC15 A300 3A. Thermal Current (Ith) 5A
    Auxiliary Contact 33/34 (selectable with LED2): 24V.ac/dc 0.5A. maximum
    Auxiliary Contact 43/44: 230V.ac/dc 0.5A. maximum
    Man. Actuation Frequency: 2 cycle/sec
    Actuator entry minimum radius: 175mm Standard 100mm Flexible
    Maximum temperature: +40 °C
    Product Number Variant Description
    212401F KLM-RR M20 24V lid release flat actuator
    212004 KLM-RR M20 110V
    212004A KLM-RR M20 110V std actuator
    212004A-SS KLM-RR M20 110V SS head std actuator
    212004F KLM-RR M20 110V flat actuator
    212004F-SS KLM-RR M20 110V SS head flat actuator
    212004HF KLM-RR M20 110V HF actuator
    212004HFH KLM-RR M20 110V HFH actuator
    212004HFH-SS KLM-RR M20 110V SS head HFH actuator
    212004HF-SS KLM-RR M20 110V SS head HF actuator
    212004-SS KLM-RR M20 110V SS head
    212007-SS KLM-RR M20 230V SS Head
    212007HF-SS KLM-RR M20 230V SS Head HF actuator
    212007HFH KLM-RR M20 230V HFH actuator
    212001-140MM KLM-RR M20 24V 140MM RR
    212001A-SS KLM-RR M20 24V SS head std actuator
    212001F KLM-RR M20 24V flat actuator
    212001-SS KLM-RR M20 24V SS head
    212001HF-SS KLM-RR M20 24V SS head HF actuator
    212001HFH-SS KLM-RR M20 24V SS head HFH actuator
    212001HFH KLM-RR M20 24V HFH actuator
    212007 KLM-RR M20 230V
    212007A KLM-RR M20 230V std actuator
    212007A-SS KLM-RR M20 230V SS Head std actuator
    212007F KLM-RR M20 230V flat actuator
    212007F-SS KLM-RR M20 230V SS Head flat actuator
    212007HF KLM-RR M20 230V HF actuator
    212001A KLM-RR M20 24V std actuator
    212401F-SS KLM-RR M20 24V lid release SS head flat actuator
    212407-SS KLM-RR M20 230V lid release SS Head
    212407HFH-SS KLM-RR M20 230V lid release SS Head HFH actuator
    212401A-SS KLM-RR M20 24V lid release SS head std actuator
    212401A KLM-RR M20 24V lid release std actuator
    212401 KLM-RR M20 24V lid release
    212401HF KLM-RR M20 24V lid release HF actuator
    212401HFH KLM-RR M20 24V lid release HFH actuator
    212401HFH-SS KLM-RR M20 24V lid release SS head HFH actuator
    212401HF-SS KLM-RR M20 24V lid release SS head HF actuator
    212401-SS KLM-RR M20 24V lid release SS head
    212001F-SS KLM-RR M20 24V SS head flat actuator
    212404 KLM-RR M20 110V lid release
    212404A KLM-RR M20 110V lid release std actuator
    212404A-SS KLM-RR M20 110V lid release SS head std actuator
    212407HF-SS KLM-RR M20 230V lid release SS Head HF actuator
    212404F KLM-RR M20 110V lid release flat actuator
    212404HF KLM-RR M20 110V lid release HF actuator
    212404HFH KLM-RR M20 110V lid release HFH actuator
    212404HFH-SS KLM-RR M20 110V lid release SS head HFH actuator
    212404HF-SS KLM-RR M20 110V lid release SS head HF actuator
    212404-SS KLM-RR M20 110V lid release SS head
    212407 KLM-RR M20 230V lid release
    212407A KLM-RR M20 230V lid release std actuator
    212407A-SS KLM-RR M20 230V lid release SS Head std actuator
    212407F KLM-RR M20 230V lid release flat actuator
    212407F-SS KLM-RR M20 230V lid release SS Head flat actuator
    212407HF KLM-RR M20 230V lid release HF actuator
    212407HFH KLM-RR M20 230V lid release HFH actuator
    212404F-SS KLM-RR M20 110V lid release SS head flat actuator
    212001HF KLM-RR M20 24V HF actuator
    212007HFH-SS KLM-RR M20 230V SS Head HFH actuator
