209003 KL4-SS QC-M23 24V std release
209003 KL4-SS QC-M23 24V std release
209002 KL4-SS 1/2"NPT 24V std release Idem 209002: KL4-SS 1/2″NPT 24V std release | Solenoid Locking Switches
209301 KL4-SS M20 24V no release Idem 209301: KL4-SS M20 24V no release | Solenoid Locking Switches

Idem 209003: KL4-SS QC-M23 24V std release | Solenoid Locking Switches

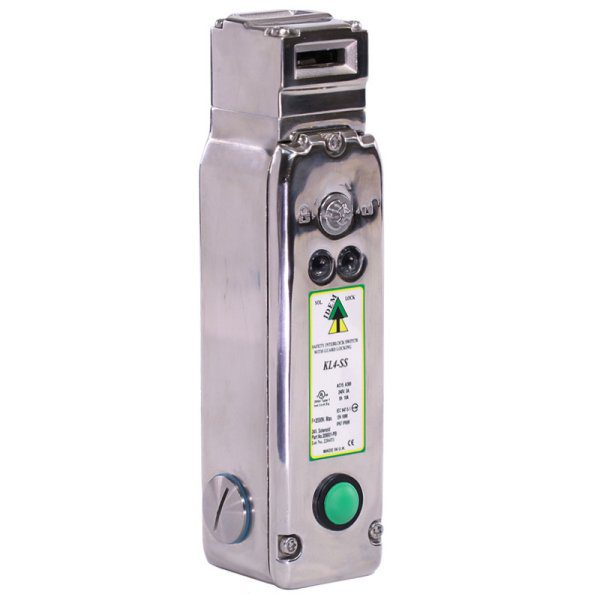

“Pushbutton Guard Locking Safety Switch supporting force up to 3000N.”

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Technology: Power to Unlock
    Housing Material: 316 Grade Stainless Steel
    Approach Speed: 200mm/m. to 1000mm/s.
    Certificates: cULus
    Enclosure: Type 1
    Overload Protection Fuse (fuse Externally): 10A. (FF).
    Enclosure Protection: IP67, IP69K
    Operating Temperature: -25 … +40 °C
    Vibration: IEC 68-2-6, 10-55Hz+1Hz, Excursion 0.35mm, 1 octave/min
    Fixing: 4 x M5
    Holding Force: F1Max 3000N. Fzh 2307N
    Terminal Torque: e 6 lb ins. (0.7Nm)
    Rated Insulation Voltage: 600VAC
    Rated Impulse Withstand Volt: 2500VAC
    Conduit Entry: M20 or 1/2 NPT
    Travel for Positive Opening: 10mm
    Solenoid Voltage (by part number): 24V ac/dc or 110V. ac or 230V. ac +/- 10% (12W.)
    LED 2 Supply Voltage: 24V dc +/- 10%
    Safety Contacts 11/12 21/22: Utilization Category AC15 A300 3A. Thermal Current (Ith) 5A
    Auxiliary Contact 33/34 (selectable with LED2): 24V.ac/dc 0.5A. maximum.
    Auxiliary Contact 43/44: 230V.ac/dc 0.5A. maximum.
    Man. Actuation Frequency: 2 cycle/sec
    Actuator entry minimum radius: 175mm Standard 100mm Flexible
    Maximum temperature: +40 °C
    Product Number Variant Description
    209403HFH-PB KL4-SS QC-M23 24V P Button Release Lid Only & HFH Act
    209006A KL4-SS QC-M23 110V std release Std Act
    209006A-PB KL4-SS QC-M23 110V P Button Std Act
    209406 KL4-SS QC-M23 110V lid release
    209006F KL4-SS QC-M23 110V std release Flat Act
    209406A KL4-SS QC-M23 110V lid release Std Act
    209403A KL4-SS QC-M23 24V lid release Std Act
    209006HFH-PB KL4-SS QC-M23 110V P Button & HFH Act
    209403A-PB KL4-SS QC-M23 24V P Button Release Lid Only Std Act
    209006F-PB KL4-SS QC-M23 110V P Button & Flat Act
    209006HF KL4-SS QC-M23 110V std release HF Act
    209403HFH KL4-SS QC-M23 24V lid release HFH Act
    209006HFH KL4-SS QC-M23 110V std release HFH Act
    209403HF KL4-SS QC-M23 24V lid release HF Act
    209406A-PB KL4-SS QC-M23 110V P Button Release Lid Only Std Ac
    209403F-PB KL4-SS QC-M23 24V P Button Release Lid Only & Flat Ac
    209403F KL4-SS QC-M23 24V lid release Flat Act
    209006 KL4-SS QC-M23 110V std release
    209403 KL4-SS QC-M23 24V lid release
    209006HF-PB KL4-SS QC-M23 110V P Button & HF Act
    209406F KL4-SS QC-M23 110V lid release Flat Act
    209403-PB KL4-SS QC-M23 24V P Button Release Lid Only
    209006-PB KL4-SS QC-M23 110V P Button
    209409HFH-PB KL4-SS QC-M23 230V P Button Release Lid Only & HFH Act
    209409HF-PB KL4-SS QC-M23 230V P Button Release Lid Only & HF Act
    209409-PB KL4-SS QC-M23 230V P Button Release Lid Only
    209003A KL4-SS QC-M23 24V std release Std Act
    209003A-PB KL4-SS QC-M23 24V P Button Std Act
    209003F KL4-SS QC-M23 24V std release Flat Act
    209003F-PB KL4-SS QC-M23 24V P Button & Flat Act
    209003HF KL4-SS QC-M23 24V std release HF Act
    209003HFH KL4-SS QC-M23 24V std release HFH Act
    209009-PB KL4-SS QC-M23 230V P Button
    209406F-PB KL4-SS QC-M23 110V P Button Release Lid Only & F Act
    209009HF-PB KL4-SS QC-M23 230V P Button & HF Act
    209009HFH KL4-SS QC-M23 230V std release HFH Act
    209009HF KL4-SS QC-M23 230V std release HF Act
    209009F-PB KL4-SS QC-M23 230V P Button & Flat Act
    209009F KL4-SS QC-M23 230V std release Flat Act
    209009A-PB KL4-SS QC-M23 230V P Button Std Act
    209009A KL4-SS QC-M23 230V std release Std Act
    209009 KL4-SS QC-M23 230V std release
    209003HFH-PB KL4-SS QC-M23 24V P Button & HFH Act
    209003HF-PB KL4-SS QC-M23 24V P Button & HF Act
    209003-PB KL4-SS QC-M23 24V P Button
    209009HFH-PB KL4-SS QC-M23 230V P Button & HFH Act
    209409HF KL4-SS QC-M23 230V lid release HF Act
    209409HFH KL4-SS QC-M23 230V lid release HFH Act
    209409F KL4-SS QC-M23 230V lid release Flat Act
    209406-PB KL4-SS QC-M23 110V P Button Release Lid Only
    209406HF-PB KL4-SS QC-M23 110V P Button Release Lid Only & HF Act
    209406HFH-PB KL4-SS QC-M23 110V P Button Release Lid Only & HFH Ac
    209406HFH KL4-SS QC-M23 110V lid release HFH Act
    209406HF KL4-SS QC-M23 110V lid release HF Act
    209403HF-PB KL4-SS QC-M23 24V P Button Release Lid Only & HF Act
    209409 KL4-SS QC-M23 230V lid release
    209409A KL4-SS QC-M23 230V lid release Std Act
    209409A-PB KL4-SS QC-M23 230V P Button Release Lid Only Std Act
    209409F-PB KL4-SS QC-M23 230V P Button Release Lid Only & Flat Ac
