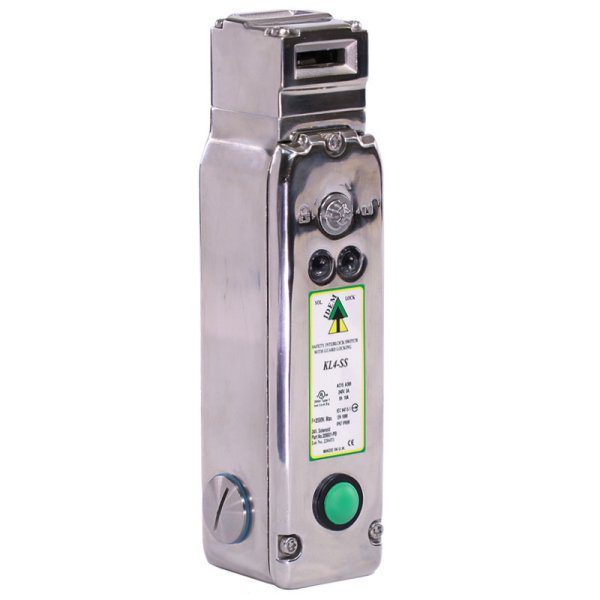

Idem 209002: KL4-SS 1/2″NPT 24V std release | Solenoid Locking Switches
$960.00
“Robust guard locking safety switch with 3000N pushbutton force.”
| Attribute | Value |
|---|---|
| Technology: | Power to Unlock |
| Housing Material: | 316 Grade Stainless Steel |
| Approach Speed: | 200mm/m. to 1000mm/s. |
| Certificates: | cULus |
| Enclosure: | Type 1 |
| Overload Protection Fuse (fuse Externally): | 10A. (FF). |
| Enclosure Protection: | IP67, IP69K |
| Operating Temperature: | -25 … +40 °C |
| Vibration: | IEC 68-2-6, 10-55Hz+1Hz, Excursion 0.35mm, 1 octave/min |
| Fixing: | 4 x M5 |
| Holding Force: | F1Max 3000N. Fzh 2307N |
| Terminal Torque: | e 6 lb ins. (0.7Nm) |
| Rated Insulation Voltage: | 600VAC |
| Rated Impulse Withstand Volt: | 2500VAC |
| Conduit Entry: | M20 or 1/2 NPT |
| Travel for Positive Opening: | 10mm |
| Solenoid Voltage (by part number): | 24V ac/dc or 110V. ac or 230V. ac +/- 10% (12W.) |
| LED 2 Supply Voltage: | 24V dc +/- 10% |
| Safety Contacts 11/12 21/22: | Utilization Category AC15 A300 3A. Thermal Current (Ith) 5A |
| Auxiliary Contact 33/34 (selectable with LED2): | 24V.ac/dc 0.5A. maximum. |
| Auxiliary Contact 43/44: | 230V.ac/dc 0.5A. maximum. |
| Man. Actuation Frequency: | 2 cycle/sec |
| Actuator entry minimum radius: | 175mm Standard 100mm Flexible |
| Maximum temperature: | +40 °C |
| Product Number | Variant Description |
|---|---|
| 209405-PB | KL4-SS 1/2″NPT 110V With P Button Release Lid Only |
| 209405HF-PB | KL4-SS 1/2″NPT 110V P Button Release Lid Only & HF Act |
| 209405HFH-PB | KL4-SS 1/2″NPT 110V P Button Release Lid Only & HFH Act |
| 209402HFH-PB | KL4-SS 1/2″NPT 24V P Button Release Lid Only & HFH Act |
| 209402HF-PB | KL4-SS 1/2″NPT 24V P Button Release Lid Only & HF Act |
| 209405-HFH | KL4-SS 1/2″NPT 110V lid release HFH Act |
| 209402-PB | KL4-SS 1/2″NPT 24V P Button Release Lid Only |
| 209405-A | KL4-SS 1/2″NPT 110V lid release Std Act |
| 209005-F | KL4-SS 1/2″NPT 110V std release Flat Act |
| 209005A-PB | KL4-SS 1/2″NPT 110V P Button Std Act |
| 209405-HF | KL4-SS 1/2″NPT 110V lid release HF Act |
| 209405F-PB | KL4-SS 1/2″NPT 110V P Button Release Lid Only & Flat Act |
| 209405-F | KL4-SS 1/2″NPT 110V lid release Flat Act |
| 209402-HFH | KL4-SS 1/2″NPT 24V lid release HFH Act |
| 209005-A | KL4-SS 1/2″NPT 110V std release Std Act |
| 209005 | KL4-SS 1/2″NPT 110V std release |
| 209405A-PB | KL4-SS 1/2″NPT 110V P Button Release Lid Only Std Act |
| 209405 | KL4-SS 1/2″NPT 110V lid release |
| 209402-HF | KL4-SS 1/2″NPT 24V lid release HF Act |
| 209008HF | KL4-SS 1/2″NPT 230V std release HF Act |
| 209402-F | KL4-SS 1/2″NPT 24V lid release Flat Act |
| 209008F-PB | KL4-SS 1/2″NPT 230V P Button & Flat Act |
| 209008F | KL4-SS 1/2″NPT 230V std release Flat Act |
| 209008A-PB | KL4-SS 1/2″NPT 230V P Button Std Act |
| 209008HFH-PB | KL4-SS 1/2″NPT 230V P Button & HFH Act |
| 209008HF-PB | KL4-SS 1/2″NPT 230V P Button & HF Act |
| 209008-PB | KL4-SS 1/2″NPT 230V P Button |
| 209002-PB | KL4-SS 1/2″NPT 24V P Button |
| 209008A | KL4-SS 1/2″NPT 230V std release Std Act |
| 209402F-PB | KL4-SS 1/2″NPT 24V P Button Release Lid Only & Flat Act |
| 209008HFH | KL4-SS 1/2″NPT 230V std release HFH Act |
| 209005HF-PB | KL4-SS 1/2″NPT 110V P Button & HF Act |
| 209005HFH-PB | KL4-SS 1/2″NPT 110V P Button & HFH Act |
| 209005-HFH | KL4-SS 1/2″NPT 110V std release HFH Act |
| 209005-HF | KL4-SS 1/2″NPT 110V std release HF Act |
| 209005F-PB | KL4-SS 1/2″NPT 110V P Button & Flat Act |
| 209402 | KL4-SS 1/2″NPT 24V lid release |
| 209402-A | KL4-SS 1/2″NPT 24V lid release Std Act |
| 209402A-PB | KL4-SS 1/2″NPT 24V P Button Release Lid Only Std Act |
| 209005-PB | KL4-SS 1/2″NPT 110V P Button |
| 209008 | KL4-SS 1/2″NPT 230V std release |
| 209002HF-PB | KL4-SS 1/2″NPT 24V P Button & HF Act |
| 209408F-PB | KL4-SS 1/2″NPT 230V P Button Release Lid Only & Flat Act |
| 209408A | KL4-SS 1/2″NPT 230V lid release Std Act |
| 209408A-PB | KL4-SS 1/2″NPT 230V P Button Release Lid Only & Std Act |
| 209408F | KL4-SS 1/2″NPT 230V lid release Flat Act |
| 209408HF | KL4-SS 1/2″NPT 230V lid release HF Act |
| 209408HFH | KL4-SS 1/2″NPT 230V lid release HFH Act |
| 209408HFH-PB | KL4-SS 1/2″NPT 230V P Button Release Lid Only & HFH Act |
| 209408HF-PB | KL4-SS 1/2″NPT 230V P Button Release Lid Only & HF Act |
| 209002A-PB | KL4-SS 1/2″NPT 24V P Button Std Act |
| 209002-A | KL4-SS 1/2″NPT 24V std release Std Act |
| 209002F-PB | KL4-SS 1/2″NPT 24V P Button & Flat Act |
| 209002-HF | KL4-SS 1/2″NPT 24V std release HF Act |
| 209002-HFH | KL4-SS 1/2″NPT 24V std release HFH Act |
| 209002HFH-PB | KL4-SS 1/2″NPT 24V P Button & HFH Act |
| 209408-PB | KL4-SS 1/2″NPT 230V P Button Release Lid Only |
| 209002-F | KL4-SS 1/2″NPT 24V std release Flat Act |
| 209408 | KL4-SS 1/2″NPT 230V lid release |
