209001 KL4-SS M20 24V std release
209001 KL4-SS M20 24V std release
208019 K-SS-Ex 2NC 3M Idem 208019: K-SS-Ex 2NC 3M | Tongue Interlock Switches
210003 GBA-1 Gate Bolt Tongue Left Hand KM Idem 210003: GBA-1 Gate Bolt Tongue Left Hand KM | Tongue Interlock Switches

Idem 209001: KL4-SS M20 24V std release | Tongue Interlock Switches

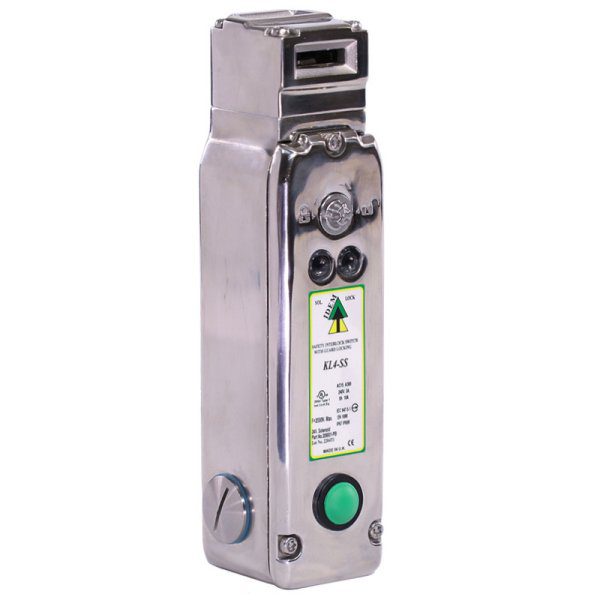

“Powerful 3000N safety switch with pushbutton, featuring guard locking.”

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Technology: Power to Unlock
    Housing Material: 316 Grade Stainless Steel
    Approach Speed: 200mm/m. to 1000mm/s.
    Certificates: cULus
    Enclosure: Type 1
    Overload Protection Fuse (fuse Externally): 10A. (FF).
    Enclosure Protection: IP67, IP69K
    Operating Temperature: -25 … +40 °C
    Vibration: IEC 68-2-6, 10-55Hz+1Hz, Excursion 0.35mm, 1 octave/min
    Fixing: 4 x M5
    Holding Force: F1Max 3000N. Fzh 2307N
    Terminal Torque: e 6 lb ins. (0.7Nm)
    Rated Insulation Voltage: 600VAC
    Rated Impulse Withstand Volt: 2500VAC
    Conduit Entry: M20 or 1/2 NPT
    Travel for Positive Opening: 10mm
    Solenoid Voltage (by part number): 24V ac/dc or 110V. ac or 230V. ac +/- 10% (12W.)
    LED 2 Supply Voltage: 24V dc +/- 10%
    Safety Contacts 11/12 21/22: Utilization Category AC15 A300 3A. Thermal Current (Ith) 5A
    Auxiliary Contact 33/34 (selectable with LED2): 24V.ac/dc 0.5A. maximum.
    Auxiliary Contact 43/44: 230V.ac/dc 0.5A. maximum.
    Man. Actuation Frequency: 2 cycle/sec
    Actuator entry minimum radius: 175mm Standard 100mm Flexible
    Maximum temperature: +40 °C
    Product Number Variant Description
    209004 KL4-SS M20 110V std release
    209004A KL4-SS M20 110V std release Std Act
    209004A-PB KL4-SS M20 110V P Button & Std Act
    209401F-PB KL4-SS M20 24V P Button Release Lid Only & Flat Act
    209401-A KL4-SS M20 24V lid release Std Act
    209404A-PB KL4-SS M20 110V P Button Release Lid Only Std Act
    209404F KL4-SS M20 110V lid release Flat Act
    209404F-PB KL4-SS M20 110V P Button Release Lid Only & Flat Act
    209404HF KL4-SS M20 110V lid release HF Act
    209404HFH KL4-SS M20 110V lid release HFH Act
    209404HFH-PB KL4-SS M20 110V P Button Release Lid Only & HFH Act
    209404HF-PB KL4-SS M20 110V P Button Release Lid Only & HF Act
    209404-PB KL4-SS M20 110V P Button Release Lid Only
    209001HFH-PB KL4-SS M20 24V P Button & HFH Act
    209001HF-PB KL4-SS M20 24V P Button & HF Act
    209001-PB KL4-SS M20 24V P Button
    209407 KL4-SS M20 230V lid release
    209407A KL4-SS M20 230V lid release Std Act
    209407A-PB KL4-SS M20 230V P Button Release Lid Only Std Act
    209407F KL4-SS M20 230V lid release Flat Act
    209404A KL4-SS M20 110V lid release Std Act
    209401 KL4-SS M20 24V lid release
    209404 KL4-SS M20 110V lid release
    209001HF KL4-SS M20 24V std release HF Act
    209401A-PB KL4-SS M20 24V P Button Release Lid Only Std Act
    209401-F KL4-SS M20 24V lid release Flat Act
    209004F KL4-SS M20 110V std release Flat Act
    209401HF KL4-SS M20 24V lid release HF Act
    209401-HFH KL4-SS M20 24V lid release HFH Act
    209401HFH-PB KL4-SS M20 24V P Button Release Lid Only & HFH Act
    209401HF-PB KL4-SS M20 24V P Button Release Lid Only & HF Act
    209401-PB KL4-SS M20 24V P Button Manual Release Lid Only
    209407-PB KL4-SS M20 230V P Button Release Lid Only
    209407HF-PB KL4-SS M20 230V P Button Release Lid Only & HF Act
    209407HFH-PB KL4-SS M20 230V P Button Release Lid Only & HFH Act
    209001-A KL4-SS M20 24V std release Std Act
    209001A-PB KL4-SS M20 24V P Button Std Act
    209001-F KL4-SS M20 24V std release Flat Act
    209001F-PB KL4-SS M20 24V P Button & Flat Act
    209001-HFH KL4-SS M20 24V std release HFH Act
    209004F-PB KL4-SS M20 110V P Button & Flat Act
    209407F-PB KL4-SS M20 230V P Button Release Lid Only & Flat Act
    209007A KL4-SS M20 230V std release Std Act
    209004-PB KL4-SS M20 110V P Button
    209004HF KL4-SS M20 110V std release HF Act
    209004HFH KL4-SS M20 110V std release HFH Act
    209004HFH-PB KL4-SS M20 110V P Button & HFH Act
    209004HF-PB KL4-SS M20 110V P Button & HF Act
    209407HF KL4-SS M20 230V lid release HF Act
    209007F-PB KL4-SS M20 230V P Button & Flat Act
    209407HFH KL4-SS M20 230V lid release HFH Act
    209007A-PB KL4-SS M20 230V P Button Std Act
    209007 KL4-SS M20 230V std release
    209007HF KL4-SS M20 230V std release HF Act
    209007HFH KL4-SS M20 230V std release HFH Act
    209007HFH-PB KL4-SS M20 230V P Button & HFH Act
    209007HF-PB KL4-SS M20 230V P Button & HF Act
    209007-PB KL4-SS M20 230V P Button
    209007F KL4-SS M20 230V std release Flat Act
