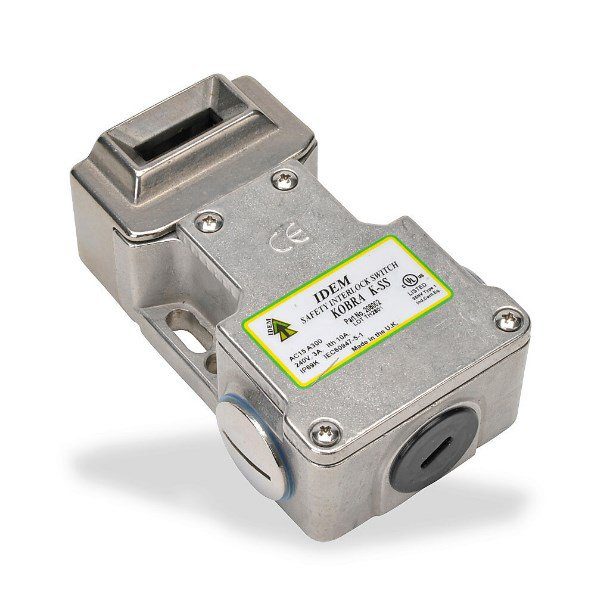

Idem 208013: K-SS 4NC M20 | Tongue Interlock Switches
$338.00
“Reliable safety switch ensuring secure, uninterrupted electrical connections.”
| Attribute | Value |
|---|---|
| Technology: | Tongue Interlock (Non Locking) |
| Housing Material: | 316 Grade Stainless Steel |
| Certificates: | cULus |
| Enclosure: | Type 1 |
| Contact Configuration: | 4NC, 3 NC + 1 NO, 2NC + 2NO or 2 NC + 1 NO |
| Thermal Current (lth): | 10A |
| Rated Insulation/Withstand Voltages: | 600VAC/2500VAC |
| Actuator Travel/Force for Positive Opening: | 6mm/12N |
| Actuator Entry Minimum Radius: | 175mm Standard 100mm Flexible |
| Maximum Approach Withdrawal Speed: | 600mm/s |
| Enclosure Protection: | IP67, IP69K (QC versions IP67 on connector) |
| Operating Temperature: | -25 … +80 °C (105 °C for CIP/SIP Cleaning) |
| Vibration: | IEC 68-2-6 10-55Hz+1Hz Excursion 0.35mm, 1 octave/min |
| Fixing: | 2 x M4 |
| Electrical Rating: | Pilot Duty A300 240V.ac 3A. 6,000 cycles |
| Conduit Entry: | M20 or 1/2 NPT |
| Maximum ambient temperature: | +80 °C |
| Product Number | Variant Description |
|---|---|
| 208015HF | K-SS 4NC QC-M23 12way HF actuator |
| 208015F | K-SS 4NC QC-M23 12way flat actuator |
| 208015A | K-SS 4NC QC-M23 12way std actuator |
| 208015PF | K-SS 4NC QC-M23 12way PF actuator |
| 208015HFH | K-SS 4NC QC-M23 12way HFH actuator |
| 208015 | K-SS 4NC QC-M23 12way |
| 208014HFH | K-SS 4NC 1/2″NPT HFH actuator |
| 208014HF | K-SS 4NC 1/2″NPT HF actuator |
| 208014F | K-SS 4NC 1/2″NPT flat actuator |
| 208014A | K-SS 4NC 1/2″NPT std actuator |
| 208014 | K-SS 4NC 1/2″NPT |
| 208013PF | K-SS 4NC M20 PF actuator |
| 208013HFH | K-SS 4NC M20 HFH actuator |
| 208013HF | K-SS 4NC M20 HF actuator |
| 208013F | K-SS 4NC M20 flat actuator |
| 208013A | K-SS 4NC M20 std actuator |
| 208014PF | K-SS 4NC 1/2″NPT PF actuator |
