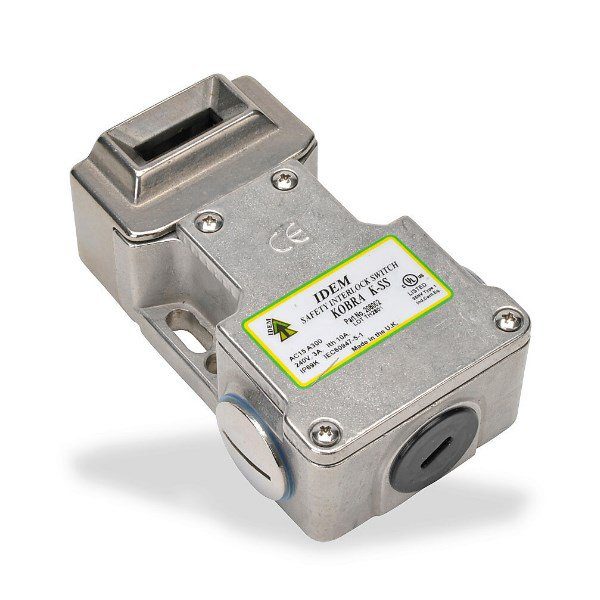

Idem 208004: K-SS 3NC M20 | Tongue Interlock Switches

“Robust safety switch ensuring electrical interlocking with tongue mechanism.”

Request a quote

    Attribute Value
    Technology: Tongue Interlock (Non Locking)
    Housing Material: 316 Grade Stainless Steel
    Certificates: cULus
    Enclosure: Type 1
    Contact Configuration: 4NC, 3 NC + 1 NO, 2NC + 2NO or 2 NC + 1 NO
    Thermal Current (lth): 10A
    Rated Insulation/Withstand Voltages: 600VAC/2500VAC
    Actuator Travel/Force for Positive Opening: 6mm/12N
    Actuator Entry Minimum Radius: 175mm Standard 100mm Flexible
    Maximum Approach Withdrawal Speed: 600mm/s
    Enclosure Protection: IP67, IP69K (QC versions IP67 on connector)
    Operating Temperature: -25 … +80 °C (105 °C for CIP/SIP Cleaning)
    Vibration: IEC 68-2-6 10-55Hz+1Hz Excursion 0.35mm, 1 octave/min
    Fixing: 2 x M4
    Electrical Rating: Pilot Duty A300 240V.ac 3A. 6,000 cycles
    Conduit Entry: M20 or 1/2 NPT
    Maximum ambient temperature: +80 °C
    Product Number Variant Description
    208022HF K-SS 3NC QC-M12 8way HF Actuator
    208008A K-SS 3NC 1NO 1/2″NPT std actuator
    208009HF K-SS 3NC 1NO QC-M23 12way HF actuator
    208007HFH K-SS 3NC 1NO M20 HFH actuator
    208007PF K-SS 3NC 1NO M20 PF actuator
    208022PF K-SS 3NC QC-M12 8way PF actuator
    208022HFH K-SS 3NC QC-M12 8way HFH Actuator
    208009 K-SS 3NC 1NO QC-M23 12way
    208022F K-SS 3NC QC-M12 8way flat actuator
    208022A K-SS 3NC QC-M12 8way std actuator
    208022 K-SS 3NC QC-M12 8way
    208009PF K-SS 3NC 1NO QC-M23 12way PF actuator
    208009HFH K-SS 3NC 1NO QC-M23 12way HFH actuator
    208004A K-SS 3NC M20 std actuator
    208008PF K-SS 3NC 1NO 1/2″NPT PF actuator
    208008HFH K-SS 3NC 1NO 1/2″NPT HFH actuator
    208008HF K-SS 3NC 1NO 1/2″NPT HF actuator
    208008 K-SS 3NC 1NO 1/2″NPT
    208009A K-SS 3NC 1NO QC-M23 12way std actuator
    208007HF K-SS 3NC 1NO M20 HF actuator
    208009F K-SS 3NC 1NO QC-M23 12way flat actuator
    208007A K-SS 3NC 1NO M20 std actuator
    208004F K-SS 3NC M20 flat actuator
    208004HF K-SS 3NC M20 HF Actuator
    208004HFH K-SS 3NC M20 HFH Actuator
    208004PF K-SS 3NC M20 PF actuator
    208005 K-SS 3NC 1/2″NPT
    208005A K-SS 3NC 1/2″NPT std actuator
    208005F K-SS 3NC 1/2″NPT flat actuator
    208007F K-SS 3NC 1NO M20 flat actuator
    208005HF K-SS 3NC 1/2″NPT HF actuator
    208008F K-SS 3NC 1NO 1/2″NPT flat actuator
    208005PF K-SS 3NC 1/2″NPT PF actuator
    208006 K-SS 3NC QC-M23 12way
    208006A K-SS 3NC QC-M23 12way std actuator
    208006F K-SS 3NC QC-M23 12way flat actuator
    208006HF K-SS 3NC QC-M23 12way HF actuator
    208006HFH K-SS 3NC QC-M23 12way HFH actuator
    208006PF K-SS 3NC QC-M23 12way PF actuator
    208007 K-SS 3NC 1NO M20
    208005HFH K-SS 3NC 1/2″NPT HFH actuator
