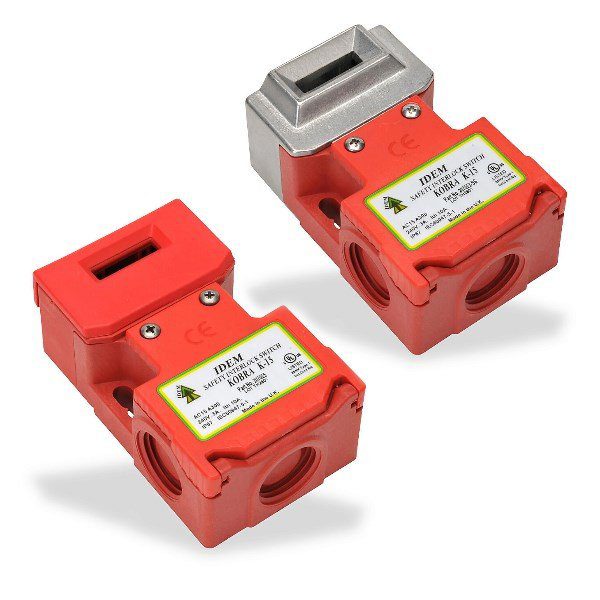

Idem 207004: K-15 3NC M20 | Tongue Interlock Switches

“Robust safety switches ensuring industrial machinery operation safety.”

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Technology: Tongue Interlock (Non Locking)
    Housing Material: Polyester
    Certificates: cULus
    Enclosure: Type 1
    Contact Configuration: 3 NC or 2 NC + 1 NO
    Thermal Current (lth): 10A
    Rated Insulation/Withstand Voltages: 500Vac/2500Vac
    Actuator Entry Minimum Radius: 175mm Standard 100mm Flexible
    Enclosure Protection: IP67
    Operating Temperature: -25 … +80 °C
    Vibration: IEC 68-2-6 10-55Hz + 1Hz Excursion 0.35mm 1 octave/min
    Fixing: 2 x M5
    Electrical Rating: Pilot Duty A300 240V.ac 3A. 6,000 cycles
    Maximum Ambient Temperature: +80 °C
    Head Material: Polyester or Stainless Steel
    Travel for Positive Opening: 8mm
    Maximum Approach/Withdrawal Speed: 600mm/s
    Product Number Variant Description
    207006HFH-SS K-15 3NC QC 1/2″UNF 6way SS Head HFH actuator
    207006HF-SS K-15 3NC QC 1/2″UNF 6way SS Head HF actuator
    207006PF K-15 3NC QC 1/2″UNF 6way PF actuator
    207006PF-SS K-15 3NC QC 1/2″UNF 6way SS Head PF actuator
    207006-SS K-15 3NC QC 1/2″UNF 6way SS Head
    207004A-SS K-15 3NC M20 SS Head std actuator
    207004F-SS K-15 3NC M20 SS Head flat actuator
    207004HF K-15 3NC M20 HF actuator
    207004HFH K-15 3NC M20 HFH actuator
    207004HFH-SS K-15 3NC M20 SS Head HFH actuator
    207004HF-SS K-15 3NC M20 SS Head HF Actuator
    207004PF K-15 3NC M20 PF actuator
    207005 K-15 3NC 1/2″NPT
    207004F K-15 3NC M20 flat actuator
    207006HFH K-15 3NC QC 1/2″UNF 6way HFH actuator
    207006F K-15 3NC QC 1/2″UNF 6way flat actuator
    207006A-SS K-15 3NC QC 1/2″UNF 6way SS Head std actuator
    207006A K-15 3NC QC 1/2″UNF 6way std actuator
    207006 K-15 3NC QC 1/2″UNF 6way
    207004A K-15 3NC M20 std actuator
    207005A K-15 3NC 1/2″NPT std actuator
    207005A-SS K-15 3NC 1/2″NPT SS Head std actuator
    207005-SS K-15 3NC 1/2″NPT SS Head
    207005F K-15 3NC 1/2″NPT flat actuator
    207005PF K-15 3NC 1/2″NPT PF actuator
    207005HF-SS K-15 3NC 1/2″NPT SS Head HF actuator
    207005HFH-SS K-15 3NC 1/2″NPT SS Head HFH actuator
    207005HFH K-15 3NC 1/2″NPT HFH actuator
    207005F-SS K-15 3NC 1/2″NPT SS Head flat actuator
    207005HF K-15 3NC 1/2″NPT HF actuator
    207006HF K-15 3NC QC 1/2″UNF 6way HF actuator
    207005PF-SS K-15 3NC 1/2″NPT SS Head PF actuator
    207006F-SS K-15 3NC QC 1/2″UNF 6way SS Head flat actuator
    207009 K-15 3NC QC-M12 8way
    207004-SS K-15 3NC M20 SS Head
    207009-SS K-15 3NC QC-M12 8way SS Head
    207009PF-SS K-15 3NC QC-M12 8way SS Head PF actuator
    207009PF K-15 3NC QC-M12 8way PF actuator
    207009HF-SS K-15 3NC QC-M12 8way SS Head HF actuator
    207009HFH-SS K-15 3NC QC-M12 8way SS Head HFH actuator
    207004PF-SS K-15 3NC M20 SS Head PF actuator
    207009HF K-15 3NC QC-M12 8way HF actuator
    207009F-SS K-15 3NC QC-M12 8way SS Head flat actuator
    207009F K-15 3NC QC-M12 8way flat actuator
    207009A-SS K-15 3NC QC-M12 8way SS Head std actuator
    207009A K-15 3NC QC-M12 8way std actuator
    207009HFH K-15 3NC QC-M12 8way HFH actuator
