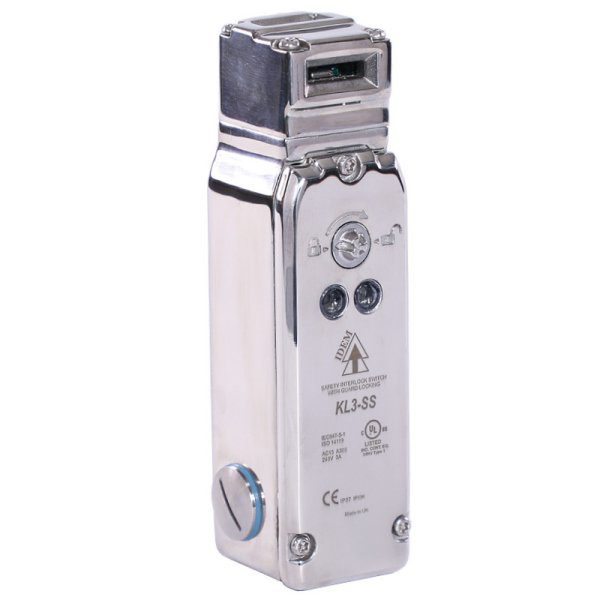

Idem 205003: KL3-SS QC-M23 12way 24V std release | Solenoid Locking Switches

“Robust Guard Locking Safety Switch, supporting up to 3000N force.”

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Technology: Power to Unlock
    Housing Material: 316 Grade Stainless Steel
    Approach Speed: 200mm/m. to 1000mm/s.
    Certificates: cULus
    Enclosure: Type 1
    Overload Protection Fuse (fuse Externally): 10A. (FF).
    Enclosure Protection: IP67, IP69K
    Operating Temperature: -25 … +40 °C
    Vibration: IEC 68-2-6, 10-55Hz+1Hz, Excursion 0.35mm, 1 octave/min
    Fixing: 4 x M5
    Holding Force: F1Max 3000N. Fzh 2307N.
    Terminal Torque: e 6 lb ins. (0.7Nm)
    Rated Insulation Voltage: 600VAC
    Rated Impulse Withstand Volt: 2500VAC
    Conduit Entry: M20 or 1/2 NPT
    Travel for Positive Opening: 10mm
    Solenoid Voltage (by part number): 24V ac/dc or 110V. ac or 230V. ac +/- 10% (12W.)
    LED 2 Supply Voltage: 24V dc +/- 10%
    Safety Contacts 11/12 21/22: Utilization Category AC15 A300 3A. Thermal Current (Ith) 5A
    Auxiliary Contact 33/34 (selectable with LED2): 24V.ac/dc 0.5A. maximum.
    Auxiliary Contact 43/44: 230V.ac/dc 0.5A. maximum.
    Man. Actuation Frequency: 2 cycle/sec
    Actuator entry minimum radius: 175mm Standard 100mm Flexible
    Maximum temperature: +40 °C
    Product Number Variant Description
    205409A KL3-SS QC-M23 12way 230V lid release std actuator
    205409HF KL3-SS QC-M23 12way 230V lid release HF actuator
    205409F KL3-SS QC-M23 12way 230V lid release flat actuator
    205409HFH KL3-SS QC-M23 12way 230V lid release HFH actuator
    205403HF KL3-SS QC-M23 12way 24V lid release HF actuator
    205406HFH KL3-SS QC-M23 12way 110V lid release HFH actuator
    205003A KL3-SS QC-M23 12way 24V std release std actuator
    205003F KL3-SS QC-M23 12way 24V std release flat actuator
    205003HF KL3-SS QC-M23 12way 24V std release HF actuator
    205003HFH KL3-SS QC-M23 12way 24V std release HFH actuator
    205006 KL3-SS QC-M23 12way 110V std release
    205006A KL3-SS QC-M23 12way 110V std release std actuator
    205006F KL3-SS QC-M23 12way 110V std release flat actuator
    205006HF KL3-SS QC-M23 12way 110V std release HF actuator
    205006HFH KL3-SS QC-M23 12way 110V std release HFH actuator
    205009 KL3-SS QC-M23 12way 230V std release
    205409 KL3-SS QC-M23 12way 230V lid release
    205009F KL3-SS QC-M23 12way 230V std release flat actuator
    205009HF KL3-SS QC-M23 12way 230V std release HF actuator
    205009HFH KL3-SS QC-M23 12way 230V std release HFH actuator
    205009A KL3-SS QC-M23 12way 230V std release std actuator
    205406A KL3-SS QC-M23 12way 110V lid release std actuator
    205406HF KL3-SS QC-M23 12way 110V lid release HF actuator
    205406F KL3-SS QC-M23 12way 110V lid release flat actuator
    205406 KL3-SS QC-M23 12way 110V lid release
    205403HFH KL3-SS QC-M23 12way 24V lid release HFH actuator
    205403F KL3-SS QC-M23 12way 24V lid release flat actuator
    205403A KL3-SS QC-M23 12way 24V lid release std actuator
    205403 KL3-SS QC-M23 12way 24V lid release
