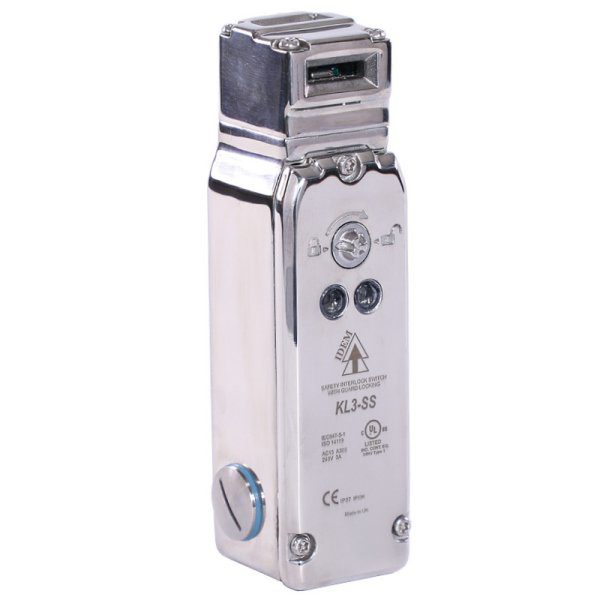

Idem 205002: KL3-SS 1/2″NPT 24V std release | Solenoid Locking Switches

“Robust IDEM Guard Locking Safety Switch, supports up to 3000N.”

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Technology: Power to Unlock
    Housing Material: 316 Grade Stainless Steel
    Approach Speed: 200mm/m. to 1000mm/s.
    Certificates: cULus
    Enclosure: Type 1
    Overload Protection Fuse (fuse Externally): 10A. (FF).
    Enclosure Protection: IP67, IP69K
    Operating Temperature: -25 … +40 °C
    Vibration: IEC 68-2-6, 10-55Hz+1Hz, Excursion 0.35mm, 1 octave/min
    Fixing: 4 x M5
    Holding Force: F1Max 3000N. Fzh 2307N.
    Terminal Torque: e 6 lb ins. (0.7Nm)
    Rated Insulation Voltage: 600VAC
    Rated Impulse Withstand Volt: 2500VAC
    Conduit Entry: M20 or 1/2 NPT
    Travel for Positive Opening: 10mm
    Solenoid Voltage (by part number): 24V ac/dc or 110V. ac or 230V. ac +/- 10% (12W.)
    LED 2 Supply Voltage: 24V dc +/- 10%
    Safety Contacts 11/12 21/22: Utilization Category AC15 A300 3A. Thermal Current (Ith) 5A
    Auxiliary Contact 33/34 (selectable with LED2): 24V.ac/dc 0.5A. maximum.
    Auxiliary Contact 43/44: 230V.ac/dc 0.5A. maximum.
    Man. Actuation Frequency: 2 cycle/sec
    Actuator entry minimum radius: 175mm Standard 100mm Flexible
    Maximum temperature: +40 °C
    Product Number Variant Description
    205402A KL3-SS 1/2″NPT 24V lid release std actuator
    205408HF KL3-SS 1/2″NPT 230V lid release HF actuator
    205408F KL3-SS 1/2″NPT 230V lid release flat actuator
    205408A KL3-SS 1/2″NPT 230V lid release std actuator
    205408 KL3-SS 1/2″NPT 230V lid release
    205405HFH KL3-SS 1/2″NPT 110V lid release HFH actuator
    205405A KL3-SS 1/2″NPT 110V lid release std actuator
    205405F KL3-SS 1/2″NPT 110V lid release flat actuator
    205405 KL3-SS 1/2″NPT 110V lid release
    205402HFH KL3-SS 1/2″NPT 24V lid release HFH Actuator
    205402HF KL3-SS 1/2″NPT 24V lid release HF Actuator
    205402F KL3-SS 1/2″NPT 24V lid release flat actuator
    205405HF KL3-SS 1/2″NPT 110V lid release HF actuator
    205402 KL3-SS 1/2″NPT 24V lid release
    205408HFH KL3-SS 1/2″NPT 230V lid release HFH actuator
    205002F KL3-SS 1/2″NPT 24V std release flat actuator
    205005F KL3-SS 1/2″NPT 110V std release flat actuator
    205005HF KL3-SS 1/2″NPT 110V std release HF actuator
    205005HFH KL3-SS 1/2″NPT 110V std release HFH actuator
    205002-HFH-RB KL3-SS 1/2″NPT 24V Urschel Special
    205002HFH KL3-SS 1/2″NPT 24V std release HFH Actuator
    205002HF KL3-SS 1/2″NPT 24V std release HF Actuator
    205005A KL3-SS 1/2″NPT 110V std release std actuator
    205008 KL3-SS 1/2″NPT 230V std release
    205008A KL3-SS 1/2″NPT 230V std release std actuator
    205008F KL3-SS 1/2″NPT 230V std release flat actuator
    205008HF KL3-SS 1/2″NPT 230V std release HF actuator
    205005 KL3-SS 1/2″NPT 110V std release
    205008HFH KL3-SS 1/2″NPT 230V std release HFH actuator
    205002A KL3-SS 1/2″NPT 24V std release std actuator
