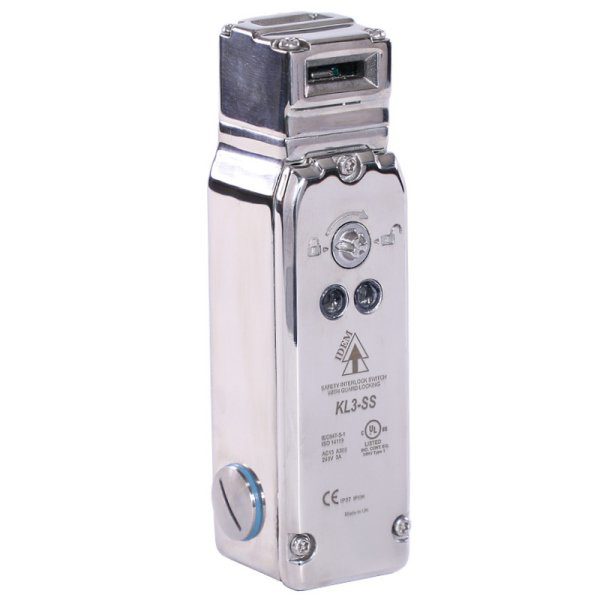

Name: Idem 205001: KL3-SS M20 24V std release
Brand: Venus Automation
SKU: 205001
Availability: InStock
Rating: 5 (1 reviews)

Idem 205001: KL3-SS M20 24V std release | Tongue Interlock Switches

“Robust 3000N Guard Locking Safety Switch for enhanced security.”

Specifications Compliance & Variations

Attribute	Value
Technology:	Power to Unlock
Housing Material:	316 Grade Stainless Steel
Approach Speed:	200mm/m. to 1000mm/s.
Certificates:	cULus
Enclosure:	Type 1
Overload Protection Fuse (fuse Externally):	10A. (FF).
Enclosure Protection:	IP67, IP69K
Operating Temperature:	-25 … +40 °C
Vibration:	IEC 68-2-6, 10-55Hz+1Hz, Excursion 0.35mm, 1 octave/min
Fixing:	4 x M5
Holding Force:	F1Max 3000N. Fzh 2307N.
Terminal Torque:	e 6 lb ins. (0.7Nm)
Rated Insulation Voltage:	600VAC
Rated Impulse Withstand Volt:	2500VAC
Conduit Entry:	M20 or 1/2 NPT
Travel for Positive Opening:	10mm
Solenoid Voltage (by part number):	24V ac/dc or 110V. ac or 230V. ac +/- 10% (12W.)
LED 2 Supply Voltage:	24V dc +/- 10%
Safety Contacts 11/12 21/22:	Utilization Category AC15 A300 3A. Thermal Current (Ith) 5A
Auxiliary Contact 33/34 (selectable with LED2):	24V.ac/dc 0.5A. maximum.
Auxiliary Contact 43/44:	230V.ac/dc 0.5A. maximum.
Man. Actuation Frequency:	2 cycle/sec
Actuator entry minimum radius:	175mm Standard 100mm Flexible
Maximum temperature:	+40 °C

Product Number	Variant Description
205407	KL3-SS M20 230V lid release
205407A	KL3-SS M20 230V lid release std actuator
205407F	KL3-SS M20 230V lid release flat actuator
205407HF	KL3-SS M20 230V lid release HF actuator
205004HFH	KL3-SS M20 110V std release HFH actuator
205004HF	KL3-SS M20 110V std release HF actuator
205004F	KL3-SS M20 110V std release flat actuator
205001HFH	KL3-SS M20 24V std release HFH actuator
205404	KL3-SS M20 110V lid release
205404F	KL3-SS M20 110V lid release flat actuator
205404HF	KL3-SS M20 110V lid release HF actuator
205404HFH	KL3-SS M20 110V lid release HFH actuator
205004A	KL3-SS M20 110V std release std actuator
205004	KL3-SS M20 110V std release
205407HFH	KL3-SS M20 230V lid release HFH actuator
205404A	KL3-SS M20 110V lid release std actuator
205001HF	KL3-SS M20 24V std release HF actuator
205401HF	KL3-SS M20 24V lid release HF actuator
205007A	KL3-SS M20 230V std release std actuator
205007	KL3-SS M20 230V std release
205001F	KL3-SS M20 24V std release flat actuator
205007HFH	KL3-SS M20 230V std release HFH actuator
205007HF	KL3-SS M20 230V std release HF actuator
205007F	KL3-SS M20 230V std release flat actuator
205001A	KL3-SS M20 24V std release std actuator
205401A	KL3-SS M20 24V lid release std actuator
205401F	KL3-SS M20 24V lid release flat actuator
205401HFH	KL3-SS M20 24V lid release HFH actuator
205401	KL3-SS M20 24V lid release
