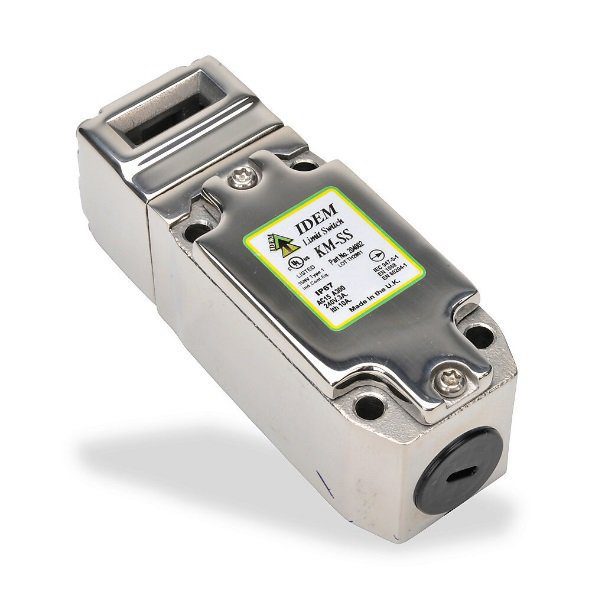

Idem 204014HFH: KM-SS 4NC 1/2″NPT HFH actuator
$448.25
KM-SS features a slimline, IP69K 316 stainless steel housing, designed to cope with the rigorous applications of the Food Processing and Packaging, Pharmaceutical and Petro-Chemical Industries. The head can be rotated to give up to eight actuator entry positions.
| Attribute | Value |
|---|---|
| Product Code: | 204014HFH |
| Prices To Upload: | 448.25159999999994 |
| Certificates: | cULus |
| Technology: | Tongue Interlock (Non Locking) |
| Housing Material: | 316 Grade Stainless Steel |
| Enclosure Protection: | IP67, IP69K (QC versions IP67 on connector) |
| Operating Temperature: | -25 … +80 °C (105 °C for CIP/SIP Cleaning) |
| Vibration: | IEC 68-2-6 10-55Hz+1Hz Excursion 0.35mm, 1 octave/min |
| Conduit Entry: | M20 or 1/2 NPT |
| Fixing: | 2 x M4 |
| Enclosure: | Type 1 |
| Contact Configuration: | 4NC, 3 NC + 1 NO, 2NC + 2NO or 2 NC + 1 NO |
| Thermal Current (lth): | 10A |
| Rated Insulation/Withstand Voltages: | 600VAC/2500VAC |
| Actuator Travel/Force for Positive Opening: | 6mm/12N |
| Actuator Entry Minimum Radius: | 175mm Standard 100mm Flexible |
| Maximum Approach Withdrawal Speed: | 600mm/s |
| Electrical Rating: | Pilot Duty A300 240V.ac 3A. 6,000 cycles |
| Maximum ambient temperature: | +80 °C |
