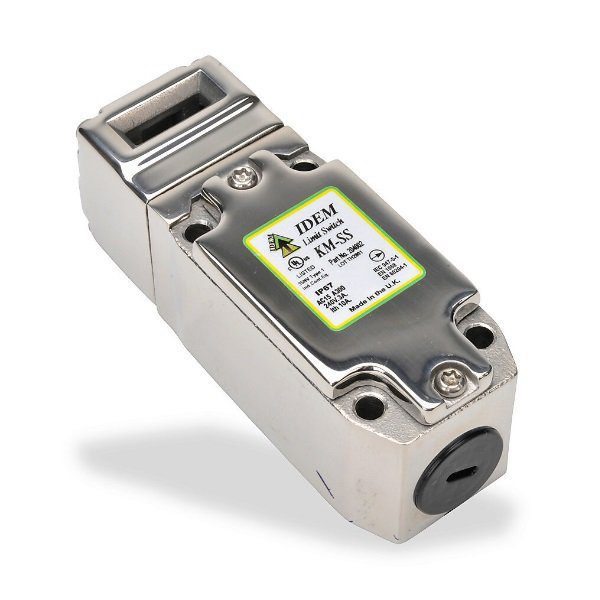

Idem 204004: KM-SS 3NC M20 | Tongue Interlock Switches
$320.00
“Robust safety switch ensuring reliable machine interlock operations.”
| Attribute | Value |
|---|---|
| Technology: | Tongue Interlock (Non Locking) |
| Housing Material: | 316 Grade Stainless Steel |
| Certificates: | cULus |
| Enclosure: | Type 1 |
| Contact Configuration: | 4NC, 3 NC + 1 NO, 2NC + 2NO or 2 NC + 1 NO |
| Thermal Current (lth): | 10A |
| Rated Insulation/Withstand Voltages: | 600VAC/2500VAC |
| Actuator Travel/Force for Positive Opening: | 6mm/12N |
| Actuator Entry Minimum Radius: | 175mm Standard 100mm Flexible |
| Maximum Approach Withdrawal Speed: | 600mm/s |
| Enclosure Protection: | IP67, IP69K (QC versions IP67 on connector) |
| Operating Temperature: | -25 … +80 °C (105 °C for CIP/SIP Cleaning) |
| Vibration: | IEC 68-2-6 10-55Hz+1Hz Excursion 0.35mm, 1 octave/min |
| Fixing: | 2 x M4 |
| Electrical Rating: | Pilot Duty A300 240V.ac 3A. 6,000 cycles |
| Conduit Entry: | M20 or 1/2 NPT |
| Maximum ambient temperature: | +80 °C |
| Product Number | Variant Description |
|---|---|
| 204022HFH | KM-SS 3NC QC-M12 8way HFH actuator |
| 204022 | KM-SS 3NC QC-M12 8way |
| 204022A | KM-SS 3NC QC-M12 8way std actuator |
| 204022HF | KM-SS 3NC QC-M12 8way HF actuator |
| 204022PF | KM-SS 3NC QC-M12 8way PF actuator |
| 204022F | KM-SS 3NC QC-M12 8way flat actuator |
| 204006HFH | KM-SS 3NC QC-M23 12way HFH actuator |
| 204009HFH | KM-SS 3NC 1NO QC-M23 12way HFH actuator |
| 204009 | KM-SS 3NC 1NO QC-M23 12way |
| 204008PF | KM-SS 3NC 1NO 1/2″NPT PF actuator |
| 204008HFH | KM-SS 3NC 1NO 1/2″NPT HFH actuator |
| 204008HF | KM-SS 3NC 1NO 1/2″NPT HF actuator |
| 204008F | KM-SS 3NC 1NO 1/2″NPT flat actuator |
| 204008A | KM-SS 3NC 1NO 1/2″NPT std actuator |
| 204008 | KM-SS 3NC 1NO 1/2″NPT |
| 204007PF | KM-SS 3NC 1NO M20 PF actuator |
| 204007HFH | KM-SS 3NC 1NO M20 HFH actuator |
| 204007HF | KM-SS 3NC 1NO M20 HF actuator |
| 204007F | KM-SS 3NC 1NO M20 flat actuator |
| 204007A | KM-SS 3NC 1NO M20 std actuator |
| 204007 | KM-SS 3NC 1NO M20 |
| 204006PF | KM-SS 3NC QC-M23 12way PF actuator |
| 204006HF | KM-SS 3NC QC-M23 12way HF actuator |
| 204006F | KM-SS 3NC QC-M23 12way flat actuator |
| 204006A | KM-SS 3NC QC-M23 12way std actuator |
| 204006 | KM-SS 3NC QC-M23 12way |
| 204005PF | KM-SS 3NC 1/2″NPT PF actuator |
| 204005HFH | KM-SS 3NC 1/2″NPT HFH actuator |
| 204005HF | KM-SS 3NC 1/2″NPT HF actuator |
| 204005F | KM-SS 3NC 1/2″NPT flat actuator |
| 204005A | KM-SS 3NC 1/2″NPT std actuator |
| 204005 | KM-SS 3NC 1/2″NPT |
| 204004PF | KM-SS 3NC M20 PF actuator |
| 204004HFH | KM-SS 3NC M20 HFH actuator |
| 204004HF | KM-SS 3NC M20 HF actuator |
| 204009PF | KM-SS 3NC 1NO QC-M23 12way PF actuator |
| 204004A | KM-SS 3NC M20 std actuator |
| 204009A | KM-SS 3NC 1NO QC-M23 12way std actuator |
| 204009F | KM-SS 3NC 1NO QC-M23 12way flat actuator |
| 204004F | KM-SS 3NC M20 flat actuator |
| 204009HF | KM-SS 3NC 1NO QC-M23 12way HF actuator |
