204001 KM-SS 2NC 1NO M20
204001 KM-SS 2NC 1NO M20
203019 KM-Ex 2NC 3M Idem 203019: KM-Ex 2NC 3M | Tongue Interlock Switches
204004 KM-SS 3NC M20 Idem 204004: KM-SS 3NC M20 | Tongue Interlock Switches

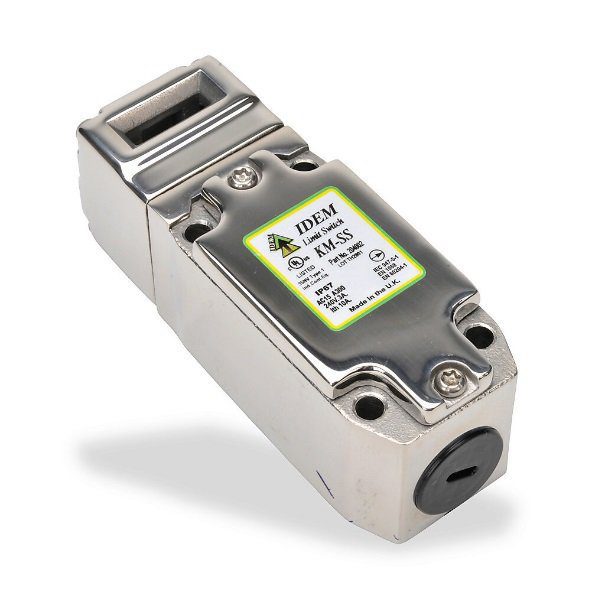

Idem 204001: KM-SS 2NC 1NO M20 | Tongue Interlock Switches

“Reliable Tongue Interlock Safety Switch for electrical safety.”

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Technology: Tongue Interlock (Non Locking)
    Housing Material: 316 Grade Stainless Steel
    Certificates: cULus
    Enclosure: Type 1
    Contact Configuration: 4NC, 3 NC + 1 NO, 2NC + 2NO or 2 NC + 1 NO
    Thermal Current (lth): 10A
    Rated Insulation/Withstand Voltages: 600VAC/2500VAC
    Actuator Travel/Force for Positive Opening: 6mm/12N
    Actuator Entry Minimum Radius: 175mm Standard 100mm Flexible
    Maximum Approach Withdrawal Speed: 600mm/s
    Enclosure Protection: IP67, IP69K (QC versions IP67 on connector)
    Operating Temperature: -25 … +80 °C (105 °C for CIP/SIP Cleaning)
    Vibration: IEC 68-2-6 10-55Hz+1Hz Excursion 0.35mm, 1 octave/min
    Fixing: 2 x M4
    Electrical Rating: Pilot Duty A300 240V.ac 3A. 6,000 cycles
    Conduit Entry: M20 or 1/2 NPT
    Maximum ambient temperature: +80 °C
    Product Number Variant Description
    204010F KM-SS 2NC 2NO M20 flat actuator
    204010HF KM-SS 2NC 2NO M20 HF actuator
    204010HFH KM-SS 2NC 2NO M20 HFH actuator
    204010PF KM-SS 2NC 2NO M20 PF actuator
    204011 KM-SS 2NC 2NO 1/2″NPT
    204011A KM-SS 2NC 2NO 1/2″NPT std actuator
    204012 KM-SS 2NC 2NO QC-M23 12way
    204011PF KM-SS 2NC 2NO 1/2″NPT PF actuator
    204012HFH KM-SS 2NC 2NO QC-M23 12way HFH actuator
    204012HF KM-SS 2NC 2NO QC-M23 12way HF actuator
    204012F KM-SS 2NC 2NO QC-M23 12way flat actuator
    204011HF KM-SS 2NC 2NO 1/2″NPT HF actuator
    204011HFH KM-SS 2NC 2NO 1/2″NPT HFH actuator
    204300-Z KM-SS 2NC 1NO QC-M12 8way OSSD
    204012A KM-SS 2NC 2NO QC-M23 12way std actuator
    204011F KM-SS 2NC 2NO 1/2″NPT flat actuator
    204012PF KM-SS 2NC 2NO QC-M23 12way PF actuator
    204010 KM-SS 2NC 2NO M20
    204003A KM-SS 2NC 1NO QC-M23 12way std actuator
    204002 KM-SS 2NC 1NO 1/2″NPT
    204002A KM-SS 2NC 1NO 1/2″NPT std actuator
    204002F KM-SS 2NC 1NO 1/2″NPT flat actuator
    204002HF KM-SS 2NC 1NO 1/2″NPT HF actuator
    204002HFH KM-SS 2NC 1NO 1/2″NPT HFH Actuator
    204002PF KM-SS 2NC 1NO 1/2″NPT PF actuator
    204003 KM-SS 2NC 1NO QC-M23 12way
    204001HF KM-SS 2NC 1NO M20 HF actuator
    204003F KM-SS 2NC 1NO QC-M23 12way flat actuator
    204021 KM-SS 2NC 1NO QC-M12 8way
    204001PF KM-SS 2NC 1NO M20 PF actuator
    204021A KM-SS 2NC 1NO QC-M12 8way std actuator
    204021HF KM-SS 2NC 1NO QC-M12 8way HF actuator
    204021HFH KM-SS 2NC 1NO QC-M12 8way HFH actuator
    204021PF KM-SS 2NC 1NO QC-M12 8way PF actuator
    204001F KM-SS 2NC 1NO M20 flat actuator
    204003HF KM-SS 2NC 1NO QC-M23 12way HF actuator
    204003HFH KM-SS 2NC 1NO QC-M23 12way HFH actuator
    204003PF KM-SS 2NC 1NO QC-M23 12way PF actuator
    204001A KM-SS 2NC 1NO M20 std actuator
    204010A KM-SS 2NC 2NO M20 std actuator
    204001-40N KM-SS 2NC 1NO M2040N
    204021F KM-SS 2NC 1NO QC-M12 8way flat actuator
    204001HFH KM-SS 2NC 1NO M20 HFH actuator
