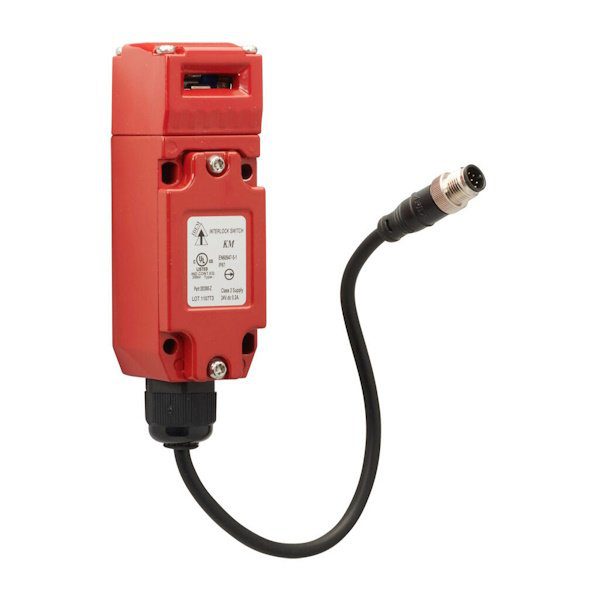

Idem 203300-Z: KM 2NC 1NO QC-M12 8way OSSD
$450.26
The KM-Z combines internal self-monitoring and OSSD outputs with a robust, slimline body for reliable position interlock detection on medium to heavy duty moving guards.
| Attribute | Value |
|---|---|
| Product Code: | 203300-Z |
| Prices To Upload: | 450.25719999999995 |
| Certificates: | cULus (TUV on Internal Contact Block) |
| Technology: | Tongue Interlock (Non Locking) |
| Housing Material: | Painted Die-Cast |
| Operating Temperature: | -20 … +50 °C |
| Enclosure: | Type 1 |
| Maximum temperature: | +50 °C |
| Contact Configuration: | 2 OSSD PNP + 1 PNP Auxiliary |
| Rated Operating Voltage: | 24V DC -15% +10% (Use SELV/PELV) |
| Power Consumption: | 0.7W |
| Outputs Rated Voltage: | 24V DC |
| Outputs max. / min.Current: | 0.2 A / 1mA |
| Output Current: | 0.2 A PNP |
| Inputs Rated Voltage / Current: | 24V DC / 2mA |
| Auxiliary Signalling Output Rated Voltage: | 24V DC |
| Auxiliary Signalling Output Max. Current: | 0.2 A PNP |
| Response Time Guard Open: | 60ms max. |
| Response Time: | 20ms max. |
| Response Time Inputs Off: | 20ms max. |
| Maximum output: | 24V DC 100mA |
