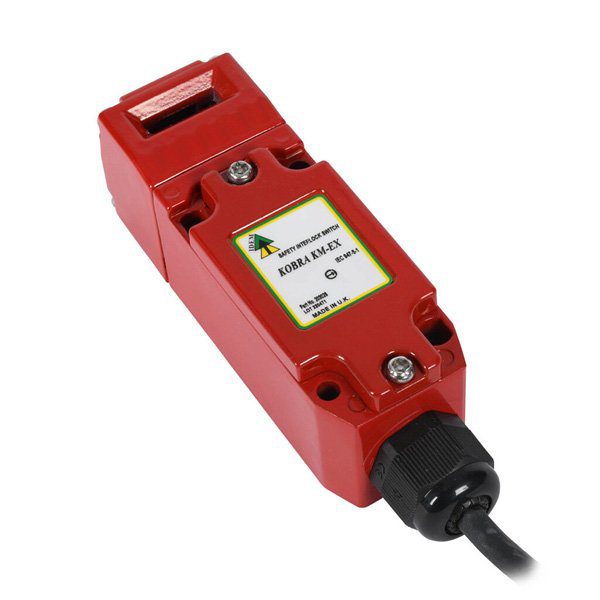

Idem 203016HFH-SS: KM-Ex 1NC 1NO 3M SS Head HFH Flexible Actuator
$967.70
Explore the Idem 203016HFH-SS: KM-Ex 1NC 1NO 3M SS Head HFH Flexible Actuator. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 203016HFH-SS |
| Technology: | Tongue Interlock (Non Locking) |
| Housing Material: | Painted Die-Cast Aluminum |
| Enclosure Protection: | IP67 |
| Operating Temperature: | -25 … +80 °C |
| Approvals: | IECEx, cULus on LS-Ex Internal Contact Block |
| Actuator Entry Minimum Radius: | 175mm Standard 100mm Flexible |
| Switching frequency (LS-Ex): | 1.0 Hz maximum |
| Mechanical Life Expectancy (ls-ex): | 1,000,000 switches |
| Electrical Life Expectancy (ls-ex): | Tested to 1,000,000 cycles at 24V. 0.2A |
| Head Material: | Painted Die-Cast Aluminum or 316 Grade Stainless Steel |
| Actuator Travel/Force for Positive Opening: | 6mm/12N |
| Maximum Approach Withdrawal Speed: | 600mm/s |
