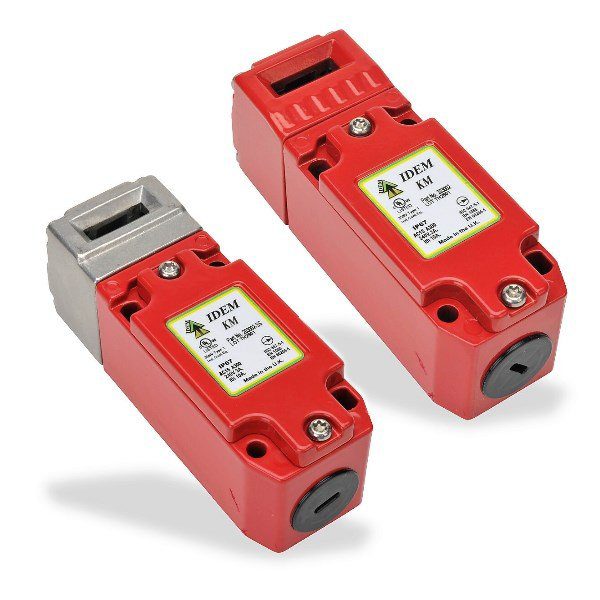

Idem 203001: KM 2NC 1NO M20 | Solenoid Locking Switches
$132.00
“Robust safety switch ensuring secure interlocking in electrical systems.”
| Attribute | Value |
|---|---|
| Technology: | Tongue Interlock (Non Locking) |
| Housing Material: | Painted Die-Cast |
| Certificates: | cULus |
| Enclosure: | Type 1 |
| Contact Configuration: | 4NC, 3 NC + 1 NO, 2NC + 2NO or 2 NC + 1 NO |
| Thermal Current (lth): | 10A |
| Rated Insulation/Withstand Voltages: | 600VAC/2500VAC |
| Actuator Travel/Force for Positive Opening: | 6mm/12N |
| Actuator Entry Minimum Radius: | 175mm Standard 100mm Flexible |
| Maximum Approach Withdrawal Speed: | 600mm/s |
| Enclosure Protection: | IP67 |
| Operating Temperature: | -25 … +80 °C |
| Vibration: | IEC 68-2-6 10-55Hz+1HzExcursion 0.35mm, 1 octave/min |
| Fixing: | 2 x M4 |
| Electrical Rating: | Pilot Duty A300 240V.ac 3A. 6,000 cycles |
| Conduit Entry: | M20 or 1/2 NPT |
| Head Material: | Painted Die-Cast or 316 Stainless Steel |
| Maximum ambient temperature: | +80 °C |
| Product Number | Variant Description |
|---|---|
| 203001PF | KM 2NC 1NO M20 PF actuator |
| 203001A | KM 2NC 1NO M20 std actuator |
| 203010 | KM 2NC 2NO M20 |
| 203010A | KM 2NC 2NO M20 std actuator |
| 203010A-SS | KM 2NC 2NO M20 SS head std actuator |
| 203010F | KM 2NC 2NO M20 flat actuator |
| 203010F-SS | KM 2NC 2NO M20 SS head flat actuator |
| 203010HF | KM 2NC 2NO M20 HF actuator |
| 203010HFH | KM 2NC 2NO M20 HFH actuator |
| 203010HF-SS | KM 2NC 2NO M20 SS head HF actuator |
| 203010PF | KM 2NC 2NO M20 PF actuator |
| 203010PF-SS | KM 2NC 2NO M20 SS head PF actuator |
| 203010-SS | KM 2NC 2NO M20 SS head |
| 203003A-SS | KM 2NC 1NO QC-M23 12way SS head std actuator |
| 203003A | KM 2NC 1NO QC-M23 12way std actuator |
| 203003 | KM 2NC 1NO QC-M23 12way |
| 203002-SS | KM 2NC 1NO 1/2″NPT SS head |
| 203010HFH-SS | KM 2NC 2NO M20 SS head HFH actuator |
| 203002PF-SS | KM 2NC 1NO 1/2″NPT SS head PF actuator |
| 203021-SS | KM 2NC 1NO QC-M12 8way SS head |
| 203003F-SS | KM 2NC 1NO QC-M23 12way SS head flat actuator |
| 203300-Z | KM 2NC 1NO QC-M12 8way OSSD |
| 203021A | KM 2NC 1NO QC-M12 8way std actuator |
| 203021A-SS | KM 2NC 1NO QC-M12 8way SS head std actuator |
| 203021F | KM 2NC 1NO QC-M12 8way flat actuator |
| 203021F-SS | KM 2NC 1NO QC-M12 8way SS head flat actuator |
| 203021HF | KM 2NC 1NO QC-M12 8way HF actuator |
| 203021HFH | KM 2NC 1NO QC-M12 8way HFH actuator |
| 203021HFH-SS | KM 2NC 1NO QC-M12 8way SS head HFH actuator |
| 203003F | KM 2NC 1NO QC-M23 12way flat actuator |
| 203021HF-SS | KM 2NC 1NO QC-M12 8way SS head HF actuator |
| 203021PF-SS | KM 2NC 1NO QC-M12 8way SS head PF actuator |
| 203003-SS | KM 2NC 1NO QC-M23 12way SS head |
| 203003PF-SS | KM 2NC 1NO QC-M23 12way SS head PF actuator |
| 203003PF | KM 2NC 1NO QC-M23 12way PF actuator |
| 203003HF-SS | KM 2NC 1NO QC-M23 12way SS head HF actuator |
| 203003HFH-SS | KM 2NC 1NO QC-M23 12way SS head HFH actuator |
| 203003HFH | KM 2NC 1NO QC-M23 12way HFH actuator |
| 203003HF | KM 2NC 1NO QC-M23 12way HF actuator |
| 203021PF | KM 2NC 1NO QC-M12 8way PF actuator |
| 203001HF-SS | KM 2NC 1NO M20 SS head HF actuator |
| 203002PF | KM 2NC 1NO 1/2″NPT PF actuator |
| 203002HFH-SS | KM 2NC 1NO 1/2″NPT SS head HFH actuator |
| 203012PF | KM 2NC 2NO QC-M23 12way PF actuator |
| 203012PF-SS | KM 2NC 2NO QC-M23 12way SS head PF actuator |
| 203012-SS | KM 2NC 2NO QC-M23 12way SS head |
| 203001A-SS | KM 2NC 1NO M20 SS head std actuator |
| 203001F | KM 2NC 1NO M20 flat actuator |
| 203001F-40N | KM 2NC 1NO M20 40N holding flat actuator |
| 203001F-SS | KM 2NC 1NO M20 SS head flat actuator |
| 203001HF | KM 2NC 1NO M20 HF actuator |
| 203012HF-SS | KM 2NC 2NO QC-M23 12way SS head HF actuator |
| 203001HFH | KM 2NC 1NO M20 HFH actuator |
| 203002HF | KM 2NC 1NO 1/2″NPT HF actuator |
| 203002F-SS | KM 2NC 1NO 1/2″NPT SS head flat actuator |
| 203002F | KM 2NC 1NO 1/2″NPT flat actuator |
| 203002A-SS | KM 2NC 1NO 1/2″NPT SS head std actuator |
| 203002A | KM 2NC 1NO 1/2″NPT std actuator |
| 203002 | KM 2NC 1NO 1/2″NPT |
| 203001-SS | KM 2NC 1NO M20 SS head |
| 203001PF-SS | KM 2NC 1NO M20 SS head PF actuator |
| 203001HFH-SS | KM 2NC 1NO M20 SS head HFH actuator |
| 203002HF-SS | KM 2NC 1NO 1/2″NPT SS head HF actuator |
| 203012HFH-SS | KM 2NC 2NO QC-M23 12way SS head HFH actuator |
| 203012HF | KM 2NC 2NO QC-M23 12way HF actuator |
| 203002HFH | KM 2NC 1NO 1/2″NPT HFH actuator |
| 203011 | KM 2NC 2NO 1/2″NPT |
| 203011A | KM 2NC 2NO 1/2″NPT std actuator |
| 203011A-SS | KM 2NC 2NO 1/2″NPT SS Head std actuator |
| 203011F | KM 2NC 2NO 1/2″NPT flat actuator |
| 203011F-SS | KM 2NC 2NO 1/2″NPT SS Head flat actuator |
| 203011HF | KM 2NC 2NO 1/2″NPT HF actuator |
| 203011HFH | KM 2NC 2NO 1/2″NPT HFH actuator |
| 203012HFH | KM 2NC 2NO QC-M23 12way HFH actuator |
| 203011HFH-SS | KM 2NC 2NO 1/2″NPT SS Head HFH actuator |
| 203011PF | KM 2NC 2NO 1/2″NPT PF actuator |
| 203011PF-SS | KM 2NC 2NO 1/2″NPT SS Head PF actuator |
| 203011-SS | KM 2NC 2NO 1/2″NPT SS Head |
| 203012 | KM 2NC 2NO QC-M23 12way |
| 203012A | KM 2NC 2NO QC-M23 12way std actuator |
| 203012A-SS | KM 2NC 2NO QC-M23 12way SS head std actuator |
| 203012F | KM 2NC 2NO QC-M23 12way flat actuator |
| 203012F-SS | KM 2NC 2NO QC-M23 12way SS head flat actuator |
| 203011HF-SS | KM 2NC 2NO 1/2″NPT SS Head HF actuator |
| 203021 | KM 2NC 1NO QC-M12 8way |
