Name: Idem 200013: KP 4NC M20
Brand: Venus Automation
SKU: 200013
Rating: 5 (1 reviews)

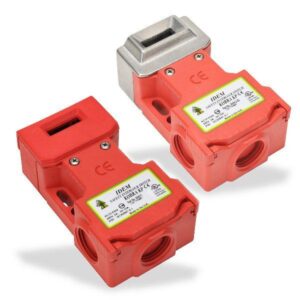

Idem 200013: KP 4NC M20 | Tongue Interlock Switches

“Durable, high-performance electrical safety switches enhancing system protection.”

Specifications Compliance & Variations

Attribute	Value
Technology:	Tongue Interlock (Non Locking)
Housing Material:	Polyester
Certificates:	cULus
Enclosure:	Type 1
Contact Configuration:	3 NC or 2 NC + 1 NO
Thermal Current (lth):	10A
Rated Insulation/Withstand Voltages:	500Vac/2500Vac
Actuator Entry Minimum Radius:	175mm Standard 100mm Flexible
Enclosure Protection:	IP67
Operating Temperature:	-25 … +80 °C
Vibration:	IEC 68-2-6 10-55Hz + 1Hz Excursion 0.35mm 1 octave/min
Fixing:	2 x M5
Electrical Rating:	Pilot Duty A300 240V.ac 3A. 6,000 cycles
Maximum Ambient Temperature:	+80 °C
Head Material:	Polyester or Stainless Steel
Travel for Positive Opening:	8mm
Maximum Approach/Withdrawal Speed:	600mm/s

Product Number	Variant Description
200014HF-SS	KP 4NC 1/2″NPT SS head HF actuator
200014PF	KP 4NC 1/2″NPT PF Actuator
200014HF	KP 4NC 1/2″NPT HF Actuator
200014HFH	KP 4NC 1/2″NPT HFH actuator
200013HFH	KP 4NC M20 HFH actuator
200014F	KP 4NC 1/2″NPT flat actuator
200014A-SS	KP 4NC 1/2″NPT SS head std actuator
200014A	KP 4NC 1/2″NPT std actuator
200014	KP 4NC 1/2″NPT
200013-SS	KP 4NC M20 SS head
200013PF-SS	KP 4NC M20 SS head PF actuator
200013PF	KP 4NC M20 PF Actuator
200013HF-SS	KP 4NC M20 SS head PF actuator
200013HFH-SS	KP 4NC M20 SS head HFH actuator
200014PF-SS	KP 4NC 1/2″NPT SS head PF actuator
200013HF	KP 4NC M20 HF Actuator
200013F-SS	KP 4NC M20 SS head flat actuator
200014F-SS	KP 4NC 1/2″NPT SS head flat actuator
200014-SS	KP 4NC 1/2″NPT SS head
200014HFH-SS	KP 4NC 1/2″NPT SS head HFH actuator
200025	KP 4NC QC-M12 8way
200025-SS	KP 4NC QC-M12 8way SS head
200025PF-SS	KP 4NC QC-M12 8way SS head PF actuator
200025PF	KP 4NC QC-M12 8way PF Actuator
200025HF-SS	KP 4NC QC-M12 8way SS head HF actuator
200025HFH-SS	KP 4NC QC-M12 8way SS head HFH actuator
200025HFH	KP 4NC QC-M12 8way HFH actuator
200025HF	KP 4NC QC-M12 8way HF Actuator
200025F-SS	KP 4NC QC-M12 8way SS head flat actuator
200025F	KP 4NC QC-M12 8way flat actuator
200025A-SS	KP 4NC QC-M12 8way SS head std actuator
200025A	KP 4NC QC-M12 8way std actuator
200013A-SS	KP 4NC M20 SS head std actuator
200013A	KP 4NC M20 std actuator
200013F	KP 4NC M20 flat actuator
