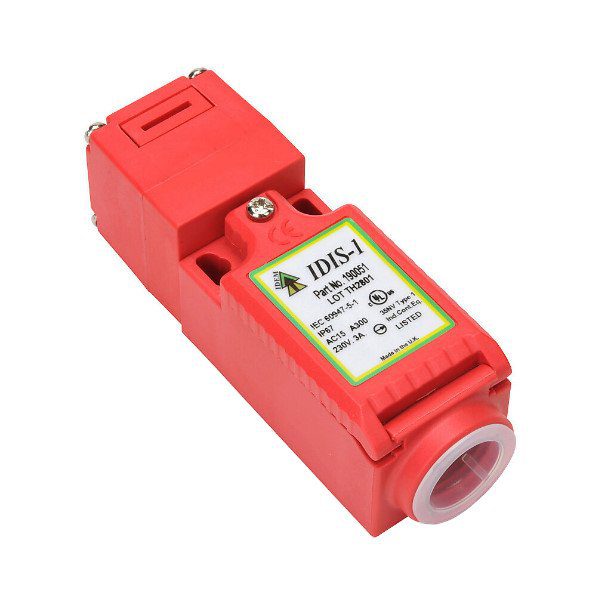

Idem 190050: IDIS-1 2NC 1NO M20 no actuator | Safety Switch Accessories
“Robust, reliable electrical safety switch with tongue interlock feature.”
| Attribute | Value |
|---|---|
| Technology: | Tongue Interlock (Non Locking) |
| Housing Material: | Red, Polyester |
| Certificates: | cULus |
| Enclosure: | Type 1 |
| Contact Configuration: | 2 NC + 1 NO / 3 NC / 1 NC + 1 NO |
| Overload Protection Fuse (fuse Externally): | 10A. (FF) |
| Thermal Current (lth): | 10A |
| Rated Insulation/Withstand Voltages: | 600VAC/2500VAC |
| Actuator Travel/Force for Positive Opening: | 6mm/12N |
| Actuator Entry Minimum Radius: | 175mm Standard 100mm Flexible |
| Maximum Approach Withdrawal Speed: | 600mm/s |
| Body Material: | Polyester |
| Enclosure Protection: | IP67 |
| Operating Temperature: | -25 … +80 °C |
| Vibration: | EC 68-2-6 10-55Hz+1HzExcursion 0.35mm, 1 octave/min |
| Fixing: | 2 x M4 |
| Electrical Rating: | Pilot Duty A300 240V.ac 3A. 6,000 cycles |
| Maximum Ambient Temperature: | +40ºC |
| Product Number | Variant Description |
|---|---|
| 190052F | IDIS-1 2NC 1NO QC 1/2″UNF 6way flat actuator |
| 190052A | IDIS-1 2NC 1NO QC 1/2″UNF 6way angled actuator |
| 190052 | IDIS-1 2NC 1NO QC 1/2″UNF 6way no actuator |
| 190051PF | IDIS-1 2NC 1NO 1/2″NPT PF actuator |
| 190050F | IDIS-1 2NC 1NO M20 flat actuator |
| 190051 | IDIS-1 2NC 1NO 1/2″NPT no actuator |
| 190050PF | IDIS-1 2NC 1NO M20 PF actuator |
| 190050A | IDIS-1 2NC 1NO M20 angled actuator |
| 190052PF | IDIS-1 2NC 1NO QC 1/2″UNF 6way PF actuator |
| 190051F | IDIS-1 2NC 1NO 1/2″NPT flat actuator |
| 190053 | IDIS-1 2NC 1NO QC-M12 8way no actuator |
| 190051A | IDIS-1 2NC 1NO 1/2″NPT angled actuator |
| 190053F | IDIS-1 2NC 1NO QC-M12 8way flat actuator |
| 190053PF | IDIS-1 2NC 1NO QC-M12 8way PF actuator |
| 190053A | IDIS-1 2NC 1NO QC-M12 8way angled actuator |
