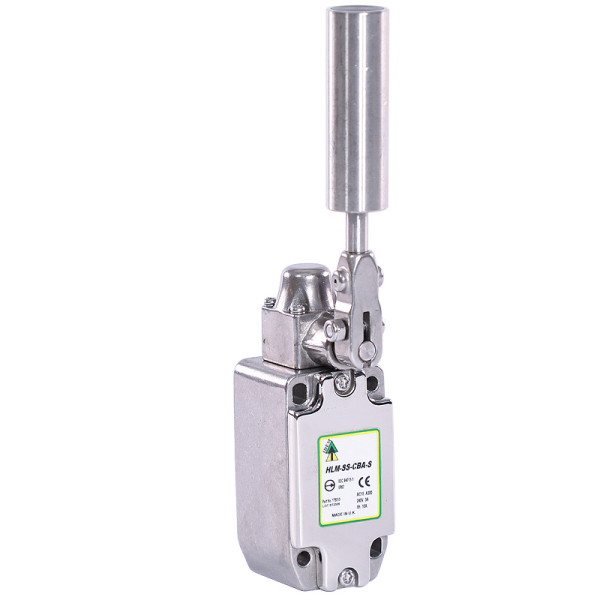

Idem 175465: HLM-SS-CBA-EX 2NC 2NO Switch SS Roller
$1,836.13
Explore the Idem 175465: HLM-SS-CBA-EX 2NC 2NO Switch SS Roller. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 175465 |
| Approvals: | IECEx, cULus on LS-Ex Internal Contact Block |
| Technology: | Belt Alignment Switch |
| Housing Material: | 316 Grade Stainless Steel |
| Roller Material: | Polyester or 316 Grade Stainless Steel |
| Enclosure Protection: | IP67, IP69K (NEMA 6) |
| Switching frequency (LS-Ex): | 1.0 Hz maximum |
| Mechanical Life Expectancy (ls-ex): | 1,000,000 switches |
| Electrical Life Expectancy (ls-ex): | Tested to 1,000,000 cycles at 24V. 0.2A |
| Typical operating parameters: | 0.4Nm Torque 15-30 degrees contact changeover |
