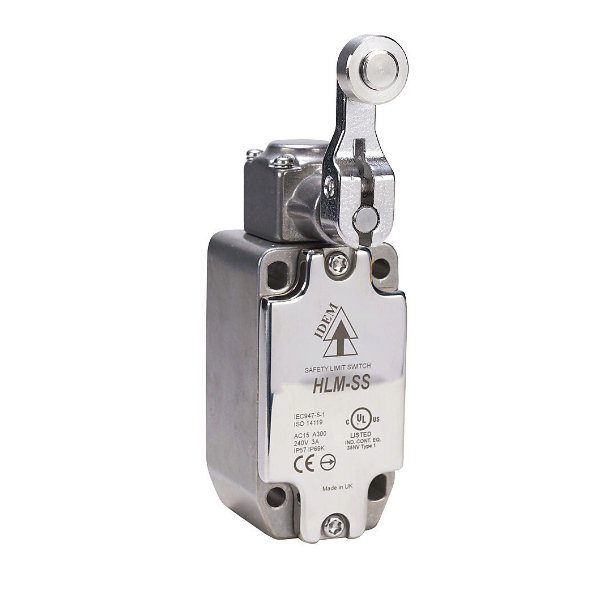

Idem 175004: HLM-SS 3NC 1NO SRL M20 | Safety Switch Accessories
“Stainless steel safety switch with short roller lever for electrical safety.”
| Attribute | Value |
|---|---|
| Approvals: | cULus |
| UL Info: | Gold plated contacts are available for circuits with low power (5V 5mA). Type 1 Enclosures. Use 16 – 12AWG copper conductors, rated 75ºC minimum. Intended for same polarity use. Electrical Rating A300 240V.ac 3A. (6,000 cycles) 240V. 10A. carry only. Wire range 16AWG – 12AWG Copper Torque 7lb/in (0.8Nm) Earth bonding terminal inside enclosure if required. |
| Material: | 316 Grade Stainless Steel |
| Thermal Current (Ith): | 10A |
| Enclosure Protection: | IP67, IP69K (NEMA 6) |
| Operating Temperature: | -25 … +80 °C |
| Vibration: | IEC 68-2-6, 10-55Hz 0.35mm |
| Utilization Category: | AC15 A300 240V. 3A |
| Min Current: | 5V, 5mA, DC |
| Rated Impulse Withstand Volt: | 2500VAC |
| Mechanical Life Expectancy: | 2,500,000 Cycles |
| Conductor Size: | 1.5 sq.mm |
| Positive Opening Operation (NC Contacts): | 0.4Nm |
| Product Number | Variant Description |
|---|---|
| 175005 | HLM-SS 3NC 1NO SRL 1/2″NPT |
| 175206-PL | HLM-SS 3NC 1NO TelescopicPlated Spring Lever QC-M23 |
| 175205-PL | HLM-SS 3NC 1NO TelescopicPlated Spring Lever 1/2″NPT |
| 175204-PL | HLM-SS 3NC 1NO TelescopicPlated Spring Lever M20 |
| 175306 | HLM-SS 3NC 1NO Adj Roller Lever QC-M23 |
| 175305 | HLM-SS 3NC 1NO Adj Roller Lever 1/2″NPT |
| 175304 | HLM-SS 3NC 1NO Adj Roller Lever M20 |
| 175254 | HLM-SS 3NC 1NO Lever Arm M20 |
| 175054 | HLM-SS 3NC 1NO Roller Plunger M20 |
| 175055 | HLM-SS 3NC 1NO Roller Plunger 1/2″NPT |
| 175056 | HLM-SS 3NC 1NO Roller Plunger QC-M23 |
| 175254-GC | HLM-SS 3NC 1NO Lever Arm M20 with Gold Contacts |
| 175255 | HLM-SS 3NC 1NO Lever Arm 1/2″NPT |
| 175256 | HLM-SS 3NC 1NO Lever Arm QC-M23 |
| 175156 | HLM-SS 3NC 1NO Spring Lever QC-M23 |
| 175006 | HLM-SS 3NC 1NO SRL QC-M23 |
| 175155 | HLM-SS 3NC 1NO Spring Lever 1/2″NPT |
| 175154 | HLM-SS 3NC 1NO Spring Lever M20 |
| 175106 | HLM-SS 3NC 1NO Pin Plunger QC-M23 |
| 175104 | HLM-SS 3NC 1NO Pin Plunger M20 |
| 175105 | HLM-SS 3NC 1NO Pin Plunger 1/2″NPT |
