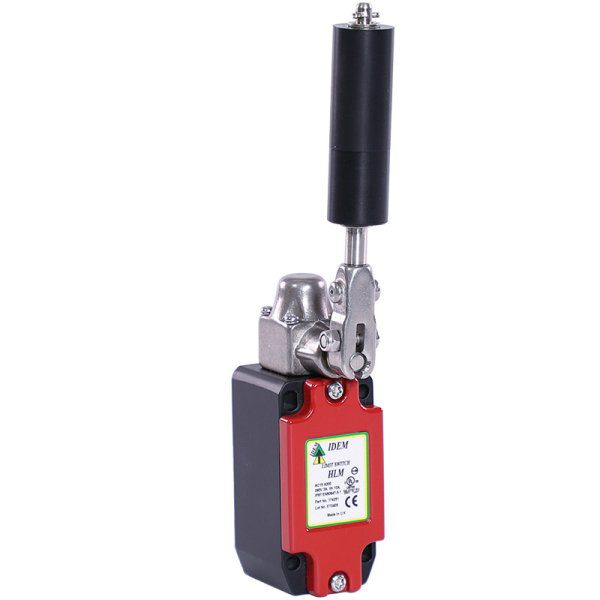

Idem 174452: HLM-CBA 2NC 2NO with SS Roller 1/2″NPT
$461.29
Explore the Idem 174452: HLM-CBA 2NC 2NO with SS Roller 1/2″NPT. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 174452 |
| Technology: | Mini Belt Alignment Switch |
| Housing Material: | Painted Die-Cast Metal |
| Rated Impulse Withstand Volt: | 2500VAC |
| Enclosure Protection: | IP67 |
| Operating Temperature: | -25 … +80 °C |
| Vibration: | IEC 68-2-6, 10-55Hz 0.35mm |
| Fixing: | M5 Bolts (Torque 2.0Nm) |
| Approvals: | cULus |
| Roller Material: | 316 Grade Stainless Steel or Polyester |
| Thermal Current (Ith): | 10A |
| Typical operating parameters: | 0.4Nm Torque 15-30 degrees contact changeover |
| Mechanical Life Expectancy: | 500,000 Cycles |
| Conductor Size: | 1.5 sq.mm |
| Utilization Category: | AC15 A300 240V. 3A |
| Min Current: | 5V, 5mA, DC |
