| Approvals: |
cULus |
| Technology: |

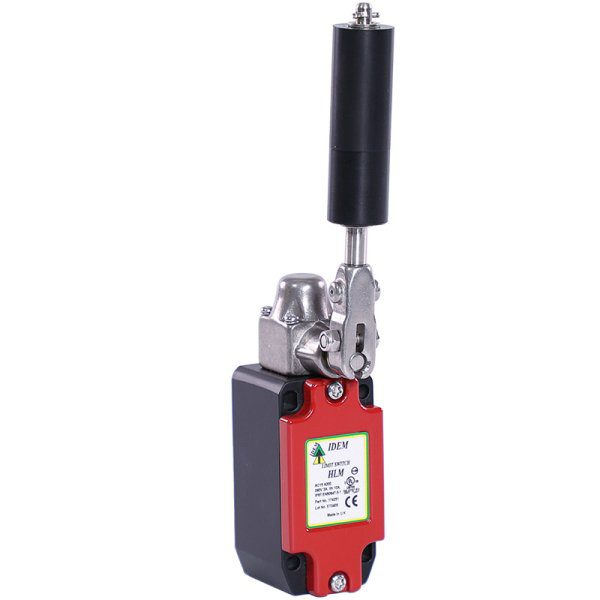

Mini Belt Alignment Switch |
| Housing Material: |
Painted Die-Cast Metal |
| UL Info: |
Type 1 Enclosures. Use 16 – 12AWG copper conductors, rated 75ºC minimum. Intended for same polarity use. Electrical Rating A300 240V.ac 3A. (6,000 cycles) 240V. 10A. carry only. Wire range 16AWG – 12AWG Copper Torque 7lb/in (0.8Nm) Earth bonding terminal inside enclosure if required. |
| Roller Material: |
316 Grade Stainless Steel or Polyester |
| Thermal Current (Ith): |
10A |
| Enclosure Protection: |
IP67 |
| Operating Temperature: |
-25 … +80 °C |
| Vibration: |
IEC 68-2-6, 10-55Hz 0.35mm |
| Fixing: |
M5 Bolts (Torque 2.0Nm) |
| Utilization Category: |
AC15 A300 240V. 3A |
| Min Current: |
5V, 5mA, DC |
| Rated Impulse Withstand Volt: |
2500VAC |
| Mechanical Life Expectancy: |
500,000 Cycles |
| Typical operating parameters: |
0.4Nm Torque 15-30 degrees contact changeover |
| Conductor Size: |
1.5 sq.mm |
