Idem 173007: LSPS-R 1NC 1NO Pin Plunger M20 Snap | Safety Switch Accessories

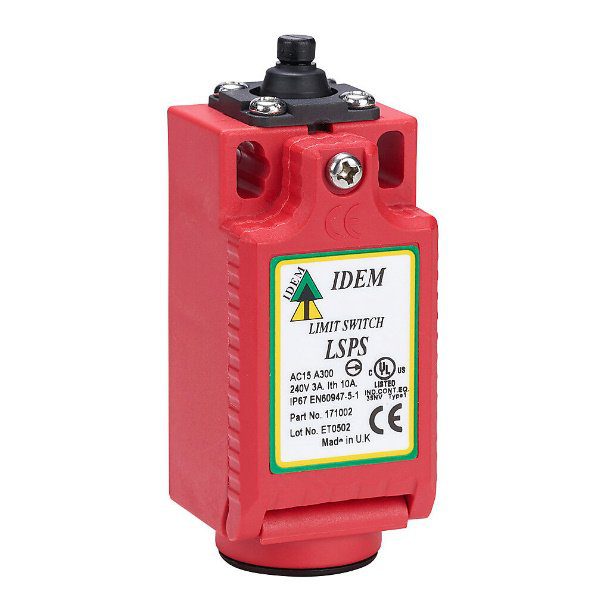

“Robust plastic safety limit switches with pin plunger mechanism.”

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Approvals: cULus
    Housing Material: UL approved glass-filled plastic
    UL Info: Type 1 Enclosures. Electrical Rating A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Braking PF >0.38 (100,000 cycles). 240V. 10A. carry only. Use 16 – 12AWG copper conductors, rated 90ºC minimum. Intended for same polarity use and one polymeric conduit connection.
    Thermal Current (Ith): 10A
    Enclosure Protection: IP67
    Operating Temperature: -25 … +80 °C
    Lever Material: Various Polymers Steels
    Positive Opening Operation: NC Contacts
    Utilization Category: AC15 A300 240V. 3A.
    Actuation Force /Torque for Positive Opening: 1.0Nm
    Min Current: 5V, 5mA, DC
    Rated Insulation Voltage: 300VAC
    Rated Impulse Withstand Volt: 2500VAC
    Max. Switching Speed: 250mm/s
    Mechanical Life Expectancy: 2,500,000 Cycles
    Electrical Life Expectancy At Full Load: 100,000 Cycle min.
    Product Number Variant Description
    173071 LSPS-R 1NC 1NO Lever Arm 1/2″NPT Snap
    173018 LSPS-R 1NC 1NO Roller Plunger QC-M12 Snap
    173017 LSPS-R 1NC 1NO Roller Plunger 1/2″NPT Snap
    173016 LSPS-R 1NC 1NO Roller Plunger M20 Snap
    173063 LSPS-R 1NC 1NO Adj Roller Lever QC-M12 Snap
    173062 LSPS-R 1NC 1NO Adj Roller Lever 1/2″NPT Snap
    173061 LSPS-R 1NC 1NO Adj Roller Lever M20 Snap
    173045 LSPS-R 1NC 1NO Roller Lever QC-M12 Snap
    173009 LSPS-R 1NC 1NO Pin Plunger QC-M12 Snap
    173008 LSPS-R 1NC 1NO Pin Plunger 1/2″NPT Snap
    173052 LSPS-R 1NC 1NO Lg Roller Lever M20 Snap
    173053 LSPS-R 1NC 1NO Lg Roller Lever 1/2″NPT Snap
    173054 LSPS-R 1NC 1NO Lg Roller Lever QC-M12 Snap
    173025 LSPS-R 1NC 1NO Hinge Lever M20 snap
    173026 LSPS-R 1NC 1NO Hinge Lever 1/2″NPT snap
    173027 LSPS-R 1NC 1NO Hinge Lever QC-M12 snap
    173044 LSPS-R 1NC 1NO Roller Lever 1/2″NPT Snap
    173043 LSPS-R 1NC 1NO Roller Lever M20 Snap
    173072 LSPS-R 1NC 1NO Lever Arm QC-M12 Snap
    173034 LSPS-R 1NC 1NO Long Hinge Lever M20 snap
    173035 LSPS-R 1NC 1NO Long Hinge Lever 1/2″NPT snap
    173036 LSPS-R 1NC 1NO Long Hinge Lever QC-M12 snap
    173070 LSPS-R 1NC 1NO Lever Arm M20 Snap
