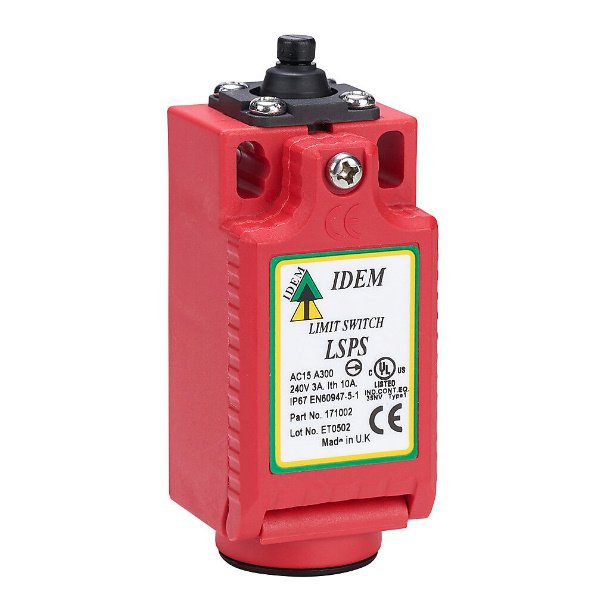

Idem 173004: LSPS-R 3NC Pin Plunger M20 | Safety Switch Accessories
“Durable plastic safety limit switches with pin plunger mechanism.”
| Attribute | Value |
|---|---|
| Approvals: | cULus |
| Housing Material: | UL approved glass-filled plastic |
| UL Info: | Type 1 Enclosures. Electrical Rating A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Braking PF >0.38 (100,000 cycles). 240V. 10A. carry only. Use 16 – 12AWG copper conductors, rated 90ºC minimum. Intended for same polarity use and one polymeric conduit connection. |
| Thermal Current (Ith): | 10A |
| Enclosure Protection: | IP67 |
| Operating Temperature: | -25 … +80 °C |
| Lever Material: | Various Polymers Steels |
| Positive Opening Operation: | NC Contacts |
| Utilization Category: | AC15 A300 240V. 3A. |
| Actuation Force /Torque for Positive Opening: | 1.0Nm |
| Min Current: | 5V, 5mA, DC |
| Rated Insulation Voltage: | 300VAC |
| Rated Impulse Withstand Volt: | 2500VAC |
| Max. Switching Speed: | 250mm/s |
| Mechanical Life Expectancy: | 2,500,000 Cycles |
| Electrical Life Expectancy At Full Load: | 100,000 Cycle min. |
| Product Number | Variant Description |
|---|---|
| 173013 | LSPS-R 3NC Roller Plunger M20 |
| 173015 | LSPS-R 3NC Roller Plunger QC-M12 |
| 173006 | LSPS-R 3NC Pin Plunger QC-M12 |
| 173005 | LSPS-R 3NC Pin Plunger 1/2″NPT |
| 173023 | LSPS-R 3NC Hinge Lever 1/2″NPT |
| 173024 | LSPS-R 3NC Hinge Lever QC-M12 |
| 173022 | LSPS-R 3NC Hinge Lever M20 |
| 173060 | LSPS-R 3NC Adj Roller Lever QC-M12 |
| 173014 | LSPS-R 3NC Roller Plunger 1/2″NPT |
| 173058 | LSPS-R 3NC Adj Roller Lever M20 |
| 173031 | LSPS-R 3NC Long Hinge Lever M20 |
| 173032 | LSPS-R 3NC Long Hinge Lever 1/2″NPT |
| 173033 | LSPS-R 3NC Long Hinge Lever QC-M12 |
| 173040 | LSPS-R 3NC Roller Lever M20 |
| 173041 | LSPS-R 3NC Roller Lever 1/2″NPT |
| 173059 | LSPS-R 3NC Adj Roller Lever 1/2″NPT |
| 173051 | LSPS-R 3NC Lg Roller Lever QC-M12 |
| 173067 | LSPS-R 3NC Lever Arm M20 |
| 173042 | LSPS-R 3NC Roller Lever QC-M12 |
| 173049 | LSPS-R 3NC Lg Roller Lever M20 |
| 173050 | LSPS-R 3NC Lg Roller Lever 1/2″NPT |
| 173069 | LSPS-R 3NC Lever Arm QC-M12 |
| 173068 | LSPS-R 3NC Lever Arm 1/2″NPT |
