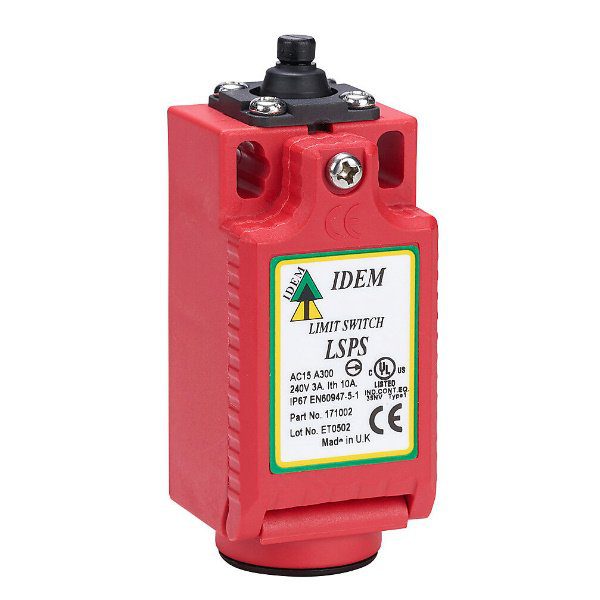

Idem 171007: LSPS 1NC 1NO Pin Plunger M20 Snap | Safety Switch Accessories
$56.10
“Durable plastic safety limit switches with pin plunger mechanism.”
| Attribute | Value |
|---|---|
| Approvals: | cULus |
| Housing Material: | UL approved glass-filled plastic |
| UL Info: | Type 1 Enclosures. Electrical Rating A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Braking PF >0.38 (100,000 cycles). 240V. 10A. carry only. Use 16 – 12AWG copper conductors, rated 90ºC minimum. Intended for same polarity use and one polymeric conduit connection. |
| Thermal Current (Ith): | 10A |
| Enclosure Protection: | IP67 |
| Operating Temperature: | -25 … +80 °C |
| Lever Material: | Various Polymers Steels |
| Positive Opening Operation: | NC Contacts |
| Utilization Category: | AC15 A300 240V. 3A. |
| Actuation Force /Torque for Positive Opening: | 1.0Nm |
| Min Current: | 5V, 5mA, DC |
| Rated Insulation Voltage: | 300VAC |
| Rated Impulse Withstand Volt: | 2500VAC |
| Max. Switching Speed: | 250mm/s |
| Mechanical Life Expectancy: | 2,500,000 Cycles |
| Electrical Life Expectancy At Full Load: | 100,000 Cycle min. |
| Product Number | Variant Description |
|---|---|
| 171098 | LSPS 1NC 1NO Spring Lever 1/2″NPT Snap |
| 171099 | LSPS 1NC 1NO Spring Lever QC-M12 Snap |
| 171009 | LSPS 1NC 1NO Pin Plunger QC-M12 Snap |
| 171097 | LSPS 1NC 1NO Spring Lever M20 Snap |
| 171089 | LSPS 1NC 1NO Plastic Spr Lever 1/2″NPT Snap |
| 171016 | LSPS 1NC 1NO Roller Plunger M20 Snap |
| 171017 | LSPS 1NC 1NO Roller Plunger 1/2″NPT Snap |
| 171018 | LSPS 1NC 1NO Roller Plunger QC-M12 Snap |
| 171025 | LSPS 1NC 1NO Hinge Lever M20 snap |
| 171026 | LSPS 1NC 1NO Hinge Lever 1/2″NPT snap |
| 171027 | LSPS 1NC 1NO Hinge Lever QC-M12 snap |
| 171034 | LSPS 1NC 1NO Long Hinge Lever M20 snap |
| 171035 | LSPS 1NC 1NO Long Hinge Lever 1/2″NPT snap |
| 171043 | LSPS 1NC 1NO Roller Lever M20 Snap |
| 171044 | LSPS 1NC 1NO Roller Lever 1/2″NPT Snap |
| 171045 | LSPS 1NC 1NO Roller Lever QC-M12 Snap |
| 171090 | LSPS 1NC 1NO Plastic Spr Lever QC-M12 Snap |
| 171052 | LSPS 1NC 1NO Lg Roller Lever M20 Snap |
| 171054 | LSPS 1NC 1NO Lg Roller Lever QC-M12 Snap |
| 171061 | LSPS 1NC 1NO Adj Roller Lever M20 Snap |
| 171062 | LSPS 1NC 1NO Adj Roller Lever 1/2″NPT Snap |
| 171063 | LSPS 1NC 1NO Adj Roller Lever QC-M12 Snap |
| 171070 | LSPS 1NC 1NO Lever Arm M20 Snap |
| 171071 | LSPS 1NC 1NO Lever Arm 1/2″NPT Snap |
| 171072 | LSPS 1NC 1NO Lever Arm QC-M12 Snap |
| 171079 | LSPS 1NC 1NO Cats Whisker M20 Snap |
| 171080 | LSPS 1NC 1NO Cats Whisker 1/2″NPT Snap |
| 171081 | LSPS 1NC 1NO Cats Whisker QC-M12 Snap |
| 171088 | LSPS 1NC 1NO Plastic Spr Lever M20 Snap |
| 171053 | LSPS 1NC 1NO Lg Roller Lever 1/2″NPT Snap |
| 171008 | LSPS 1NC 1NO Pin Plunger 1/2″NPT Snap |
| 171036 | LSPS 1NC 1NO Long Hinge Lever QC-M12 snap |
