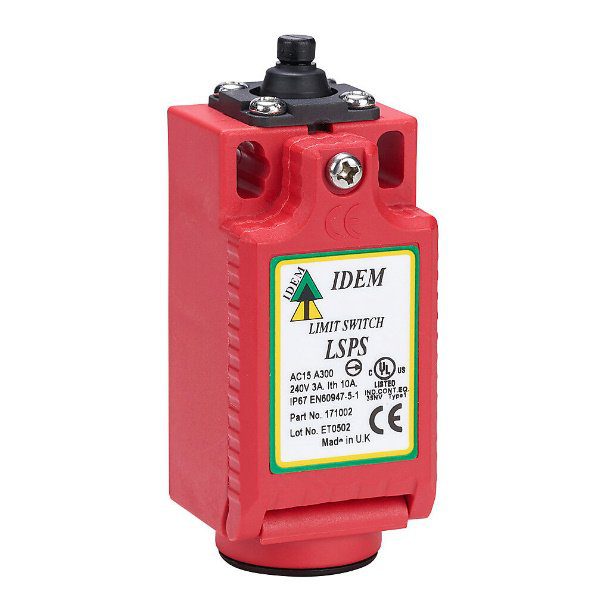

Name: Idem 171001: LSPS 2NC 1NO Pin Plunger M20
Brand: Venus Automation
SKU: 171001
Availability: InStock
Rating: 5 (1 reviews)

Idem 171001: LSPS 2NC 1NO Pin Plunger M20 | Safety Switch Accessories

“Plastic Safety Limit Switches with Pin Plunger for secure operation.”

Specifications Compliance & Variations

Attribute	Value
Approvals:	cULus
Housing Material:	UL approved glass-filled plastic
UL Info:	Type 1 Enclosures. Electrical Rating A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Braking PF >0.38 (100,000 cycles). 240V. 10A. carry only. Use 16 – 12AWG copper conductors, rated 90ºC minimum. Intended for same polarity use and one polymeric conduit connection.
Thermal Current (Ith):	10A
Enclosure Protection:	IP67
Operating Temperature:	-25 … +80 °C
Lever Material:	Various Polymers Steels
Positive Opening Operation:	NC Contacts
Utilization Category:	AC15 A300 240V. 3A.
Actuation Force /Torque for Positive Opening:	1.0Nm
Min Current:	5V, 5mA, DC
Rated Insulation Voltage:	300VAC
Rated Impulse Withstand Volt:	2500VAC
Max. Switching Speed:	250mm/s
Mechanical Life Expectancy:	2,500,000 Cycles
Electrical Life Expectancy At Full Load:	100,000 Cycle min.

Product Number	Variant Description
171055	LSPS 2NC 1NO Adj Roller Lever M20
171046	LSPS 2NC 1NO Lg Roller Lever M20
171028	LSPS 2NC 1NO Long Hinge Lever M20
171029	LSPS 2NC 1NO Long Hinge Lever 1/2″NPT
171030	LSPS 2NC 1NO Long Hinge Lever QC-M12
171048	LSPS 2NC 1NO Lg Roller Lever QC-M12
171047	LSPS 2NC 1NO Lg Roller Lever 1/2″NPT
171082	LSPS 2NC 1NO Plastic Spr Lever M20
171074	LSPS 2NC 1NO Cats Whisker 1/2″NPT
171083	LSPS 2NC 1NO Plastic Spr Lever 1/2″NPT
171037	LSPS 2NC 1NO Roller Lever M20
171091	LSPS 2NC 1NO Spring Lever M20
171038	LSPS 2NC 1NO Roller Lever 1/2″NPT
171039	LSPS 2NC 1NO Roller Lever QC-M12
171092	LSPS 2NC 1NO Spring Lever 1/2″NPT
171056	LSPS 2NC 1NO Adj Roller Lever 1/2″NPT
171093	LSPS 2NC 1NO Spring Lever QC-M12
171084	LSPS 2NC 1NO Plastic Spr Lever QC-M12
171073	LSPS 2NC 1NO Cats Whisker M20
171075	LSPS 2NC 1NO Cats Whisker QC-M12
171012	LSPS 2NC 1NO Roller Plunger QC-M12
171011	LSPS 2NC 1NO Roller Plunger 1/2″NPT
171065	LSPS 2NC 1NO Lever Arm 1/2″NPT
171066	LSPS 2NC 1NO Lever Arm QC-M12
171010	LSPS 2NC 1NO Roller Plunger M20
171057	LSPS 2NC 1NO Adj Roller Lever QC-M12
171064	LSPS 2NC 1NO Lever Arm M20
171002	LSPS 2NC 1NO Pin Plunger 1/2″NPT
171019	LSPS 2NC 1NO Hinge Lever M20
171020	LSPS 2NC 1NO Hinge Lever 1/2″NPT
171021	LSPS 2NC 1NO Hinge Lever QC-M12
171003	LSPS 2NC 1NO Pin Plunger QC
