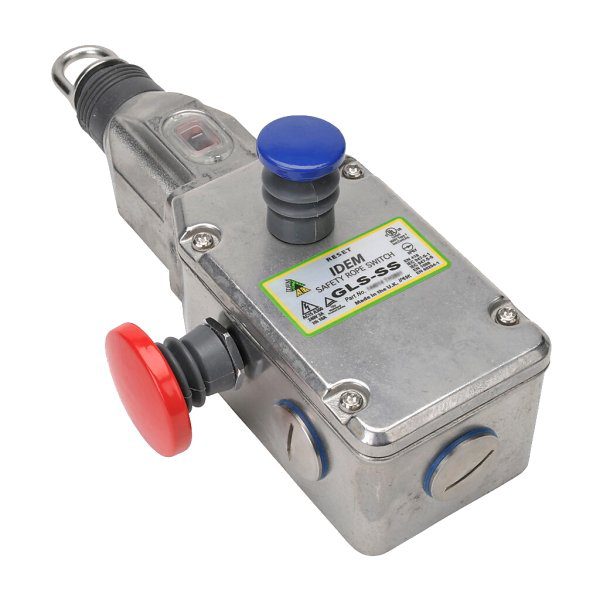

Idem 144005: GLS-SS 4NC M20 | Emergency Stop Solutions
“Reliable, standard-duty safety switches for industrial electrical systems.”
| Attribute | Value |
|---|---|
| Approvals: | TUV, cULus |
| Technology: | Safety Rope Pull Stop, |
| Housing Material: | 316 Grade Stainless Steel |
| ISO 13849-1: | up to PLe depending upon system architecture |
| UL Info: | FZ models for temperatures down to -40°C. Type 1 Enclosures. Temperature rating 80C. Use 16 – 12AWG copper conductors, rated 75ºC only. Intended for same polarity use and one polymeric conduit connection. Electrical Rating A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Breaking PF >0.38 (100,000 cycles) 240V. 10A. carry only. Wire range 16AWG – 12AWG Copper Torque 7lb/in (0.8Nm) LED powered by LVLC or Class 2 only. Earth bonding terminal inside enclosure if required. |
| Safety Contact Type: | IEC 60947-5-1 Double break Type Zb |
| Termination: | Clamp up to 2.5 sq. mm conductors |
| Rating: | Utilisation Category AC15 |
| Operational Rating: | AC15 A300 240V. 3A /120V 6A. ac 24V. 2.5A dc inductive |
| Thermal Current (Ith): | 10A |
| Rated Insulation Voltage (Ui): | 500V |
| Withstand Voltage (Uimp): | 2500V |
| Short Circuit Overload Protection: | Fuse Externally 10A. (FF) |
| Enclosure Protection: | IP67, IP69K (NEMA 6) |
| Operating Temperature: | -25 … +80 °C |
| Mounting: | 4 x M5 |
| Rope Spans: | Up to 100m |
| Rope Type: | 4.0mm Outside Dia. Steel inner-PVC sheath |
| Torque settings: | Mounting M5 4.0 Nm Lid T20 Torx M4 1.5 Nm Terminals 1.0 Nm |
| Vibration resistance: | 10-500Hz 0.35mm |
| Shock Resistance: | 15g 11ms |
| Tension Force (typical mid setting): | 130N |
| Typical Operating Force (Rope pulled): | < 125N. < 300mm Deflection |
| Mechanical Reliability B10d: | 1.5 x 10 6 operations at 100mA load |
| EN 62061: | up to SIL3 depending upon system architecture |
| Safety Data – Annual Usage: | 8 cycles per hour / 24 hours per day / 365 days MTTFd 214 years |
| ISO13849-1: | up to Category 4 with Safety Relay |
| Product Number | Variant Description |
|---|---|
| 144012A-FZ | GLS-SS 4NC 1/2″NPT LED 24V -40°C version |
| 144011B | GLS-SS 4NC M20 LED 110V |
| 144018 | GLS-SS 4NC 1/2″NPT E-Stop |
| 144017-FZ | GLS-SS 4NC M20 E-Stop -40°C version |
| 144017 | GLS-SS 4NC M20 E-Stop |
| 144012C-FZ | GLS-SS 4NC 1/2″NPT LED 230V -40°C version |
| 144012C | GLS-SS 4NC 1/2″NPT LED 230V |
| 144012B-FZ | GLS-SS 4NC 1/2″NPT LED 110V/120v -40°C version |
| 144006 | GLS-SS 4NC 1/2″NPT |
| 144012B | GLS-SS 4NC 1/2″NPT LED 110V |
| 144011C-FZ | GLS-SS 4NC M20 LED 230V -40°C version |
| 144011C | GLS-SS 4NC M20 LED 230V |
| 144011B-FZ | GLS-SS 4NC M20 LED 110V/120v -40°C version |
| 144011A-FZ | GLS-SS 4NC M20 LED 24V -40°C version |
| 144011A | GLS-SS 4NC M20 LED 24V |
| 144006-FZ | GLS-SS 4NC 1/2″NPT -40°C version |
| 144012A | GLS-SS 4NC 1/2″NPT LED 24V |
| 144023A | GLS-SS 4NC M20 E-Stop & LED 24V |
| 144018-FZ | GLS-SS 4NC 1/2″NPT E-Stop -40°C version |
| 144023B | GLS-SS 4NC M20 E-Stop & LED 110V |
| 144024C-FZ | GLS-SS 4NC 1/2″NPT E-Stop & LED 230V -40°C version |
| 144023A-FZ | GLS-SS 4NC M20 E-Stop & LED 24V -40°C version |
| 144024B-FZ | GLS-SS 4NC 1/2″NPT E-Stop & LED 110V/120v -40°C version |
| 144024B | GLS-SS 4NC 1/2″NPT E-Stop & LED 110V |
| 144024C | GLS-SS 4NC 1/2″NPT E-Stop & LED 230V |
| 144024A | GLS-SS 4NC 1/2″NPT E-Stop & LED 24V |
| 144023C-FZ | GLS-SS 4NC M20 E-Stop & LED 230V -40°C version |
| 144023C | GLS-SS 4NC M20 E-Stop & LED 230V |
| 144023B-FZ | GLS-SS 4NC M20 E-Stop & LED 110V/120v -40°C version |
| 144024A-FZ | GLS-SS 4NC 1/2″NPT E-Stop & LED 24V -40°C version |
| 144005-FZ | GLS-SS 4NC M20 -40°C version |
