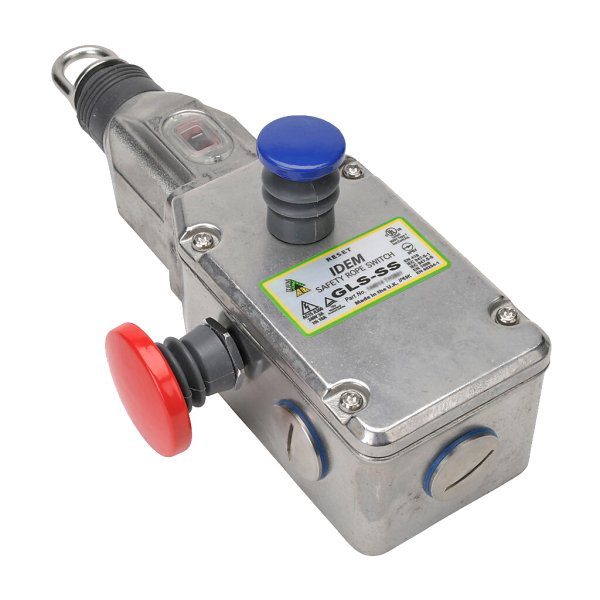

Idem 144001: GLS-SS 3NC 1NO M20 | Emergency Stop Solutions

“Reliable safety switches for managing and securing electrical systems.”

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Approvals: TUV, cULus
    Technology: Safety Rope Pull Stop,
    Housing Material: 316 Grade Stainless Steel
    ISO 13849-1: up to PLe depending upon system architecture
    UL Info: FZ models for temperatures down to -40°C. Type 1 Enclosures. Temperature rating 80C. Use 16 – 12AWG copper conductors, rated 75ºC only. Intended for same polarity use and one polymeric conduit connection. Electrical Rating A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Breaking PF >0.38 (100,000 cycles) 240V. 10A. carry only. Wire range 16AWG – 12AWG Copper Torque 7lb/in (0.8Nm) LED powered by LVLC or Class 2 only. Earth bonding terminal inside enclosure if required.
    Safety Contact Type: IEC 60947-5-1 Double break Type Zb
    Termination: Clamp up to 2.5 sq. mm conductors
    Rating: Utilisation Category AC15
    Operational Rating: AC15 A300 240V. 3A /120V 6A. ac 24V. 2.5A dc inductive
    Thermal Current (Ith): 10A
    Rated Insulation Voltage (Ui): 500V
    Withstand Voltage (Uimp): 2500V
    Short Circuit Overload Protection: Fuse Externally 10A. (FF)
    Enclosure Protection: IP67, IP69K (NEMA 6)
    Operating Temperature: -25 … +80 °C
    Mounting: 4 x M5
    Rope Spans: Up to 100m
    Rope Type: 4.0mm Outside Dia. Steel inner-PVC sheath
    Torque settings: Mounting M5 4.0 Nm Lid T20 Torx M4 1.5 Nm Terminals 1.0 Nm
    Vibration resistance: 10-500Hz 0.35mm
    Shock Resistance: 15g 11ms
    Tension Force (typical mid setting): 130N
    Typical Operating Force (Rope pulled): < 125N. < 300mm Deflection
    Mechanical Reliability B10d: 1.5 x 10 6 operations at 100mA load
    EN 62061: up to SIL3 depending upon system architecture
    Safety Data – Annual Usage: 8 cycles per hour / 24 hours per day / 365 days MTTFd 214 years
    ISO13849-1: up to Category 4 with Safety Relay
    Product Number Variant Description
    144020C-FZ GLS-SS 3NC 1NO 1/2″NPT E-Stop & LED 230V -40°C version
    144020C GLS-SS 3NC 1NO 1/2″NPT E-Stop & LED 230V
    144020-BS GLS-SS 3NC 1NO 1/2″NPT E-Stop & Steady LED 110V
    144020B-FZ GLS-SS 3NC 1NO 1/2″NPT E-Stop & LED 110V/120v -40°C version
    144020B GLS-SS 3NC 1NO 1/2″NPT E-Stop & LED 110V
    144020-AS GLS-SS 3NC 1NO 1/2″NPT E-Stop & Steady LED 24V
    144014 GLS-SS 3NC 1NO 1/2″NPT E-Stop
    144020A GLS-SS 3NC 1NO 1/2″NPT E-Stop & LED 24V
    144019C GLS-SS 3NC 1NO M20 E-Stop & LED 230V
    144019B-FZ GLS-SS 3NC 1NO M20 E-Stop & LED 110V/120v -40°C version
    144019B GLS-SS 3NC 1NO M20 E-Stop & LED 110V
    144019-AS GLS-SS 3NC 1NO M20 E-Stop & STEADY LED 24V
    144019A-FZ GLS-SS 3NC 1NO M20 E-Stop & LED 24V -40°C version
    144019A GLS-SS 3NC 1NO M20 E-Stop & LED 24V
    144020A-FZ GLS-SS 3NC 1NO 1/2″NPT E-Stop & LED 24V -40°C version
    144019C-FZ GLS-SS 3NC 1NO M20 E-Stop & LED 230V -40°C version
    144008B-FZ GLS-SS 3NC 1NO 1/2″NPT LED 110V/120v -40°C version
    144014-FZ GLS-SS 3NC 1NO 1/2″NPT E-Stop -40°C version
    144013-FZ GLS-SS 3NC 1NO M20 E-Stop -40°C version
    144007C GLS-SS 3NC 1NO M20 LED 230V
    144007B-FZ GLS-SS 3NC 1NO M20 LED 110V/120v -40°C version
    144007B GLS-SS 3NC 1NO M20 LED 110V
    144007-AS GLS-SS 3NC 1NO M20 Steady LED 24V
    144007A-FZ GLS-SS 3NC 1NO M20 LED 24V -40°C version
    144007A GLS-SS 3NC 1NO M20 LED 24V
    144013 GLS-SS 3NC 1NO M20 E-Stop
    144007C-FZ GLS-SS 3NC 1NO M20 LED 230V -40°C version
    144008A GLS-SS 3NC 1NO 1/2″NPT LED 24V
    144008A-FZ GLS-SS 3NC 1NO 1/2″NPT LED 24V -40°C version
    144008AS GLS-SS 3NC 1NO 1/2″NPT LED 24V (Steady)
    144002-FZ GLS-SS 3NC 1NO 1/2″NPT -40°C version
    144002 GLS-SS 3NC 1NO 1/2″NPT
    144001-V GLS-SS 3NC 1NO M20 with VITON seals
    144001-GC-V GLS-SS 3NC 1NO M20 with Gold Contact & Viton Seal
    144001-GC GLS-SS 3NC 1NO M20 with gold contacts
    144001-FZ GLS-SS 3NC 1NO M20 -40°C version
    144008B GLS-SS 3NC 1NO 1/2″NPT LED 110V
    144008C GLS-SS 3NC 1NO 1/2″NPT LED 230V
    144008C-FZ GLS-SS 3NC 1NO 1/2″NPT LED 230V -40°C version
