| Approvals: |
TUV, cULus |
| Technology: |

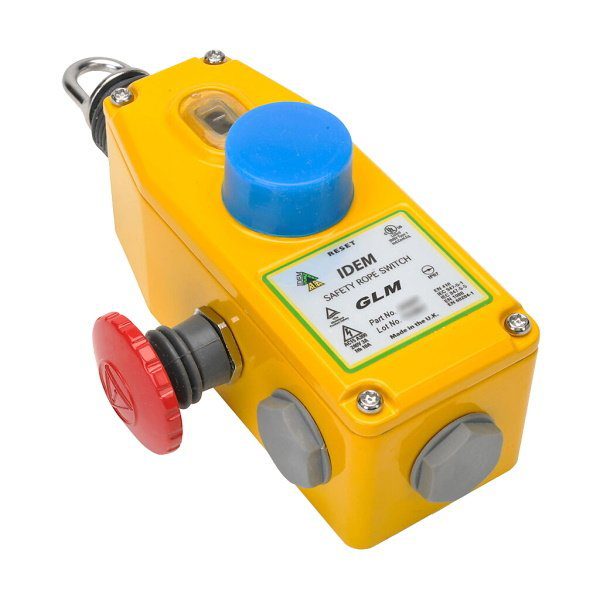

Safety Rope Pull Switch |
| Housing Material: |
Yellow Painted Die-Cast Metal |
| ISO 13849-1: |
up to PLe depending upon system architecture |
| UL Info: |
Type 1 Enclosures. Temperature rating 80C. Use 16 – 12AWG copper conductors, rated 75ºC only. Intended for same polarity use and one polymeric conduit connection. Electrical Rating A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Breaking PF >0.38 (100,000 cycles) 240V. 10A. carry only. Wire range 16AWG – 12AWG Copper Torque 7lb/in (0.8Nm) LED powered by LVLC or Class 2 only. Earth bonding terminal inside enclosure if required. |
| Safety Contact Type: |
IEC 60947-5-1 Double break Type Zb |
| Termination: |
Clamp up to 2.5 sq. mm conductors |
| Rating: |
Utilisation Category AC15 |
| Operational Rating: |
AC15 A300 240V. 3A /120V 6A. ac 24V. 2.5A dc inductive |
| Thermal Current (Ith): |
10A |
| Rated Insulation Voltage (Ui): |
500V |
| Withstand Voltage (Uimp): |
2500V |
| Short Circuit Overload Protection: |
Fuse Externally 10A. (FF) |
| Enclosure Protection: |
IP67 |
| Operating Temperature: |
-25 … +80 °C |
| Mounting: |
4 x M5 |
| Rope Spans: |
Up to 50m |
| Rope Type: |
4.0mm Outside Dia. Steel inner-PVC sheath |
| Torque settings: |
Mounting M5 4.0 Nm Lid T20 Torx M4 1.5 Nm Terminals 1.0 Nm |
| Vibration resistance: |
10-500Hz 0.35mm |
| Shock Resistance: |
15g 11ms |
| Tension Force (typical mid setting): |
130N |
| Typical Operating Force (Rope pulled): |
< 125N. < 300mm Deflection |
| Mechanical Reliability B10d: |
1.5 x 10 6 operations at 100mA load |
| EN 62061: |
up to SIL3 depending upon system architecture |
| Safety Data – Annual Usage: |
8 cycles per hour / 24 hours per day / 365 days MTTFd 214 years |
