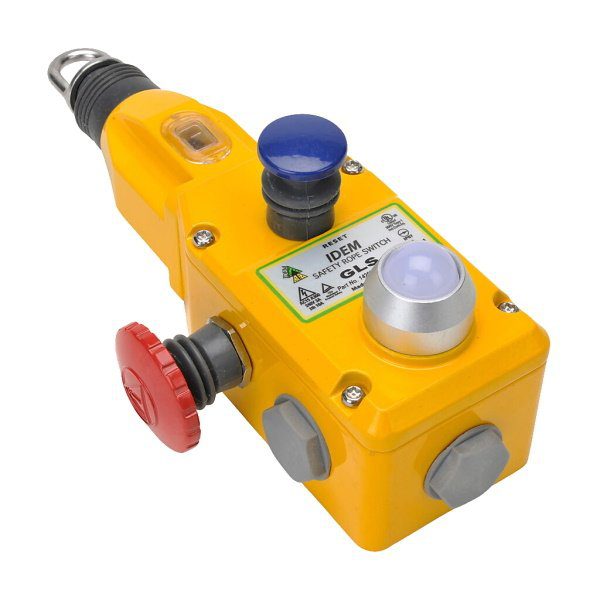

Idem 142017C-FZ: GLS 2NC 1NO M20 E-Stop & LED 230V -40°C version
$443.24
The GLS standard duty safety rope pull switch has been designed to protect medium to long conveyor lengths, where protection is required up to 100m (using 2 switches) or up to 80m (using 1 switch).
| Attribute | Value |
|---|---|
| Product Code: | 142017C-FZ |
| Prices To Upload: | 443.2376 |
| Technology: | Safety Rope Pull Switch |
| Housing Material: | Yellow Painted Die-Cast Metal |
| Enclosure Protection: | IP67 |
| Operating Temperature: | -25 … +80 °C |
| Approvals: | TUV, cULus |
| Short Circuit Overload Protection: | Fuse Externally 10A. (FF) |
| Thermal Current (Ith): | 10A |
| Rope Spans: | Up to 100m |
| Rope Type: | 4.0mm Outside Dia. Steel inner-PVC sheath |
| Mounting: | 4 x M5 |
| Torque settings: | Mounting M5 4.0 Nm Lid T20 Torx M4 1.5 Nm Terminals 1.0 Nm |
| Vibration resistance: | 10-500Hz 0.35mm |
| Shock Resistance: | 15g 11ms |
| Tension Force (typical mid setting): | 130N |
| Typical Operating Force (Rope pulled): | < 125N. < 300mm Deflection |
| Safety Contact Type: | IEC 60947-5-1 Double break Type Zb |
| Termination: | Clamp up to 2.5 sq. mm conductors |
| Rating: | Utilisation Category AC15 |
| Operational Rating: | AC15 A300 240V. 3A /120V 6A. ac 24V. 2.5A dc inductive |
| Rated Insulation Voltage (Ui): | 500V |
| Withstand Voltage (Uimp): | 2500V |
