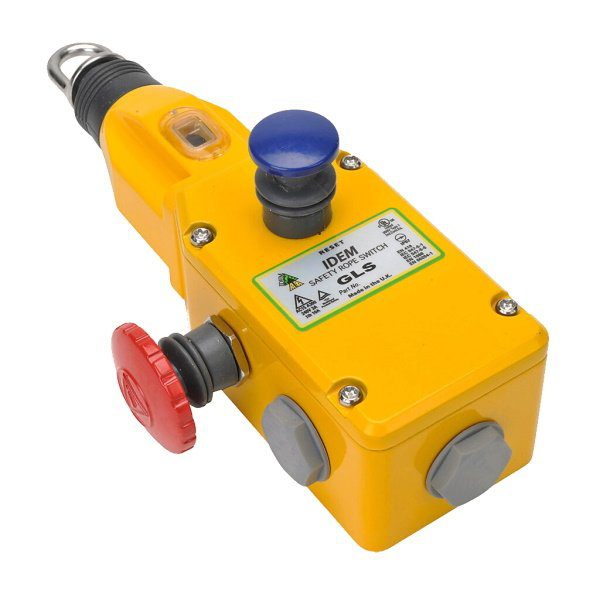

Idem 142001: GLS 2NC 1NO M20 | Emergency Stop Solutions

Standard Duty Rope Safety Switch for efficient electrical protection.

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Approvals: TUV, cULus
    Technology: Safety Rope Pull Switch
    Housing Material: Yellow Painted Die-Cast Metal
    ISO 13849-1: up to PLe depending upon system architecture
    UL Info: FZ models for temperatures down to -40°C. Type 1 Enclosures. Temperature rating 80C. Use 16 – 12AWG copper conductors, rated 75ºC only. Intended for same polarity use and one polymeric conduit connection. Electrical Rating A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Breaking PF >0.38 (100,000 cycles) 240V. 10A. carry only. Wire range 16AWG – 12AWG Copper Torque 7lb/in (0.8Nm) LED powered by LVLC or Class 2 only. Earth bonding terminal inside enclosure if required.
    Safety Contact Type: IEC 60947-5-1 Double break Type Zb
    Termination: Clamp up to 2.5 sq. mm conductors
    Rating: Utilisation Category AC15
    Operational Rating: AC15 A300 240V. 3A /120V 6A. ac 24V. 2.5A dc inductive
    Thermal Current (Ith): 10A
    Rated Insulation Voltage (Ui): 500V
    Withstand Voltage (Uimp): 2500V
    Short Circuit Overload Protection: Fuse Externally 10A. (FF)
    Enclosure Protection: IP67
    Operating Temperature: -25 … +80 °C (-40C. for -FZ versions)
    Mounting: 4 x M5
    Rope Spans: Up to 100m
    Rope Type: 4.0mm Outside Dia. Steel inner-PVC sheath
    Torque settings: Mounting M5 4.0 Nm Lid T20 Torx M4 1.5 Nm Terminals 1.0 Nm
    Vibration resistance: 10-500Hz 0.35mm
    Shock Resistance: 15g 11ms
    Tension Force (typical mid setting): 130N
    Typical Operating Force (Rope pulled): < 125N. < 300mm Deflection
    Mechanical Reliability B10d: 1.5 x 10 6 operations at 100mA load
    EN 62061: up to SIL3 depending upon system architecture
    Safety Data – Annual Usage: 8 cycles per hour / 24 hours per day / 365 days MTTFd 214 years
    Product Number Variant Description
    142301-Z GLS 2NC 1NO QC-M12 4pin PUR 400mm OSSD E-Stop & LED
    142300-Z GLS 2NC 1NO QC-M12 8way OSSD E-Stop & LED
    142076C-FZ GLS 2NC 2NO M20 E-Stop & LED 230V -40°C version
    142018C-FZ GLS 2NC 1NO 1/2″NPT E-Stop & LED 230V -40°C version
    142017C-FZ GLS 2NC 1NO M20 E-Stop & LED 230V -40°C version
    142017C GLS 2NC 1NO M20 E-Stop & LED 230V
    142017B-FZ GLS 2NC 1NO M20 E-Stop & LED 110V/120v -40°C version
    142017B GLS 2NC 1NO M20 E-Stop & LED 110V
    142017-AS GLS 2NC 1NO M20 E-Stop & Steady LED 24V
    142017A-FZ GLS 2NC 1NO M20 E-Stop & LED 24V -40°C version
    142017A GLS 2NC 1NO M20 E-Stop & LED 24V
    142010-FZ GLS 2NC 1NO 1/2″NPT E-Stop -40°C version
    142010 GLS 2NC 1NO 1/2″NPT E-Stop
    142009-QCM12 GLS 2NC 1NO QC-M12 E-Stop
    142009-FZ GLS 2NC 1NO M20 E-Stop -40°C version
    142009 GLS 2NC 1NO M20 E-Stop
    142059A-FZ GLS 2NC 2NO 1/2″NPT LED 24V -40°C version
    142006-C GLS 2NC 1NO 1/2″NPT LED 230V
    142006B-FZ GLS 2NC 1NO 1/2″NPT LED 110V/120v -40°C version
    142064 GLS 2NC 2NO M20 E-Stop
    142064-FZ GLS 2NC 2NO M20 E-Stop -40°C version
    142064-QCM23 GLS 2NC 2NO QC-M23 E-Stop
    142065 GLS 2NC 2NO 1/2″NPT E-Stop
    142018A GLS 2NC 1NO 1/2″NPT E-Stop & LED 24V
    142065-FZ GLS 2NC 2NO 1/2″NPT E-Stop -40°C version
    142018A-FZ GLS 2NC 1NO 1/2″NPT E-Stop & LED 24V -40°C version
    142018B-FZ GLS 2NC 1NO 1/2″NPT E-Stop & LED 110V/120v -40°C version
    142059A GLS 2NC 2NO 1/2″NPT LED 24V
    142058C-FZ GLS 2NC 2NO M20 LED 230V -40°C version
    142058C GLS 2NC 2NO M20 LED 230V
    142058B-FZ GLS 2NC 2NO M20 LED 110V/120v -40°C version
    142058B GLS 2NC 2NO M20 LED 110V
    142058A-FZ GLS 2NC 2NO M20 LED 24V -40°C version
    142059B GLS 2NC 2NO 1/2″NPT LED 110V
    142059B-FZ GLS 2NC 2NO 1/2″NPT LED 110V/120v -40°C version
    142059-BS GLS 2NC 2NO 1/2″NPT STEADY LED 110V
    142059C GLS 2NC 2NO 1/2″NPT LED 230V
    142059C-FZ GLS 2NC 2NO 1/2″NPT LED 230V -40°C version
    142058A GLS 2NC 2NO M20 LED 24V
    142053-FZ GLS 2NC 2NO 1/2″NPT -40°C version
    142053 GLS 2NC 2NO 1/2″NPT
    142052-QCM23 GLS 2NC 2NO QC-M23
    142052-FZ GLS 2NC 2NO M20 -40°C version
    142052 GLS 2NC 2NO M20
    142018-CS GLS 2NC 1NO 1/2″NPT E-Stop & Steady LED 230V
    142018C GLS 2NC 1NO 1/2″NPT E-Stop & LED 230V
    142018B GLS 2NC 1NO 1/2″NPT E-Stop & LED 110V
    142006-B GLS 2NC 1NO 1/2″NPT LED 110V
    142006C-FZ GLS 2NC 1NO 1/2″NPT LED 230V -40°C version
    142006-A GLS 2NC 1NO 1/2″NPT LED 24V
    142076B-FZ GLS 2NC 2NO M20 E-Stop & LED 110V/120v -40°C version
    142076C GLS 2NC 2NO M20 E-Stop & LED 230V
    142077A GLS 2NC 2NO 1/2″NPT E-Stop & LED 24V
    142077A-FZ GLS 2NC 2NO 1/2″NPT E-Stop & LED 24V -40°C version
    142077-AS GLS 2NC 2NO 1/2″NPT E-Stop & LED 24V
    142006A-FZ GLS 2NC 1NO 1/2″NPT LED 24V -40°C version
    142077B-FZ GLS 2NC 2NO 1/2″NPT E-Stop & LED 110V/120v -40°C version
    142077-BS GLS 2NC 2NO 1/2″NPT E-Stop & LED 110V
    142077C GLS 2NC 2NO 1/2″NPT E-Stop & LED 230V
    142077C-FZ GLS 2NC 2NO 1/2″NPT E-Stop & LED 230V -40°C version
    142076B GLS 2NC 2NO M20 E-Stop & LED 110V
    142005-C GLS 2NC 1NO M20 LED 230V
    142005-B GLS 2NC 1NO M20 LED 110V
    142005-AS GLS 2NC 1NO M20 Steady LED 24V
    142005A-FZ GLS 2NC 1NO M20 LED 24V -40°C version
    142005-A GLS 2NC 1NO M20 LED 24V
    142002-FZ GLS 2NC 1NO 1/2″NPT -40°C version
    142002 GLS 2NC 1NO 1/2″NPT
    142001-QCM12-5WAY GLS 2NC 1NO QC-M12-5way Siemens Safety 1/0
    142001-QC-M12-4WAY GLS 2NC 1NO QC-M12-4way
    142001-QCM12 GLS 2NC 1NO QC-M12
    142001-FZ GLS 2NC 1NO M20 -40°C version
    142005B-FZ GLS 2NC 1NO M20 LED 110V/120v -40°C version
    142076-AS GLS 2NC 2NO M20 E-Stop & Steady LED 24V
    142077B GLS 2NC 2NO 1/2″NPT E-Stop & LED 110V
    142076A GLS 2NC 2NO M20 E-Stop & LED 24V
    142005C-FZ GLS 2NC 1NO M20 LED 230V -40°C version
    142076A-FZ GLS 2NC 2NO M20 E-Stop & LED 24V -40°C version
    142059-AS GLS 2NC 2NO 1/2″NPT LED 24V
