Idem 140210: 8 port M12 Connection Box Coded Switches | Non-Contact Safety Switches
$375.10

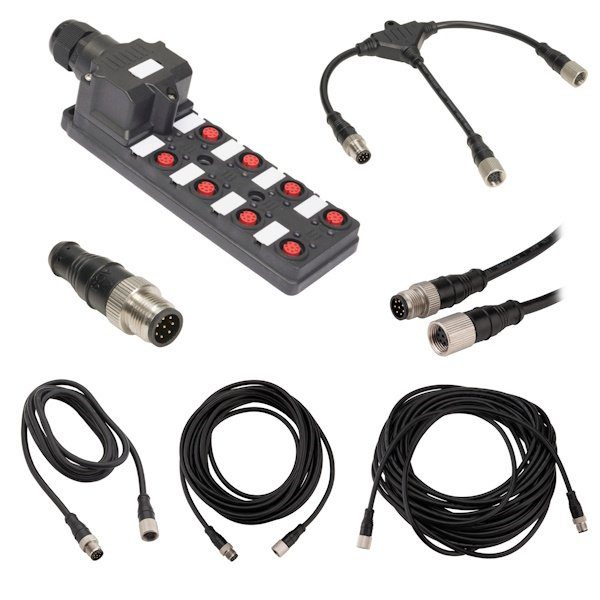

“IDEM’s accessories for secure, coded, RFID safety switch connections.”
| Attribute | Value |
|---|---|
| Indication: | LED 1-8 (Red) Auxiliary indication of switch open |
| Ambient Temperature: | -20 … +40 °C |
| Enclosure: | Type 1 |
| Body Material: | Polyester |
| Port Connection Type: | 8 x 8 Pin M12 Female sockets |
| Supply Voltage: | 24V.dc (+/- 10%) |
| Maximum Current: | 500mA |
| Internal Terminals: | Screw type – clamp 16-30AWG conductors |
| Cable Exit: | M20 cable gland |
| Mounting: | 2 x M4 bolts (4.6mm dia. clearance holes) |
| Accessory: | Shorting plug for unused ports |
| Maximum Temperature: | +40 °C |
| Terminals: | 16-30AWG conductors |
| Terminal Torque: | 6 lb-ins. (0.7Nm) |
| Product Number | Variant Description |
|---|---|
| 140215 | 8 Port connection box pre-wired 5M |
| 140214 | 8 port connection box Magnetic M12 way |
| 140213 | 8 Port connection box Magnetic Switches |
| 140210-Z | 8 Port M12 Connection Box Z Range |
| 140211 | 8 port M12 connection box Coded M12 way |
