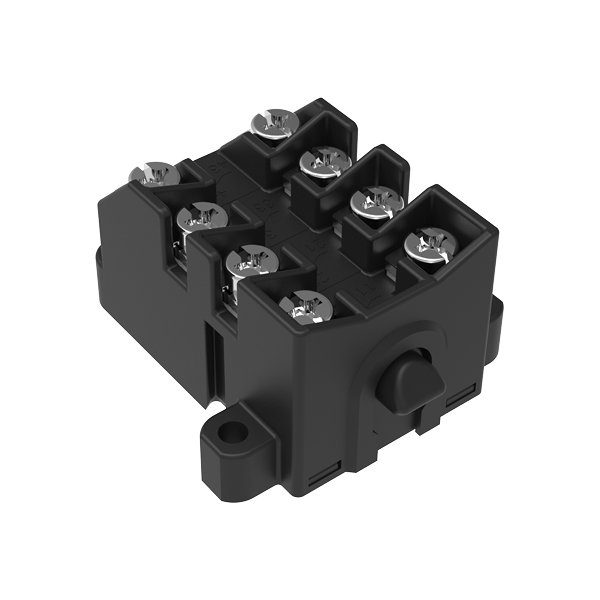

Idem 140063: BLOCK 4NC 4 pole Slow Break Side fixing & Tip | Safety Switch Accessories
“4-Pole side fixing and tip IDEM replacement contact block.”
| Attribute | Value |
|---|---|
| Safety Contact Type: | IEC 60947-5-1 Double break Type Zb |
| Termination: | Clamp up to 2.5 sq. mm conductors |
| Rating: | Utilisation Category AC15 |
| Operational Rating: | AC15 A300 240V. 3A /120V 6A. ac |
| Thermal Current (Ith): | 10A |
| Rated Insulation Voltage (Ui): | 500V |
| Withstand Voltage (Uimp): | 2500V |
| Short Circuit Overload Protection: | Fuse Externally 10A. (FF) |
| Product Number | Variant Description |
|---|---|
| 140063-GC | BLOCK 4NC 4 pole Slow Break Side fixing & Tip |
| 140116-GC | BLOCK 4NC 4 pole Slow Break End fixing no tip |
| 140116 | BLOCK 4NC 4 pole Slow Break End fixing no tip |
