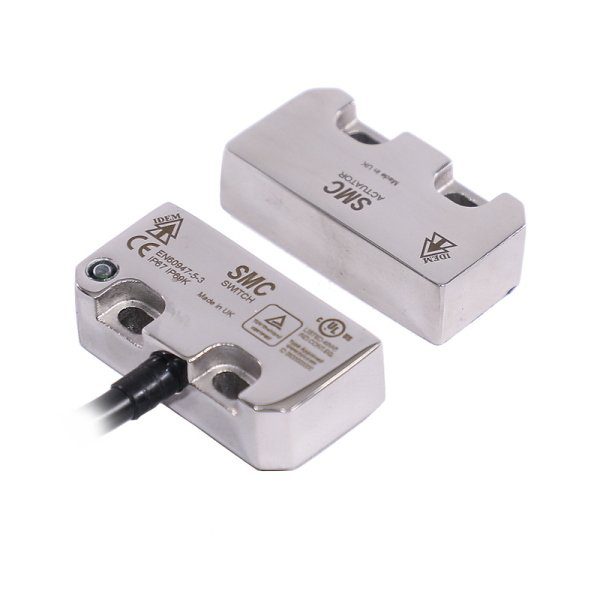

Idem 139003-C: SMC 2NC 10M with LED Special
$444.24
The Hygiecode range are magnetically coded, non-contact safety interlock switches have been developed for use on machinery and equipment to ensure the safety of the operators and prevent accidents.
| Attribute | Value |
|---|---|
| Product Code: | 139003-C |
| Prices To Upload: | 444.24039999999997 |
| Coding Level according to EN ISO 14119: | Low |
| Technology: | Coded Magnetic, Hall effect |
| Housing Material: | 316 Grade Stainless Steel |
| Normally Closed Contacts: | Up to 3 N/C Safety (When the Guard is Closed) |
| Normally Open Contacts: | Up to 1 N/O Auxiliary (When the Guard is Closed) |
| Tolerance to Misalignment: | 5mm in any Direction from 5mm Setting Gap |
| Connectivity: | 2m, 5m, 10m, M12 QC |
| Length: | 22.5mm |
| Width: | 50mm |
| Height: | 14mm |
| IP Rating: | IP67, IP69K ((QC Versions IP67 for Connector) |
| Ambient Temperature: | -25 … +105 °C |
| Storage Temperature: | -25 … +105 °C |
| Switching Frequency: | 1.0 Hz Maximum |
| Approach Speed: | 200mm/m. to 1000mm/s. |
| Cable: | PVC 6mm O.D. Conductors 0.25 sq.mm |
| Power Consumption: | 25mA Max. |
| Output Current: | 200mA (Minimum Internal Resistance 8.5ohms) |
| Response Time: | 60ms Maximum |
| Approvals: | TUV, cULus |
| Switching Distance: | Sao 8mm / Sar 20mm |
| Indication: | Green LED when Guard is Closed |
| Response Time (OFF): | 60ms Maximum |
| Maximum Switched Current (Outputs): | 200mA (Minimum Internal Resistance 8.5ohms) |
| ISO 13849-1: | Up to PLe Category 4 (if both channels are used with a PLe control device) |
| Pfhd: | 2.6 x 10-10 (1/h) |
| Proof Test Interval (life): | 20 years |
| Mttfd: | 866 years |
