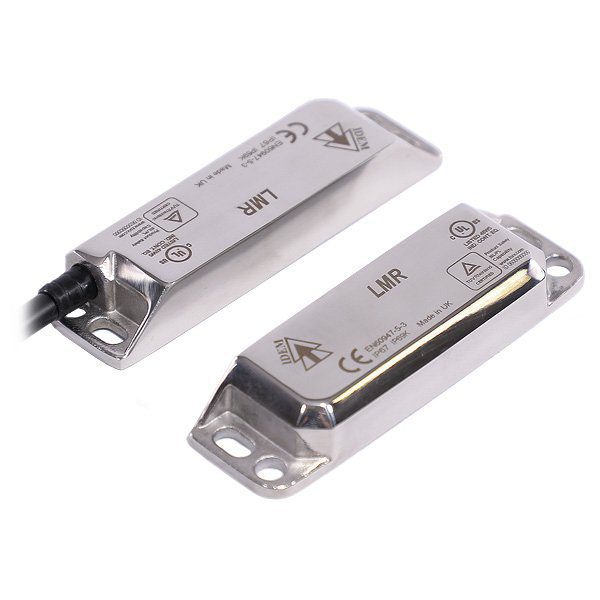

Idem 133016: LMR 2NC 1NO QC-M12 8way
$456.27
Explore the Idem 133016: LMR 2NC 1NO QC-M12 8way. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 133016 |
| Certificates: | TUV, cULus |
| Technology: | Magnetic |
| Housing Material: | 316 Grade Stainless Steel |
| Approach Speed: | 200mm/m. to 1000mm/s |
| Coding Level according to EN ISO 14119: | Low |
| Storage Temperature: | -25 … +105 °C |
| Tolerance to Misalignment: | 5mm in any direction from 5mm setting gap |
| Cable: | PVC 6.0mm OD Conductors 0.25 sq.mm |
| IP Rating: | IP67, IP69K |
| Connectivity: | 2m, 5m, 10m, M12 QC |
| Length: | 88mm |
| Width: | 25mm |
| Height: | 14mm |
| Ambient Temperature: | -25 … +105 °C |
| Normally Closed Contacts: | Up to 2 N/C Safety (When the Guard is Closed) |
| Normally Open Contacts: | Up to 1 N/O Auxiliary (When the Guard is Closed) |
| Switching Frequency: | 1.0Hz max. |
| Contact Release Time: | <2ms |
| Switching Current, Minimum: | 10V. Dc 1mA |
| Switching Voltage, Maximum (2NC): | 240V.ac / 24V.dc 1.0A. max. Fuse externally 0.8(F) |
| Auxiliary Circuits (NO): | 24V.ac/dc 0.2A. max. |
