Idem 114101: MPC 2NC Cable Right 2M with LED | Non-Contact Safety Switches
$189.20

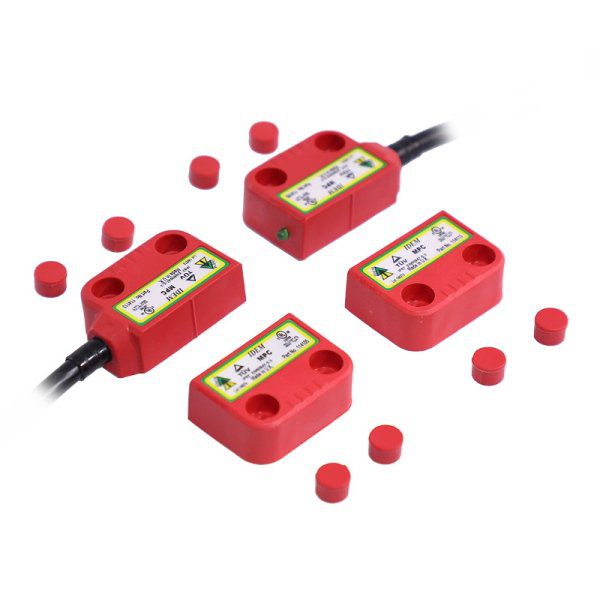

“MPC, a coded magnetic switch for non-contact safe interlocking.”
| Attribute | Value |
|---|---|
| Approvals: | TUV, cULus |
| Coding Level according to EN ISO 14119: | Low |
| Technology: | Coded Magnetic, Hall effect |
| Housing Material: | Red, Polyester |
| Normally Closed Contacts: | Up to 2 N/C Safety (When the Guard is Closed) |
| Normally Open Contacts: | Up to 1 N/O Auxiliary (When the Guard is Closed) |
| Switching Distance: | Sao 8mm / Sar 20mm |
| Response Time (OFF): | 60ms Maximum |
| Tolerance to Misalignment: | 5mm in any Direction from 5mm Setting Gap |
| Indication: | Green LED when Guard is Closed |
| Connectivity: | 2m, 5m, 10m, M12 QC |
| Length: | 41mm |
| Width: | 26mm |
| Height: | 13mm |
| IP Rating: | IP67 |
| Ambient Temperature: | -25 … +80 °C |
| Storage Temperature: | -25 … +80 °C |
| Power Consumption: | 25mA Max. |
| Maximum Switched Current (Outputs): | 200mA (Minimum Internal Resistance 8.5ohms) |
| Switching Frequency: | 1.0 Hz Maximum |
| Approach Speed: | 200mm/m. to 1000mm/s. |
| Cable: | PVC 6mm O.D. Conductors 0.25 sq.mm |
| ISO 13849-1: | Up to PLe Category 4 (if both channels are used with a PLe control device) |
| Pfhd: | 2.6 x 10-10 (1/h) |
| Proof Test Interval (life): | 20 years |
| Mttfd: | 866 years |
| UL Info: | Type 1 Enclosures. Maximum temperature 50ºC plastic versions, 70ºC S/Steel versions. Maximum output 24V.dc 100mA. Powered by Class 2 or equivalent. |
| Product Number | Variant Description |
|---|---|
| 114104 | MPC 2NC QC-M12 8way Cable Right with LED |
| 114102 | MPC 2NC Cable Right 5M with LED |
| 114103 | MPC 2NC Cable Right 10M with LED |
| 114105 | MPC 2NC 1NO Cable Right 2M with LED |
| 114106 | MPC 2NC 1NO Cable Right 5M with LED |
| 114107 | MPC 2NC 1NO Cable Right 10M with LED |
| 114108 | MPC 2NC 1NO QC-M12 8way Cable Right with LED |
| 114109 | MPC 2NC Cable Left 2M with LED |
| 114110 | MPC 2NC Cable Left 5M with LED |
| 114111 | MPC 2NC Cable Left 10M with LED |
| 114112 | MPC 2NC QC-M12 8way Cable Left with LED |
| 114113 | MPC 2NC 1NO Cable Left 2M with LED |
| 114114 | MPC 2NC 1NO Cable Left 5M with LED |
| 114115 | MPC 2NC 1NO Cable Left 10M with LED |
| 114116 | MPC 2NC 1NO QC-M12 8way Cable Left with LED |
