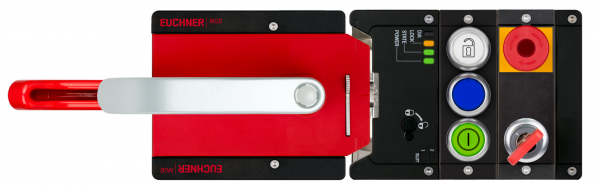

Euchner 169360E | MGB2-L1HE-MLI-U-CA-L-169360

The MGB2-L1HE-MLI-U-CA-L-169360 is an advanced safety switch designed for secure access control in automated systems, featuring multiple monitoring contacts and a robust design for reliable operation.

Request a quote

    Attribute Value
    Material: Fiber glass reinforced plastic, die-cast zinc, nickel plated
    Rated insulation voltage Ui: 75 V
    Rated impulse voltage Uimp: 0.5 kV
    Switching current: 1 … 100 mA
    Connection Type: 2x M4 screws
    Installation Orientation: any
    Degree of protection: IP65 (IP20)(when installed)
    Item designation: MGB2-L1HE-MLI-U-CA-L-169360
    Gross weight: 3,42kg
    ECLASS: 27-27-24-05 Safety-related transponder switch with guardlocking
    Rated voltage: 30 V
    Degree of contamination according to EN 60664-1: 3
    Type Specification: M12 EN 61076-2-101 / A-coded
    Number of pins: 5
    Insertion Cycles: 100
    EMC protection requirements: EMC Directive 2014/30/EU
    Safety Class: III
    Current consumption: max. 16 mA
    Degree of contamination (external, according to EN 60947-1): 3
    Switching frequency: 0.25 Hz
    Shock And Vibration Resistance: Acc. to EN IEC 60947-5-3
    Additional feature: incl. key, ID no. 165433
    Switching voltage: 5 … 24 V
    Product version number: V2.0.0
    Transponder coding: Unicode
    Breaking capacity: max. 0.25 W
    LED Power Supply: 24 V DC
    Locking force FZh: 2000 N
    Guard locking principle: Closed-circuit current principle
    Response time: See operating instructions for bus module MBM-… or interlocking/locking module MGB2-I.-BR-… / MGB2-L.-BR-…
    Color: black
    Submodulbreite: 1
    Software ID (SW ID): 168644
    Slotkonfiguration: 1,1
    Product Number Variant Description
    MGB2-L1HE-MLI-U-CA-L-169360 (No others)
