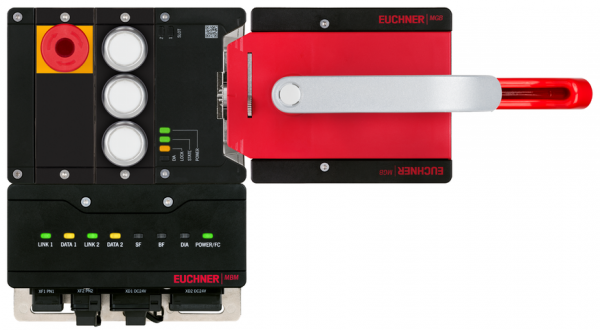

Euchner 165351E | MGB2-L1HEB-PN-U-S3-AA-R-165351 : Mgb2-L1Heb-Pn-U-S3-Aa-R-165351
The MGB2-L1HEB-PN-U-S3-AA-R-165351 is a robust safety switch module suitable for various industrial applications.
| Attribute | Value |
|---|---|
| Material: | Fiber glass reinforced plastic |
| Rated insulation voltage Ui: | 75 V |
| Rated impulse voltage Uimp: | 0.5 kV |
| Switching current: | 1 … 100 mA |
| Connection Type: | 2x M4 screws |
| Installation Orientation: | any |
| Degree of protection: | IP65(Only in the screwed tight state with the specified base units.) |
| Ambient temperature: | -30 … +55 °C |
| Item designation: | MGB2-L1HEB-PN-U-S3-AA-R-165351 |
| Gross weight: | 4,7kg |
| ECLASS: | 27-27-24-05 Safety-related transponder switch with guardlocking |
| Rated voltage: | 30 V |
| Degree of contamination according to EN 60664-1: | 3 |
| Type Specification: | M12 EN 61076-2-101 / A-coded |
| Number of pins: | 5 |
| Insertion Cycles: | 100 |
| EMC protection requirements: | EMC Directive 2014/30/EU |
| Safety Class: | III |
| Current consumption: | max. 12 mA |
| Degree of contamination (external, according to EN 60947-1): | 3 |
| Switching frequency: | 0.25 Hz |
| Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
| Switching voltage: | 5 … 24 V |
| Product version number: | V2.0.0 |
| Rated impulse withstand voltage Uimp: | 0.5 kV |
| Transponder coding: | Unicode |
| Breaking capacity: | max. 0.25 W |
| LED Power Supply: | 24 V DC |
| Locking force FZh: | 2000 N |
| Guard locking principle: | Closed-circuit current principle |
| Response time: | See operating instructions for bus module MBM-… or interlocking/locking module MGB2-I.-BR-… / MGB2-L.-BR-… |
| Color: | black |
| Bus Data Protocol: | Profinet (IEC 61158 type 10) |
| Safety Data Protocol: | Profisafe (IEC 61784-3-3) |
| Submodulbreite: | 1 |
| Software ID (SW ID): | 159480 |
| Slotkonfiguration: | 1,1 |
