| Rated insulation voltage Ui: |
50 V |
| Approach speed: |
max. 20 m/min |
| Connection Type: |
1 plug connector M23, 19-pin, RC18 |
| Actuating force: |
10 N |
| Installation Orientation: |
Door hinge DIN right |
| Mechanical Life: |
1 x 10? |
| Degree of protection: |
IP65(screwed tight plug connector/mating component) |
| Item designation: |

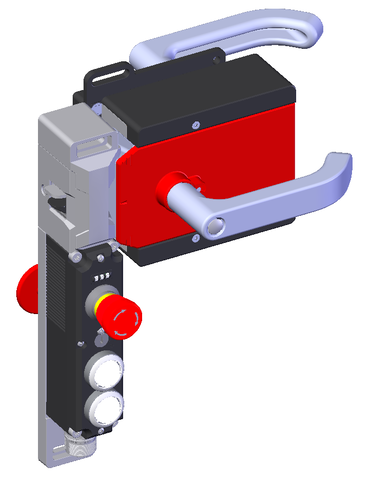

MGBS-P-L2HE-AR-U-R-SH-164688 |
| Gross weight: |
4,7kg |
| ECLASS: |
27-27-24-05 Safety-related transponder switch with guardlocking |
| Turn-on time: |
max. 400 ms |
| EMC protection requirements: |
Acc. to EN IEC 60947-5-3 |
| Risk time according to EN 60947-5-3: |
max. 260 ms |
| Risk time according to EN 60947-5-3, extension for each additional device: |
max. 5 ms |
| Degree of contamination (external, according to EN 60947-1): |
3 |
| Output Type: |
2 semiconductor outputs, p-switching, short circuit-proof |
| Off-state Current Ir: |
max. 0.25 mA |
| Test Pulse Duration: |
max. 1.0 ms(Applies to a load with C<= 30 nF and R<= 20 kohm) |
| Test Pulse Interval: |
min. 140 ms |
| Ready Delay: |
8 s |
| Switching frequency: |
max. 0.5 Hz |
| Shock And Vibration Resistance: |
Acc. to EN IEC 60947-5-3 |
| Overtravel: |
5 mm |
| Switching voltage: |
5 … 24 V |
| Product version number: |
V1.0.0 |
| Rated impulse withstand voltage Uimp: |
0.5 kV |
| Breaking capacity: |
max. 0.25 W |
| Locking force FZh: |
3000 N(Fzh = Fmax/1.3, depending on the actuator used) |
| Guard locking principle: |
Open-circuit current principle |
| Operating voltage: |
UB V |
| Operating current: |
1 … 50 mA |
| Extraction Force: |
20 N |
| Retention Force: |
20 N |
| Locking force Fmax: |
3900 N |
| Power consumption: |
6 W |
| Solenoid Duty Cycle: |
100 % |
| The following applies to the approval according to UL: |
Operation only with UL Class 2 power supply or equivalent measures; see operating instructions |
