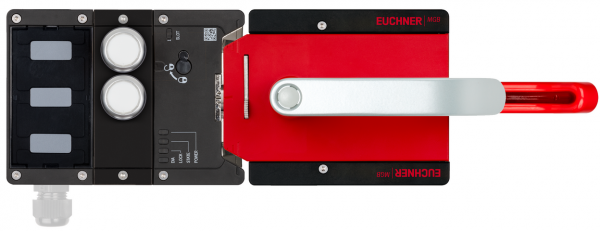

Euchner 164399E | MGB2-L2HE-BR-U-S0-DY-R-164399 : Mgb2-L2He-Br-U-S0-Dy-R-164399

The MGB2-L2HE-BR-U-S0-DY-R-164399 offers advanced safety features and is suitable for various industrial applications.

Request a quote

    Attribute Value
    Material: Fiber glass reinforced plastic
    Rated insulation voltage Ui: 75 V
    Rated impulse voltage Uimp: 1.5 kV
    Switching current: 5 … 10 mA
    Connection Type: 2x M4 screws
    Installation Orientation: any
    Degree of protection: IP65(Only in the screwed tight state with the specified base units.)
    Ambient temperature: -30 … +55 °C
    Item designation: MGB2-L2HE-BR-U-S0-DY-R-164399
    Gross weight: 3,325kg
    ECLASS: 27-27-24-05 Safety-related transponder switch with guardlocking
    Degree of contamination according to EN 60664-1: 3
    Turn-on time: max. 80 ms
    Risk time according to EN 60947-5-3: max. 50 ms
    Risk time according to EN 60947-5-3, extension for each additional device: max. 10 ms
    Safety Class: III
    Degree of contamination (external, according to EN 60947-1): 3
    Output Type: Semiconductor outputs, p-switching, short circuit-proof
    Test Pulse Duration: max. 5 ms
    Test Pulse Interval: min. 100 ms
    Ready Delay: 5 s
    Switching frequency: 0.25 Hz
    Shock And Vibration Resistance: Acc. to EN IEC 60947-5-3
    Switching voltage: 24 V
    Product version number: V2.0.0
    Transponder coding: Unicode
    Breaking capacity: max. 0.25 W
    LED Power Supply: 24 V DC
    Locking force FZh: 2000 N
    Guard locking principle: Open-circuit current principle
    Color: black
    Submodulbreite: 1
    Software ID (SW ID): 137742
    Slotkonfiguration: 1
    Product Number Variant Description
    MGB2-L2HE-BR-U-S0-DY-R-164399 : Mgb2-L2He-Br-U-S0-Dy-R-164399 MGB2-L1HE-BR-U-S0-DY-R-164367 : Mgb2-L1He-Br-U-S0-Dy-R-164367
    MGB2-L2HE-BR-U-S0-DY-R-164399 : Mgb2-L2He-Br-U-S0-Dy-R-164399 MGB2-L1HE-BR-U-S0-DY-L-164370 : Mgb2-L1He-Br-U-S0-Dy-L-164370
    MGB2-L2HE-BR-U-S0-DY-R-164399 : Mgb2-L2He-Br-U-S0-Dy-R-164399 MGB2-L2HE-BR-U-S0-DY-R-164378 : Mgb2-L2He-Br-U-S0-Dy-R-164378
    MGB2-L2HE-BR-U-S0-DY-R-164399 : Mgb2-L2He-Br-U-S0-Dy-R-164399 MGB2-L2HE-BR-U-S0-DY-L-164385 : Mgb2-L2He-Br-U-S0-Dy-L-164385
    MGB2-L2HE-BR-U-S0-DY-R-164399 : Mgb2-L2He-Br-U-S0-Dy-R-164399 MGB2-L1HE-BR-U-S0-DY-R-164393 : Mgb2-L1He-Br-U-S0-Dy-R-164393
    MGB2-L2HE-BR-U-S0-DY-R-164399 : Mgb2-L2He-Br-U-S0-Dy-R-164399 MGB2-L1HE-BR-U-S0-DY-L-164396 : Mgb2-L1He-Br-U-S0-Dy-L-164396
    MGB2-L2HE-BR-U-S0-DY-R-164399 : Mgb2-L2He-Br-U-S0-Dy-R-164399 MGB2-L2HE-BR-U-S0-DY-L-164402 : Mgb2-L2He-Br-U-S0-Dy-L-164402
