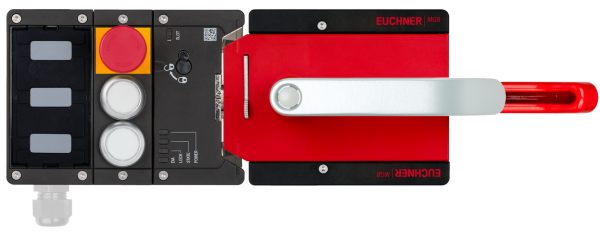

Euchner 164367E | MGB2-L1HE-BR-U-S0-DY-R-164367, Multifunctional Gate Box
$4,068.89
Explore the Euchner 164367E | MGB2-L1HE-BR-U-S0-DY-R-164367, Multifunctional Gate Box. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 164367E |
| Connection Type: | 2x M4 screws |
| Installation Orientation: | any |
| Storage temperature: | -30 … 70 °C |
| Degree of protection: | IP65(Only in the screwed tight state with the specified base units.) |
| Ambient temperature: | -30 … 55 °C |
| Order Number: | 164367 |
| Item designation: | MGB2-L1HE-BR-U-S0-DY-R-164367 |
| Gross weight: | 3,34kg |
| Customs tariff number: | 85371098 |
| ECLASS: | 27-27-24-05 Safety-related transponder switch with guardlocking |
| Material: | Fiber glass reinforced plastic |
| Product version number: | V2.0.0 |
| Rated insulation voltage Ui: | 75 V |
| Rated impulse voltage Uimp: | 1.5 kV |
| Safety Class: | III |
| Current consumption: | max. 24 mA |
| Transponder coding: | Unicode |
| Degree of contamination (external, according to EN 60947-1): | 3 |
| Switching frequency: | 0.25 Hz |
| Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
| Locking force FZh: | 2000 N |
| Guard locking principle: | Closed-circuit current principle |
| Switching voltage: | 5 … 24 V |
| Switching current: | 1 … 100 mA |
| Output Type: | Semiconductor outputs, p-switching, short circuit-proof |
| Breaking capacity: | max. 0.25 W |
| Submodule Width: | 1 |
| Slot Configuration: | 1 |
| Degree of contamination according to EN 60664-1: | 3 |
| LED Power Supply: | 24 V DC |
| Color: | black |
| Test Pulse Duration: | max. 5 ms |
| Risk time according to EN 60947-5-3: | max. 50 ms |
| Risk time according to EN 60947-5-3, extension for each additional device: | max. 10 ms |
| Test Pulse Interval: | min. 100 ms |
| Turn-on time: | max. 80 ms |
| Ready Delay: | 5 s |
