Euchner 163855E | MSM-1-P-CA-PQD-E9-163855 : Msm-1-P-Ca-Pqd-E9-163855

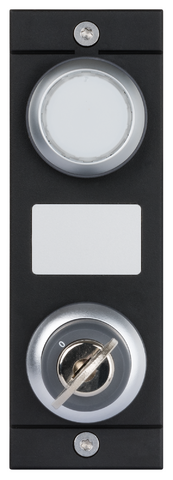

The MSM-1-P-CA-PQD-E9 is a compact and robust safety module that ensures reliable performance in various applications.

Request a quote

    Attribute Value
    Material: Fiber glass reinforced plastic, die-cast zinc, nickel plated
    Switching current: 5 … 10 mA
    Installation Orientation: any
    Degree of protection: IP65 (IP20)(when installed)
    Item designation: MSM-1-P-CA-PQD-E9-163855
    Gross weight: 0,145kg
    ECLASS: 27-24-26-05 Field bus, decentralized peripheral – function-/technology module
    Current consumption: max. 14 mA
    Shock And Vibration Resistance: Acc. to EN IEC 60947-5-3
    Switching voltage: 24 V
    Breaking capacity: max. 0.25 W
    LED Power Supply: 24 V DC
    Submodulbreite: 1
    Software ID (SW ID): 163855
    Product Number Variant Description
    MSM-1-P-CA-PQD-E9-163855 : Msm-1-P-Ca-Pqd-E9-163855 (No others)
