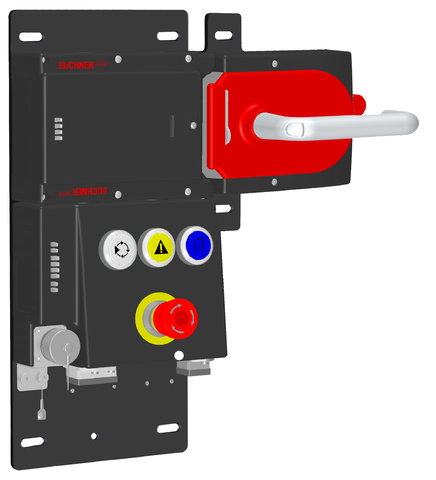

Euchner 163750E | MGB-L2HEB-PNC-R-163750 : Multifunctional Gate Box Complete
The Multifunctional Gate Box Complete is designed to provide comprehensive control and safety features for gate operations.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 75 V |
Rated impulse voltage Uimp: | 0.5 kV |
Installation Orientation: | any |
Mechanical Life: | 1 x 10? |
Degree of protection: | IP54 |
Ambient temperature: | -30 … +55 °C |
Item designation: | MGB-L2HEB-PNC-R-163750 |
Gross weight: | 6,44kg |
ECLASS: | 27-27-24-05 Safety-related transponder switch with guardlocking |
EMC protection requirements: | In accordance with EN 61000-4 and EN 61326-3-1 |
Safety Class: | III |
Current consumption: | max. 500 mA |
Degree of contamination (external, according to EN 60947-1): | 3 |
Switching frequency: | 0.25 Hz |
Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
Additional feature: | with shaft and sleeve – special length (shaft = 112Â mm / sleeve = 44.5Â mm) |
Product version number: | V2.0.0 |
Transponder coding: | Multicode |
Locking force FZh: | 2000 N |
Guard locking principle: | Open-circuit current principle |
Rated operating distances Sn: | 20 mm(Only applies for use on sliding doors with deactivated guard lock monitoring) |
Bus Data Protocol: | Profinet (IEC 61158 type 10) |
Safety Data Protocol: | Profisafe (IEC 61784-3-3) |
Product Number | Variant Description |
---|---|
MGB-L2HEB-PNC-R-163750 : Multifunctional Gate Box Complete | (No others) |
