| Connection Type: |
Male plug |
| Degree of protection: |
IP65/IP67(in the inserted state) |
| Item designation: |

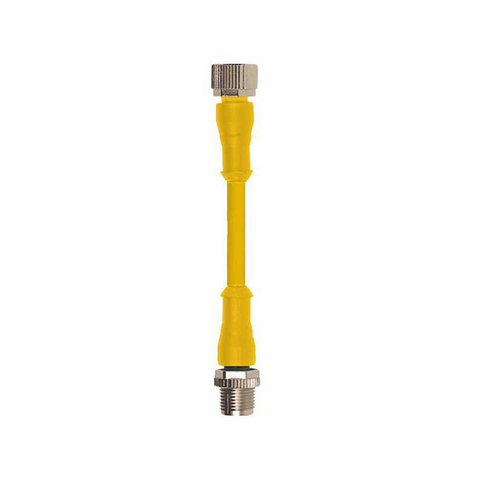

C-M12F05-05X034PU0,22-M12M05-163573 |
| Gross weight: |
0,3kg |
| ECLASS: |
27-06-03-04 Appliance cord (data cable) |
| Rated surge voltage according to IEC 60664-1: |
1500 V |
| Degree of contamination according to EN 60664-1: |
3 |
| Cable Outlet: |
straight |
| Number of pins: |
5 |
| Plug lock: |
Screw connection |
| Insertion Cycles: |
100 |
| Dynamic bending radius: |
7.5 x cable diameter |
| Static bending radius: |
4 x cable diameter |
| Cable ambient temperature (dynamic): |
-25 … +90 °C |
| Cable ambient temperature (static): |
-25 … +90 °C |
| Overvoltage category according to IEC EN 60664-1: |
II |
| Cable length: |
0.22 m |
| Conductor Identification: |
Color code |
| Conductor Cross-section: |
0.34 mm² |
| Number of conductors: |
5 |
| Fire Behavior: |
flame retardant according to IEC 60332-1-2, UL 758/1581 VW-1, UL 758/1581 FT1 |
| Cable Type: |
straight |
| Sheath Color: |
Yellow |
| Resistance to media: |
Resistant to welding sparks |
| Drag chain suitability: |
yes |
| Silicone-free: |
yes |
| Halogen-free: |
yes, according to DIN VDE 0472 part 815 |
