| Connection Type: |
Female plug |
| Degree of protection: |
IP67 |
| Item designation: |

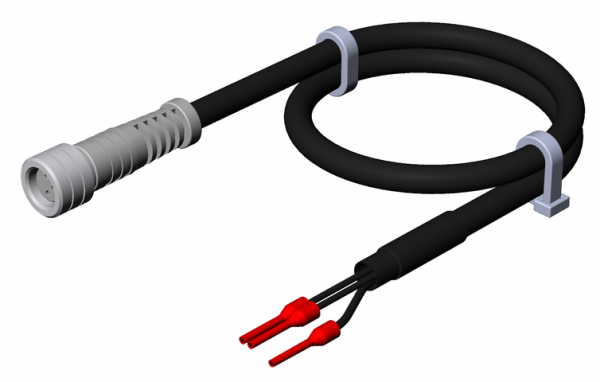

C-M08F03-02X025PV20,0-ES-077716 |
| Gross weight: |
0,615kg |
| ECLASS: |
27-06-03-04 Appliance cord (data cable) |
| Rated surge voltage according to IEC 60664-1: |
1500 V |
| Degree of contamination according to EN 60664-1: |
3 |
| Cable Outlet: |
straight |
| Number of pins: |
3 |
| Plug lock: |
Screw connection |
| Insertion Cycles: |
100 |
| Tightening torque: |
0.4 Nm |
| Dynamic bending radius: |
10x cable diameter |
| Static bending radius: |
5x cable diameter |
| Cable ambient temperature (dynamic): |
-5 … +70 °C |
| Cable ambient temperature (static): |
-25 … +80 °C |
| Test voltage: |
0.5 kV |
| Cable length: |
20 m |
| Cable shielding: |
yes |
| Specific Inductance: |
0.65 mH/km |
| Specific Capacitance: |
160 nF/km |
| Conductor Identification: |
Color code |
| Conductor Cross-section: |
0.25 mm² |
| Number of conductors: |
2 |
| Fire Behavior: |
self-extinguishing and flame retardant according to IEC 60332-1-2 |
| Insulating material group: |
II |
| Cable Type: |
straight |
| Sheath Color: |
black |
| Resistance to media: |
largely resistant to certain oils, acids and alkalis |
| Drag chain suitability: |
no |
| Silicone-free: |
yes |
| UV resistance: |
yes |
| Conductor End: |
Cable end sleeve |
| Plug connector designation: |
M8x1 |
