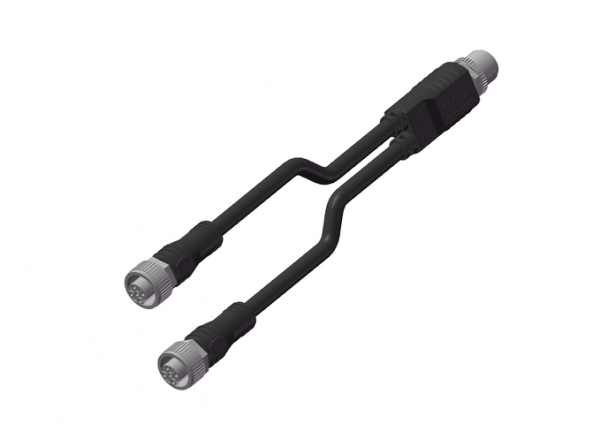

Euchner 161909E | AC-YD-U0,2-SBB-161909 : Ac-Yd-U0,2-Sbb-161909
The AC-YD-U0,2-SBB-161909 is a reliable actuator designed for precise control in various applications.
| Attribute | Value |
|---|---|
| Rated insulation voltage Ui: | 300 V |
| Rated impulse voltage Uimp: | 0.8 kV |
| Connection Type: | Male plug |
| Degree of protection: | IP65/IP67(Only in the screwed tight state with related mating components) |
| Ambient temperature: | -25 … +80 °C |
| Item designation: | AC-YD-U0,2-SBB-161909 |
| Gross weight: | 0,055kg |
| Rated voltage: | 30 V |
| Contact Resistance: | 5 m? |
| Degree of contamination according to EN 60664-1: | 3 |
| Cable Outlet: | straight |
| Number of pins: | 8 |
| Plug lock: | Screw terminal |
| Insertion Cycles: | >100 |
| Sheath Color: | Black |
| Product Number | Variant Description |
|---|---|
| AC-YD-U0,2-SBB-161909 : Ac-Yd-U0,2-Sbb-161909 | (No others) |
