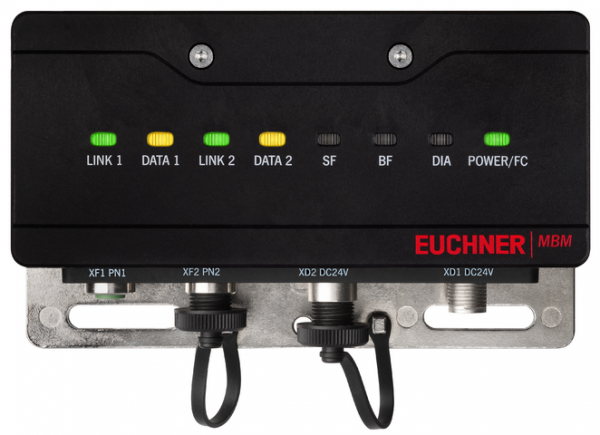

Euchner 161849E | MBM-PN-S2-MLI-3B-161849 : Busmodul Profinet Mbm-Pn-S2-Mli-3B-16184
The Busmodul Profinet Mbm-Pn-S2-Mli-3B-161849 is a communication module that facilitates seamless integration of Profinet networks in industrial automation.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 75 V |
Rated impulse voltage Uimp: | 0.5 kV |
Connection Type: | Male plug |
Installation Orientation: | any |
Degree of protection: | IP65(In the closed state when the connection cables, connecting cables and submodules are correctly mounted; assembly.) |
Item designation: | MBM-PN-S2-MLI-3B-161849 |
Gross weight: | 0,825kg |
ECLASS: | 27-24-26-07 Field bus, decentralized peripheral – basic device |
Type Specification: | M12 EN 61076-2-101 / A-coded |
Number of pins: | 5 |
Insertion Cycles: | 100 |
EMC protection requirements: | EMC Directive 2014/30/EU |
Safety Class: | III |
Current consumption: | max. 150 mA |
Degree of contamination (external, according to EN 60947-1): | 3 |
Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
Bus Data Protocol: | Profinet (IEC 61158 type 10) |
Safety Data Protocol: | Profisafe (IEC 61784-3-3) |
Product Number | Variant Description |
---|---|
MBM-PN-S2-MLI-3B-161849 : Busmodul Profinet Mbm-Pn-S2-Mli-3B-16184 | (No others) |
