| Material: |
Fiber glass reinforced plastic |
| Rated insulation voltage Ui: |
75 V |
| Switching current: |
1 … 100 mA |
| Connection Type: |
2x M4 screws |
| Installation Orientation: |
any |
| Degree of protection: |
IP65(Only in the screwed tight state with the specified base units.) |
| Ambient temperature: |
-30 … +55 °C |
| Item designation: |

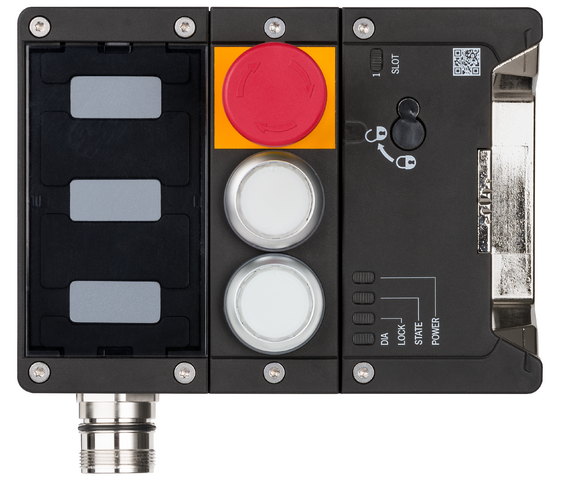

MGB2-L2-BR-U-XB2S1-DY-R-161781 |
| Gross weight: |
1,5kg |
| ECLASS: |
27-27-24-05 Safety-related transponder switch with guardlocking |
| Degree of contamination according to EN 60664-1: |
3 |
| Number of pins: |
19 |
| Plug lock: |
Screw connection |
| Insertion Cycles: |
100 |
| Turn-on time: |
max. 80 ms |
| Risk time according to EN 60947-5-3: |
max. 50 ms |
| Risk time according to EN 60947-5-3, extension for each additional device: |
max. 10 ms |
| Safety Class: |
III |
| Degree of contamination (external, according to EN 60947-1): |
3 |
| Output Type: |
Semiconductor outputs, p-switching, short circuit-proof |
| Test Pulse Duration: |
max. 5 ms |
| Test Pulse Interval: |
min. 100 ms |
| Ready Delay: |
5 s |
| Switching frequency: |
0.25 Hz |
| Shock And Vibration Resistance: |
Acc. to EN IEC 60947-5-3 |
| Switching voltage: |
5 … 24 V |
| Rated impulse withstand voltage Uimp: |
1.5 kV |
| Transponder coding: |
Unicode |
| Breaking capacity: |
max. 0.25 W |
| LED Power Supply: |
24 V DC |
| Locking force FZh: |
2000 N |
| Guard locking principle: |
Open-circuit current principle |
| Color: |
black |
| Submodulbreite: |
1 |
| Slotkonfiguration: |
1 |
